Baldor EWDM3558T - 2 HP, 1760RPM, 3 Phase, 60HZ, 143T, 3528M, TEFC, F1 60HZ Three Phase 2 HP 3528 M Cable

Save $492.25
BaldorSKU: EWDM3558T

Price:
Sale price$1,476.75 Regular price$1,969.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

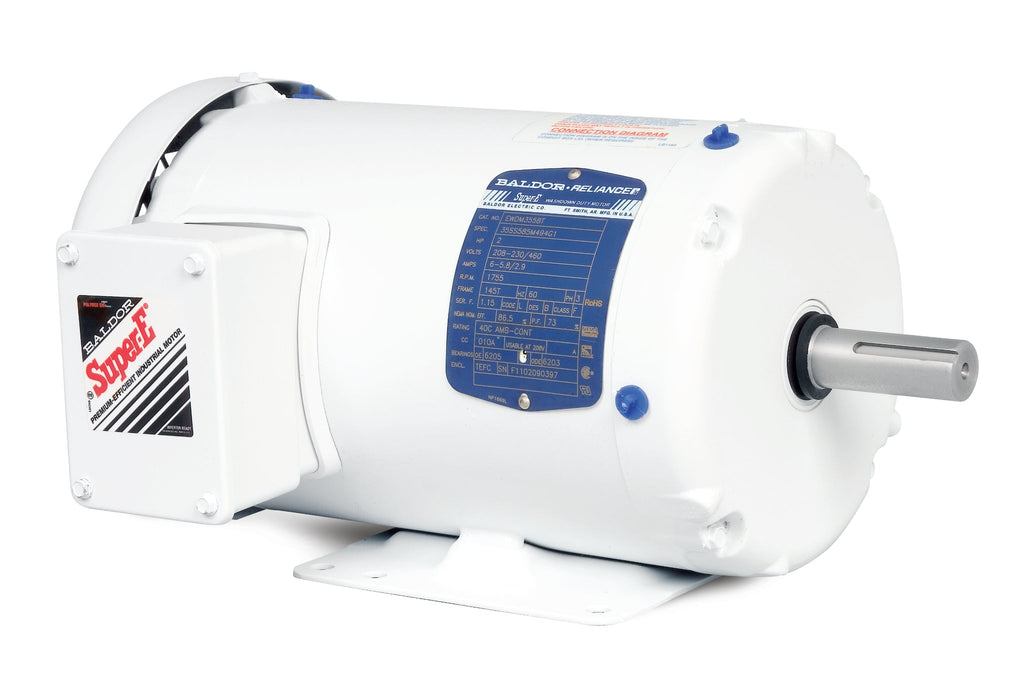

Baldor EWDM3558T - 2 HP White Washdown Motor

The Baldor EWDM3558T is a high-performance 2 HP White Washdown Motor designed for demanding applications. Operating at 1760 RPM, this robust motor is engineered for 3-phase power and operates efficiently at 60Hz. With a frame size of 143T and a TEFC (Totally Enclosed Fan Cooled) design, it ensures durability and protection against harsh environments, making it ideal for washdown applications.

Key Features:

  • Power: 2 HP
  • Speed: 1760 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 143T
  • TEFC Design for enhanced protection
  • Product Code: EWDM3558T

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EWDM3558T to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568457542
Supplier Part Number EWDM3558T
Category AC Motors
Subcategory White Washdown Motors
Product Family Wash Down
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 46.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EWDM3558T
Current @ Voltage 5.600 A @ 230.0 V, 5.800 A @ 208.0 V, 2.800 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 86.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 143T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.8 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3528M
Mounting Arrangement F1
Number of Poles 4
Output 2.000 hp
Output @ Frequency 2.000 HP @ 60 HZ
Overall Length 13.29 IN
Phase 3
Power Factor 77
Pulley End Bearing Type Sealed Bearing
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1760 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
