Baldor EWDM23933T - 15 HP, 1765RPM, 3 Phase, 60HZ, 254T, 3942M, TEFC, F1 60HZ Three Phase 15 HP 3942 M Cable

Save $2,057.00
BaldorSKU: EWDM23933T

Price:
Sale price$6,171.00 Regular price$8,228.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

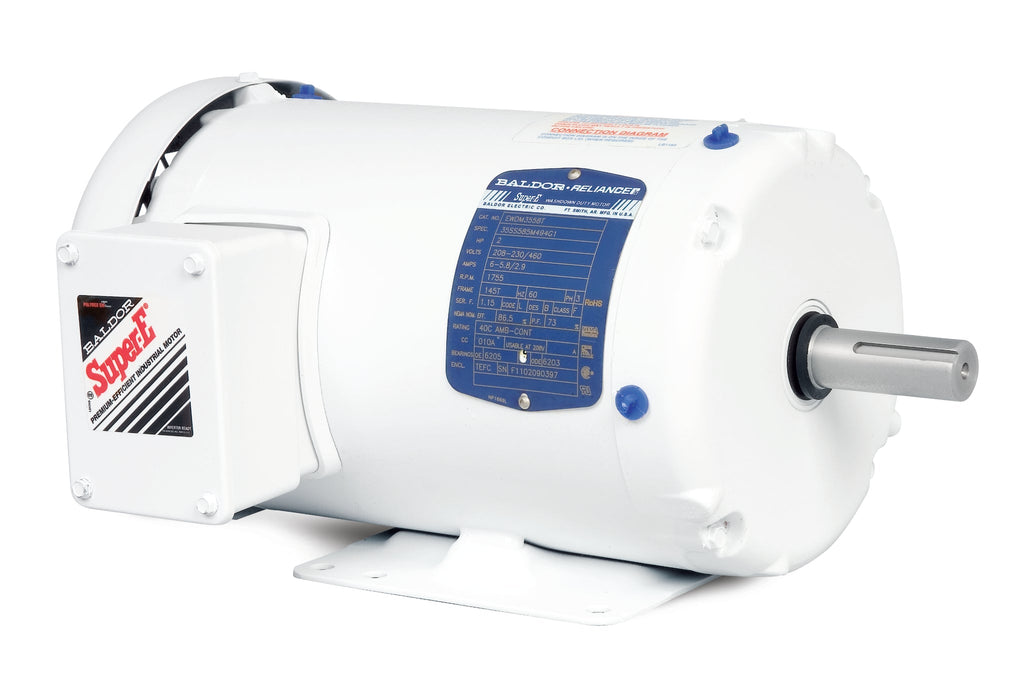

Baldor EWDM23933T - 15 HP White Washdown Motor

Upgrade your pumping system with the Baldor EWDM23933T, a high-performance 15 HP White Washdown Motor designed for durability and efficiency. Operating at 1765 RPM, this 3-phase motor is perfect for demanding applications in wet environments, thanks to its Totally Enclosed Fan Cooled (TEFC) design.

Specifications:

  • Power: 15 HP
  • Speed: 1765 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 254T
  • Model: 3942M
  • Type: White Washdown Motor

This motor is ideal for applications requiring reliable performance in harsh conditions, making it a top choice for industries that prioritize cleanliness and safety.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EWDM23933T to ensure compatibility. If you’re having trouble finding the right item, our team is here to help!

UPC 781568746332
Supplier Part Number EWDM23933T
Category AC Motors
Subcategory White Washdown Motors
Product Family Wash Down
Agency Approvals NEMA_PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 248.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EWDM23933T
Current @ Voltage 18.000 A @ 460.0 V, 36.000 A @ 230.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 92.4 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 254T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 18.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3942M
Mounting Arrangement F1
Number of Poles 4
Output 15.000 hp
Output @ Frequency 15.000 HP @ 60 HZ
Overall Length 23.57 IN
Phase 3
Power Factor 84
Pulley End Bearing Type Sealed Bearing
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
