Baldor ERM3158TA - 3 HP, 3450RPM, 3 Phase, 60HZ, 56HZ, 3530M, Open, F1 60HZ 56HZ Three Phase 3 HP 3530 M Cable

Save $328.00
BaldorSKU: ERM3158TA

Price:
Sale price$984.00 Regular price$1,312.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

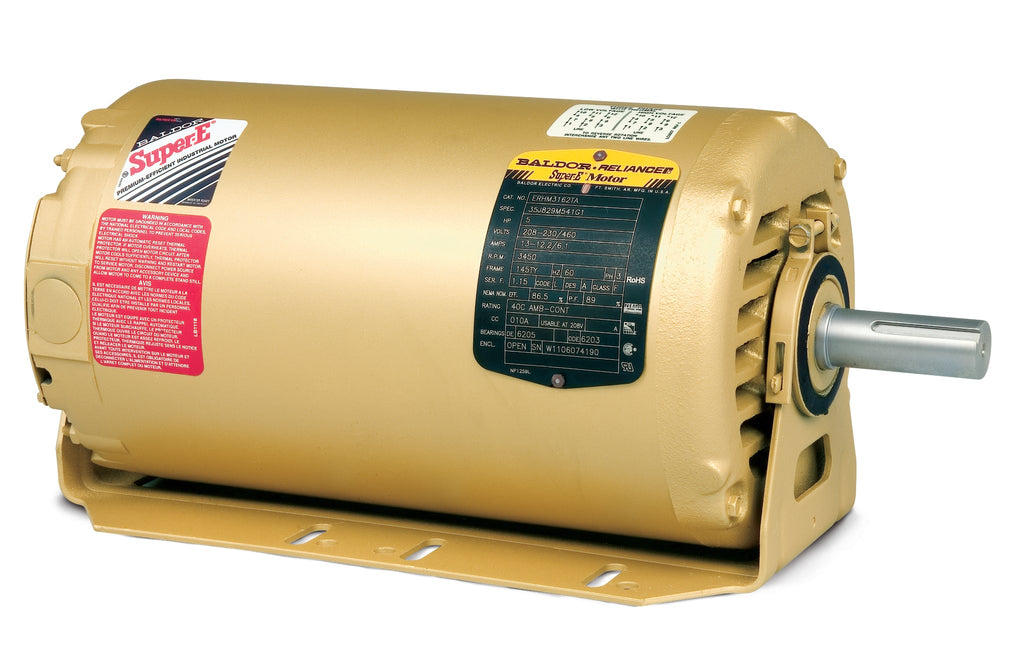

Baldor ERM3158TA - 3 HP Fan and Blower Motor

The Baldor ERM3158TA is a high-performance fan and blower motor designed for reliable operation in various industrial applications. With a robust 3 HP power rating and a speed of 3450 RPM, this three-phase motor operates efficiently at both 60HZ and 56HZ frequencies. Its open design (3530M) ensures optimal airflow, making it an ideal choice for ventilation and cooling systems.

Key Features:

  • Power: 3 HP
  • Speed: 3450 RPM
  • Phase: 3 Phase
  • Frequency: 60HZ / 56HZ
  • Design: Open (3530M)
  • Product Code: ERM3158TA

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor ERM3158TA to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is here to help!

UPC 781568540107
Supplier Part Number ERM3158TA
Category AC Motors
Subcategory Fan and Blower Motors
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 48.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Resilient
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ERM3158TA
Current @ Voltage 7.600 A @ 230.0 V, 8.000 A @ 208.0 V, 3.800 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 85.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPEN
Feedback Device NO FEEDBACK
Frame 143TY
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Terminal Panel
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 3.8 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Terminal Panel
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3530M
Mounting Arrangement F1
Number of Poles 2
Output 3.000 hp
Output @ Frequency 3.000 HP @ 60 HZ
Overall Length 13.63 IN
Phase 3
Power Factor 87
Pulley End Bearing Type Ball
Pulley Face Code Resilient Mount
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Do Not Use Eve-Not Valiid
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
