Baldor EM7566T-I - 60 HP, 1800RPM, 3 Phase, 60HZ, 364T, Fcxp, F1 60HZ Three Phase 60 HP

Save $3,291.00
BaldorSKU: EM7566T-I

Price:
Sale price$9,873.00 Regular price$13,164.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

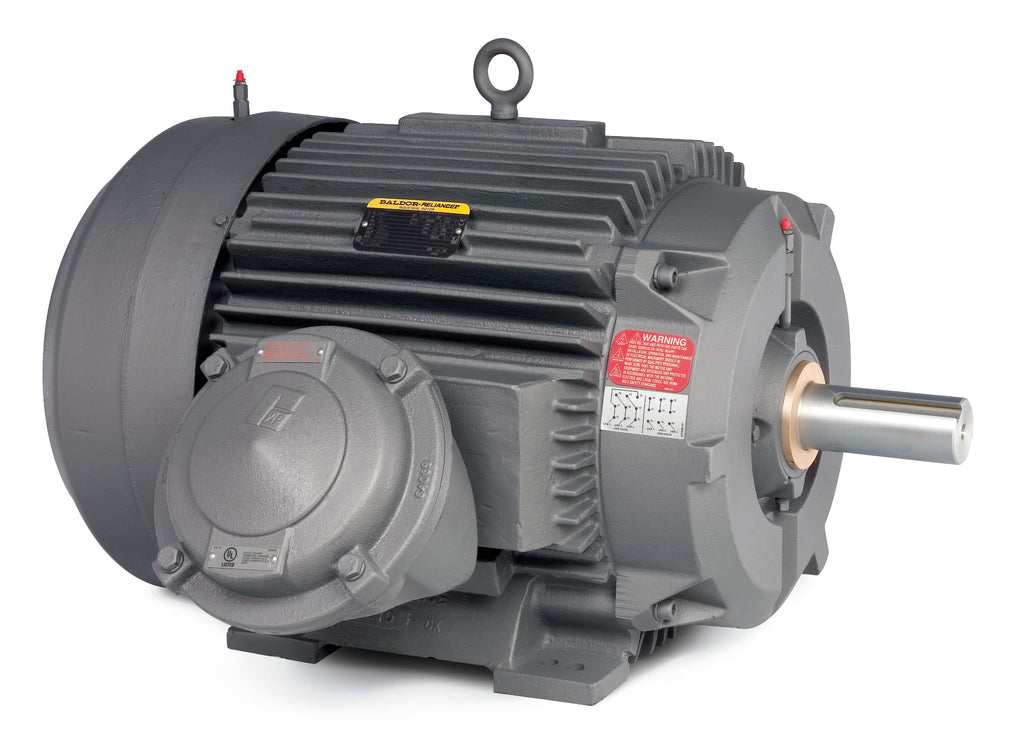

Baldor EM7566T-I - 60 HP Explosion Proof Severe Duty Motor

The Baldor EM7566T-I is a high-performance 60 HP explosion proof severe duty motor designed for demanding industrial applications. Operating at 1800 RPM, this robust 3-phase motor is engineered to withstand harsh environments while delivering reliable performance. With a frequency of 60HZ and a frame size of 364T, this motor is ideal for use in various pump systems and heavy-duty machinery.

Key Features:

  • Power: 60 HP
  • Speed: 1800 RPM
  • Phase: 3 Phase
  • Frequency: 60HZ
  • Frame Size: 364T
  • Type: Explosion Proof Severe Duty
  • Product Code: EM7566T-I

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EM7566T-I to ensure compatibility. If you encounter any difficulties, our knowledgeable team is here to help you find the right item.

UPC 781568604724
Supplier Part Number EM7566T-I
Category AC Motors
Subcategory Explosion Proof Severe Duty Motors
Product Family Other
Agency Approvals CCSAUSEEV, CSA, UL
Ambient Temperature 40 °C
Approximate Weight (lbs) 1023.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number EM7566T-I
Current @ Voltage 136.000 A @ 230.0 V, 67.800 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 95.0 %
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 364T
Frame Material Cast Iron
Frequency 60.00 Hz
Haz Area Class and Group Class I, Group D; Class II, Group E,F & G
Haz Area Division Division I
Haz Area Temp Code T3C
Heater Indicator No Heater
High Voltage Full Load Amps 67.8 a
Insulation Class B
Inverter Code Not Inverter
KVA Code G
Lifting Lugs Standard Lifting Lugs
Motor Lead Quantity/Wire Size 3 @ 4 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A36062M
Mounting Arrangement F1
Number of Poles 4
Output 60.000 hp
Output @ Frequency 60.000 HP @ 60 HZ
Overall Length 33.44 IN
Phase 3
Power Factor 87
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 2.374 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Speed 1780 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
