Baldor EM74204T-4 - 200//150HP, 1785//1485RPM, 3 Phase, 60//50HZ, 44 50HZ Three Phase 150 HP

Save $8,202.00
BaldorSKU: EM74204T-4

Price:
Sale price$24,606.00 Regular price$32,808.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

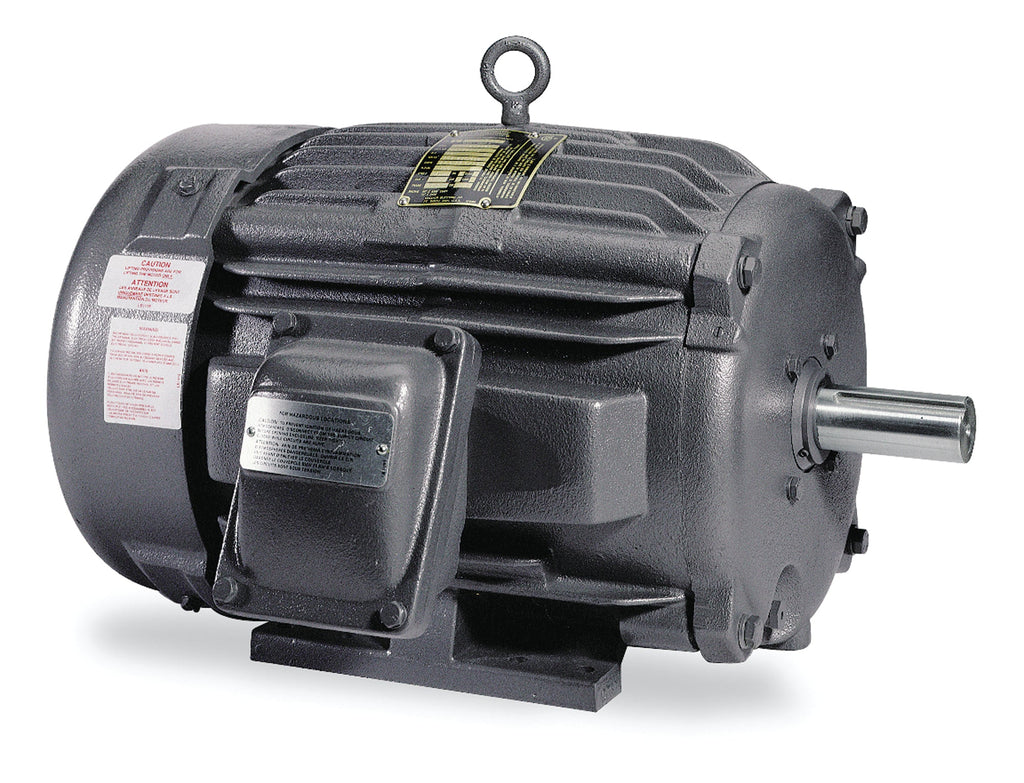

Baldor EM74204T-4 Explosion Proof General Purpose Motor

The Baldor EM74204T-4 is a robust explosion-proof general-purpose motor designed for demanding applications. With a power rating of 200/150 HP and operating speeds of 1785/1485 RPM, this 3-phase motor is suitable for both 60Hz and 50Hz environments, making it versatile for various industrial settings.

Key Features:

  • Power: 200/150 HP
  • Speed: 1785/1485 RPM
  • Phase: 3 Phase
  • Frequency: 60/50 Hz
  • Product Code: EM74204T-4

This motor is ideal for applications requiring reliable performance in hazardous locations, ensuring safety and efficiency. At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts, including high-quality motors like the Baldor EM74204T-4.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568546574
Supplier Part Number EM74204T-4
Category AC Motors
Subcategory Explosion Proof General Purpose Motors
Product Family General Industrial
Agency Approvals UL, CSA, CCSAUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 3000.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number EM74204T-4
Current @ Voltage 197.000 A @ 380.0 V, 216.000 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 96.2 %
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 449T
Frame Material Cast Iron
Frequency 50.00 Hz, 60.00 Hz
Haz Area Class and Group Class I, Group C & D; Class II, Group F & G
Haz Area Division Division I
Haz Area Temp Code T4
Heater Indicator No Heater
High Voltage Full Load Amps 197.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code F
Lifting Lugs Standard Lifting Lugs
Motor Lead Quantity/Wire Size 6 @ 1/0 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A44144M
Mounting Arrangement F1
Number of Poles 4
Output 150.000 hp @ 50 Hz, 200.000 hp @ 60 Hz
Output @ Frequency 200.000 HP @ 60 HZ, 150.000 HP @ 50 HZ
Overall Length 48.22 IN
Phase 3
Power Factor 90
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1
Shaft Diameter 3.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1485 rpm, 1785 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,500 rpm
Synchronous Speed @ Frequency 1500 RPM @ 50 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Voltage 380 V @ 50 Hz, 460 V @ 60 Hz
Voltage @ Frequency 380.0 V @ 50 HZ, 460.0 V @ 60 HZ

Motor Curves
