Baldor EM44206T-4 - 200 HP, 1190RPM, 3 Phase, 60HZ, 449T, A44160M, TEFC 60HZ Three Phase Three Phase 200 HP

Save $11,870.75
BaldorSKU: EM44206T-4

Price:
Sale price$35,612.25 Regular price$47,483.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

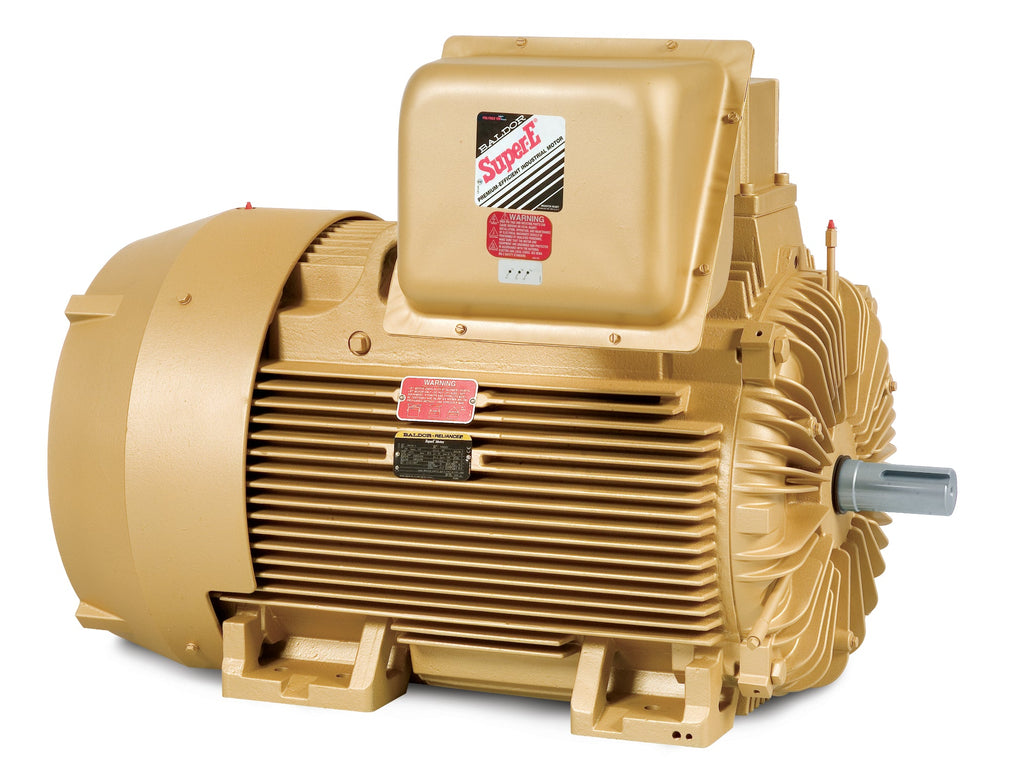

Baldor EM44206T-4 - 200 HP Three Phase Enclosed Motor

The Baldor EM44206T-4 is a high-performance three-phase enclosed motor designed for demanding applications. With a robust power output of 200 HP and a speed of 1190 RPM, this motor is ideal for various industrial uses. Operating at 60Hz, it features a 449T frame size and is built with a Totally Enclosed Fan Cooled (TEFC) design, ensuring durability and reliability in challenging environments.

Key Specifications:

  • Power: 200 HP
  • Speed: 1190 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 449T
  • Product Code: EM44206T-4

As a trusted supplier, Pump-Stop is your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568546543
Supplier Part Number EM44206T-4
Category AC Motors
Subcategory Three Phase Enclosed
Agency Approvals CURUSEEV, CCSAUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 3017.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number EM44206T-4
Current @ Voltage 225.000 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 95.8 %
Enclosure TEFC
Enclosure Modification Severe Duty Features
Feedback Device NO FEEDBACK
Frame 449T
Frame Material Cast Iron
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 225.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code G
Lifting Lugs No Lifting Lugs
Motor Lead Quantity/Wire Size 6 @ 1 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A44160M
Mounting Arrangement F1
Number of Poles 6
Output 200.000 hp
Output @ Frequency 200.000 HP @ 60 HZ
Overall Length 53.24 IN
Phase 3
Power Factor 87
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 3.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1190 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ
