Baldor EM4406TS-4 - 150 HP, 1785RPM, 3 Phase, 60HZ, 445TS, A4488M, TEFC 60HZ Three Phase Three Phase 150 HP

Save $7,592.25
BaldorSKU: EM4406TS-4

Price:
Sale price$22,776.75 Regular price$30,369.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

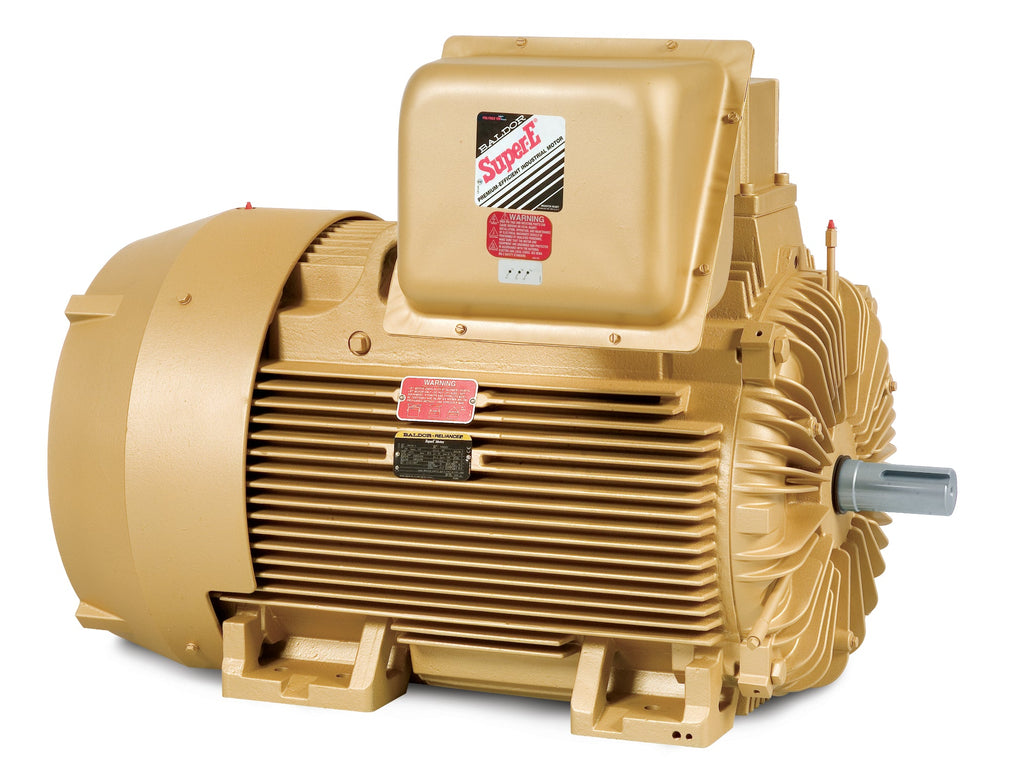

Baldor EM4406TS-4 - 150 HP Three Phase Enclosed Motor

The Baldor EM4406TS-4 is a high-performance three-phase enclosed motor designed for demanding applications. With a robust power output of 150 HP and a speed of 1785 RPM, this motor is ideal for various industrial uses. Operating at 60Hz, it features a 445TS frame size and is built to last with a Totally Enclosed Fan Cooled (TEFC) design, ensuring durability and reliability in challenging environments.

Key Specifications:

  • Power: 150 HP
  • Speed: 1785 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 445TS
  • Product Code: EM4406TS-4

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EM4406TS-4 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568604526
Supplier Part Number EM4406TS-4
Category AC Motors
Subcategory Three Phase Enclosed
Product Family Other
Agency Approvals CCSAUSEEV, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 2071.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number EM4406TS-4
Current @ Voltage 169.000 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 95.8 %
Enclosure TEFC
Enclosure Modification Severe Duty Features
Feedback Device NO FEEDBACK
Frame 445TS
Frame Material Cast Iron
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 169.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code F
Lifting Lugs Standard Lifting Lugs
Motor Lead Quantity/Wire Size 3 @ 1/0 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A4488M
Mounting Arrangement F1
Number of Poles 4
Output 150.000 hp
Output @ Frequency 150.000 HP @ 60 HZ
Overall Length 41.08 IN
Phase 3
Power Factor 86
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 2.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1785 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ

Motor Curves
