Baldor EM4400T-G - 100 HP, 1785RPM, 3 Phase, 60HZ, 405T, A40064M, TEFC 60HZ Three Phase 100 HP

Save $5,826.00
BaldorSKU: EM4400T-G

Price:
Sale price$17,478.00 Regular price$23,304.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

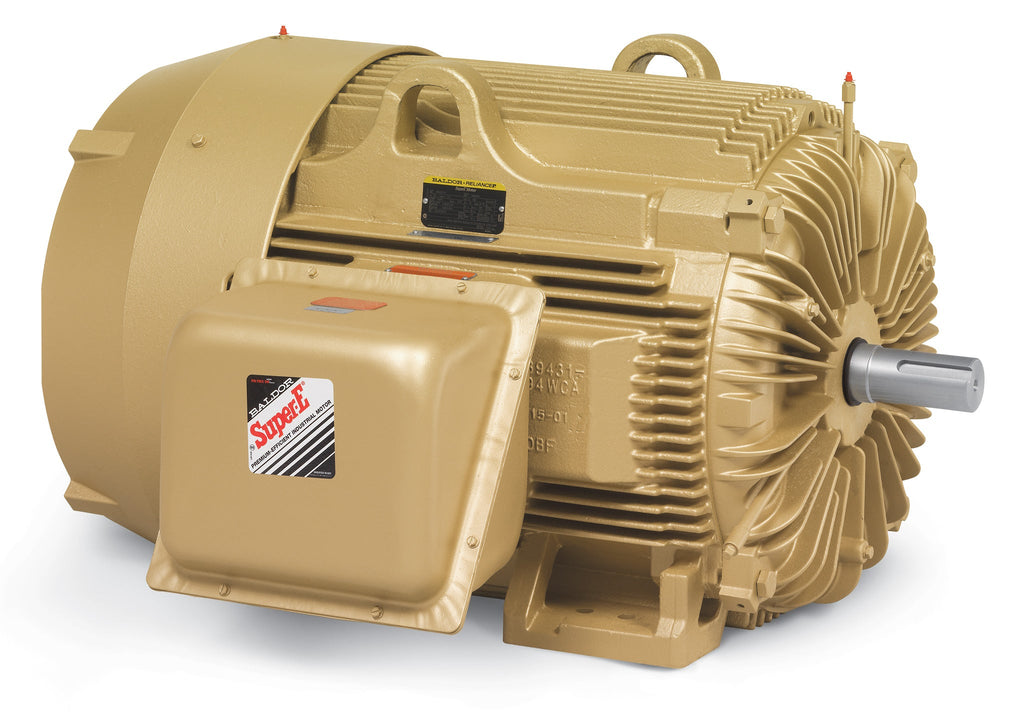

Baldor EM4400T-G Super-E Motor

Upgrade your industrial applications with the Baldor EM4400T-G, a high-performance 100 HP motor designed for efficiency and reliability. Operating at 1785 RPM, this 3-phase motor is optimized for 60Hz power supply, making it an ideal choice for various pump and machinery applications.

Key Features:

  • Power: 100 HP
  • Speed: 1785 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 405T
  • Type: TEFC (Totally Enclosed Fan Cooled)
  • Model Number: A40064M

This Baldor-Reliance Super-E motor is equipped with a Baldor-Reliance shaft grounding brush, ensuring enhanced performance and longevity. It is perfect for those looking to replace or upgrade their existing motors with a reliable and efficient solution.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EM4400T-G to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568664841
Supplier Part Number EM4400T-G
Category AC Motors
Subcategory Super-E motor with Baldor-Reliance shaft grounding brush
Product Family General Industrial
Agency Approvals CURUSEEV, CCSAUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 1310.001
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number EM4400T-G
Current @ Voltage 246.000 A @ 208.0 V, 224.000 A @ 230.0 V, 206.000 A @ 190.0 V, 112.000 A @ 460.0 V, 103.000 A @ 380.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 95.4 %
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 405T
Frame Material Cast Iron
Frequency 50.00 Hz, 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 103.0 a
Insulation Class H
Inverter Code Inverter Ready
KVA Code G
Lifting Lugs Standard Lifting Lugs
Motor Lead Quantity/Wire Size 3 @ 2 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A40064M
Mounting Arrangement F1
Number of Poles 4
Output 75.000 hp @ 50 Hz, 100.000 hp @ 60 Hz
Output @ Frequency 100.000 HP @ 60 HZ, 75.000 HP @ 50 HZ
Overall Length 38.04 IN
Phase 3
Power Factor 87
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 2.875 IN
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1485 rpm, 1785 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,500 rpm
Synchronous Speed @ Frequency 1500 RPM @ 50 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 190 V @ 50 Hz, 380 V @ 50 Hz, 230 V @ 60 Hz, 460 V @ 60 Hz
Voltage @ Frequency 230.0 V @ 60 HZ, 190.0 V @ 50 HZ, 380.0 V @ 50 HZ, 460.0 V @ 60 HZ
