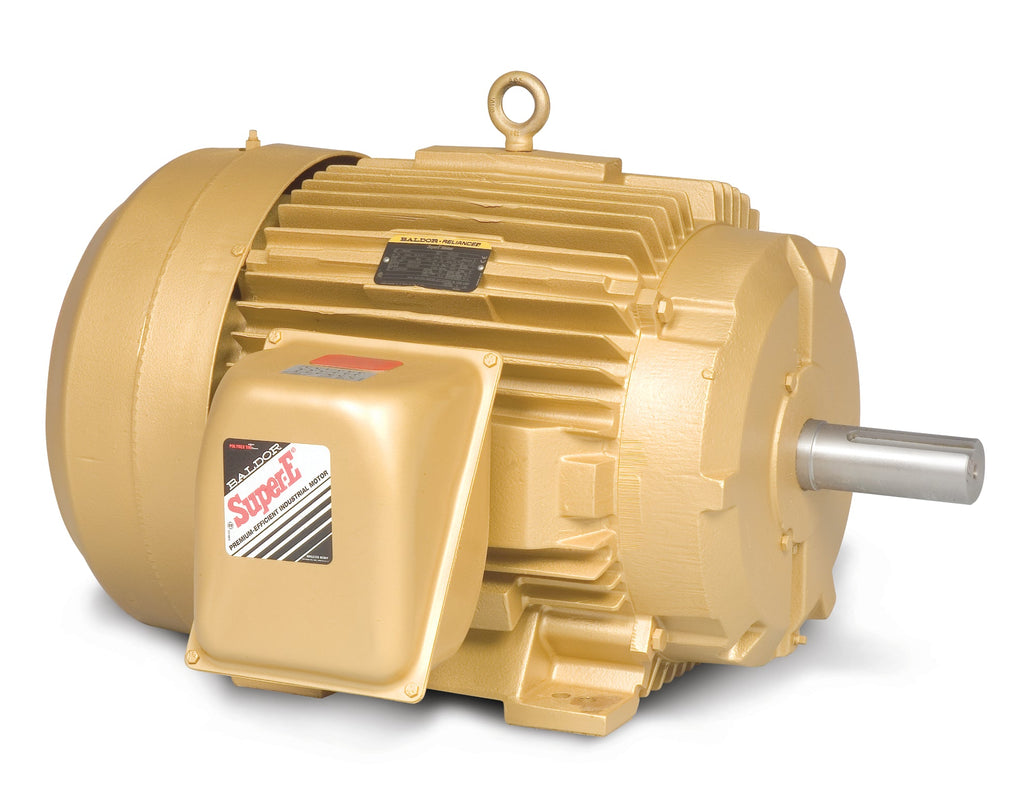

Image shown may not be actual product
Baldor EM4316TS - 75HP, 1780RPM, 3PH, 60HZ, 365TS, A36070M, TEFC - Three Phase Enclosed
Roll over image to zoom in Click on image to zoom
Baldor EM4316TS - 75HP, 1780RPM, 3PH, 60HZ, 365TS, A36070M, TEFC - Three Phase Enclosed
Baldor Electric Motors

Baldor EM4316TS - 75 HP, 1780RPM, 3 Phase, 60HZ, 365TS, A36070M, TEFC 60HZ Three Phase Three Phase 75 HP

BaldorSKU: EM4316TS
Price:
$12,879.75

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

Baldor Replacement Part — Component

The Baldor EM4316TS for Baldor pump systems.

Part Specifications
Part Number EM4316TS
Brand Baldor
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
Need help confirming compatibility or finding the right part? Contact PumpStop — chat or call (781) 281-8905.
UPC
781568615508
Supplier Part Number
EM4316TS
Category
AC Motors
Subcategory
Three Phase Enclosed
Product Family
Other
Agency Approvals
CCSAUSEEV, CURUSEEV, NEMA PREMIUM, NEMA_PREMIUM
Ambient Temperature
40 °C
Approximate Weight (lbs)
946.0
Auxillary Box
No Auxillary Box
Base Indicator
Rigid
Bearing Grease Type
Polyrex EM (-20F +300F)
Catalog Number
EM4316TS
Current @ Voltage
86.000 A @ 460.0 V, 188.000 A @ 208.0 V, 172.000 A @ 230.0 V
Design Code
B
Drip Cover
No Drip Cover
Duty Rating
CONT
Efficiency @ 100% Load
95.4 %
Enclosure
TEFC
Feedback Device
NO FEEDBACK
Frame
365TS
Frame Material
Iron
Frequency
60.00 Hz
Haz Area Class and Group
NONE
Haz Area Division
Not Applicable
Heater Indicator
No Heater
High Voltage Full Load Amps
86.0 a
Insulation Class
F
Inverter Code
Inverter Ready
KVA Code
G
Lifting Lugs
No Lifting Lugs
Max Speed
2700 rpm
Motor Lead Quantity/Wire Size
3 @ 4 AWG
Motor Letter Type
Three Phase
Motor Standards
NEMA
Motor Type
A36070M
Mounting Arrangement
F1
Number of Poles
4
Output
75.000 hp
Output @ Frequency
75.000 HP @ 60 HZ
Overall Length
31.36 IN
Phase
3
Power Factor
86
Pulley End Bearing Type
Ball
Pulley Face Code
Standard
Service Factor
1.15
Shaft Diameter
1.875 IN
Shaft Ground Indicator
No Shaft Grounding
Shaft Rotation
Reversible
Shaft Slinger Indicator
Shaft Slinger
Speed
1780 rpm
Speed Code
Single Speed
Starting Method
Direct on line
Synchronous Speed
1,800 rpm
Synchronous Speed @ Frequency
1800 RPM @ 60 HZ
Thermal Device - Bearing
None
Thermal Device - Winding
None
Voltage
230 V, 460 V
Voltage @ Frequency
230.0 V @ 60 HZ, 460.0 V @ 60 HZ
