Baldor EM4312T - 50 HP, 1185RPM, 3 Phase, 60HZ, 365T, A3668M, TEFC, F 60HZ Three Phase Three Phase 50 HP

Save $4,185.50
BaldorSKU: EM4312T

Price:
Sale price$12,556.50 Regular price$16,742.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

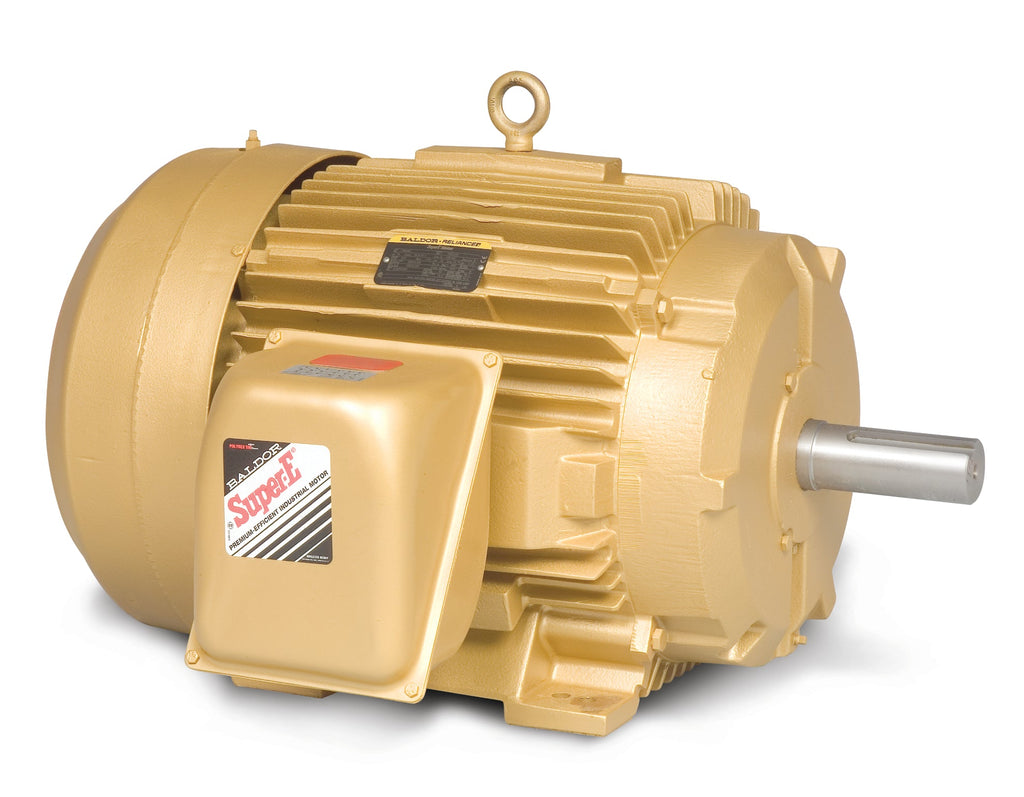

Baldor EM4312T - 50 HP Three Phase Enclosed Motor

The Baldor EM4312T is a high-performance three-phase enclosed motor designed for reliable operation in various industrial applications. With a robust 50 HP power rating and a speed of 1185 RPM, this motor is engineered to deliver exceptional efficiency and durability. It operates at 60Hz and features a 365T frame size, making it suitable for a wide range of pump and machinery applications.

Key Features:

  • Power: 50 HP
  • Speed: 1185 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 365T
  • Type: Totally Enclosed Fan Cooled (TEFC)
  • Product Code: EM4312T

As a trusted supplier, Pump-Stop is your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568103487
Supplier Part Number EM4312T
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Industrial
Agency Approvals NEMA PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 840.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number EM4312T
Current @ Voltage 124.000 A @ 230.0 V, 132.000 A @ 208.0 V, 62.000 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.1 %
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 365T
Frame Material Iron
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 62.0 a
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code G
Lifting Lugs Standard Lifting Lugs
Max Speed 1800 rpm
Motor Lead Quantity/Wire Size 3 @ 4 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A3668M
Mounting Arrangement F1
Number of Poles 6
Output 50.000 hp
Output @ Frequency 50.000 HP @ 60 HZ
Overall Length 33.48 IN
Phase 3
Power Factor 81
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 2.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1185 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ

Motor Curves
