Baldor EM4310T-G - 60 HP, 3560RPM, 3 Phase, 60HZ, 364TS, A36056M, TEFC 60HZ Three Phase 60 HP

Save $4,052.00
BaldorSKU: EM4310T-G

Price:
Sale price$12,156.00 Regular price$16,208.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

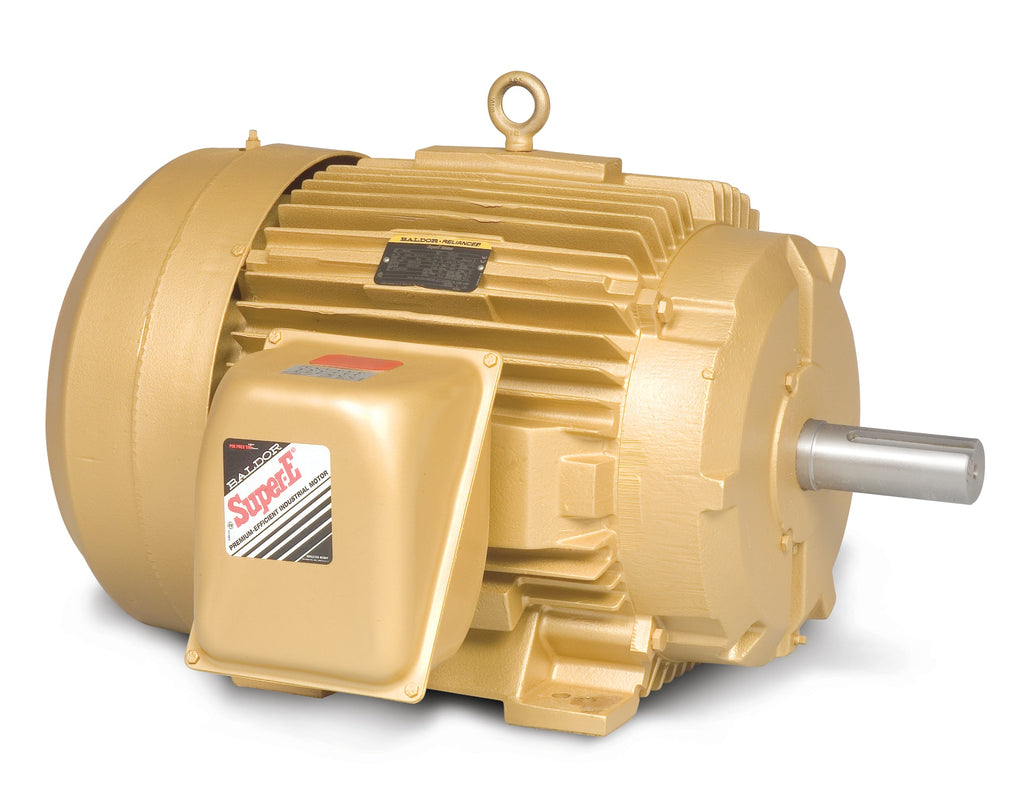

Baldor EM4310T-G - 60 HP Super-E Motor

Discover the power and efficiency of the Baldor EM4310T-G, a high-performance 60 HP Super-E motor designed for demanding applications. Operating at 3560 RPM, this robust 3-phase motor is engineered for reliability and durability, making it an ideal choice for various industrial settings.

Key Features:

  • Power: 60 HP
  • Speed: 3560 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 364TS
  • Type: Totally Enclosed Fan Cooled (TEFC)
  • Product Code: EM4310T-G
  • Includes Baldor-Reliance shaft grounding brush for enhanced performance

This Baldor-Reliance Super-E motor is not only efficient but also designed to minimize maintenance, ensuring long-lasting operation. Whether you are replacing an existing motor or upgrading your system, the EM4310T-G is a reliable choice.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568665305
Supplier Part Number EM4310T-G
Category AC Motors
Subcategory Super-E motor with Baldor-Reliance shaft grounding brush
Product Family General Industrial
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 900.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number EM4310T-G
Current @ Voltage 130.000 A @ 230.0 V, 143.000 A @ 208.0 V, 65.100 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.6 %
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 364TS
Frame Material Cast Iron
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 65.1 a
Insulation Class H
Inverter Code Inverter Duty
KVA Code G
Lifting Lugs Standard Lifting Lugs
Max Speed 4500 rpm
Motor Lead Quantity/Wire Size 3 @ 4 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A36056M
Mounting Arrangement F1
Number of Poles 2
Output 60.000 hp
Output @ Frequency 60.000 HP @ 60 HZ
Overall Length 31.36 IN
Phase 3
Power Factor 91
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 1.875 IN
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3560 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
