Baldor EM4308T - 40 HP, 1190RPM, 3 Phase, 60HZ, 364T, A36062M, TEFC 60HZ Three Phase Three Phase 40 HP

Save $3,463.75
BaldorSKU: EM4308T

Price:
Sale price$10,391.25 Regular price$13,855.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

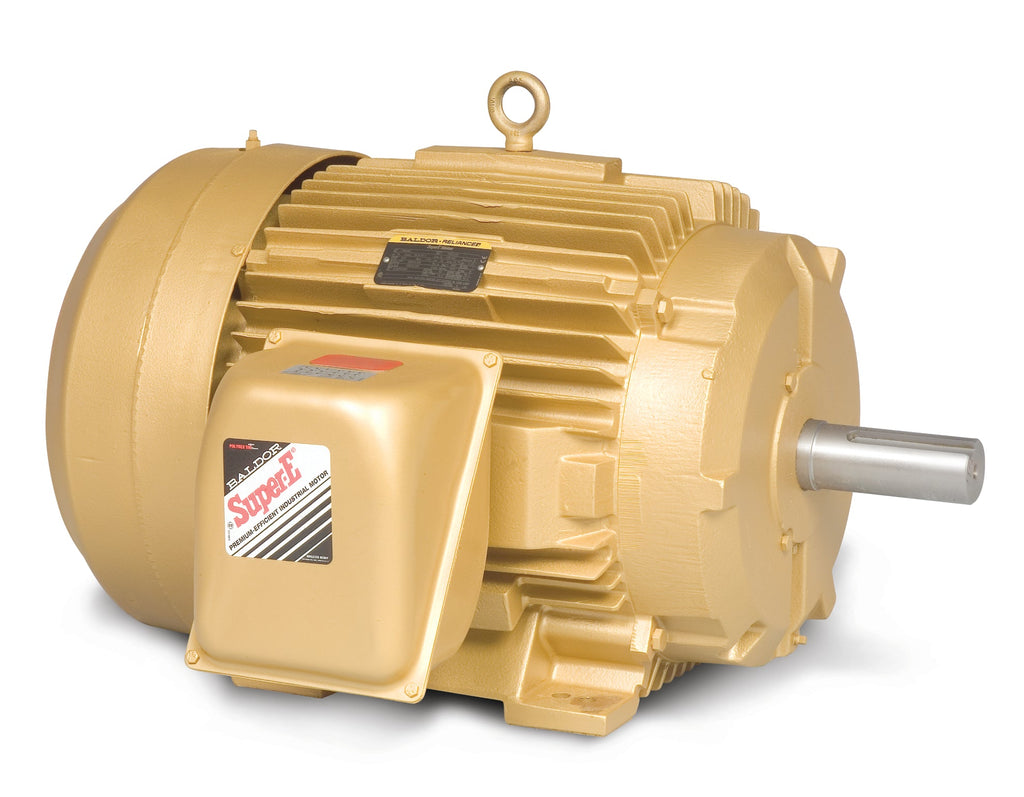

Baldor EM4308T - 40 HP Three Phase Enclosed Motor

Discover the power and reliability of the Baldor EM4308T, a high-performance three-phase enclosed motor designed for demanding applications. With a robust 40 HP output and a speed of 1190 RPM, this motor is engineered to deliver exceptional efficiency and durability.

Specifications:

  • Power: 40 HP
  • Speed: 1190 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 364T
  • Model Number: A36062M
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)

This Baldor-Reliance motor is ideal for a variety of industrial applications, providing reliable performance and longevity. As a trusted source for replacement pumps and parts, Pump-Stop.com is here to help you find the right motor for your needs. If you have questions or need assistance, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble finding the right item, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568103418
Supplier Part Number EM4308T
Category AC Motors
Subcategory Three Phase Enclosed
Agency Approvals CURUSEEV, NEMA_PREMIUM, CCSAUSEEV, CCSA US
Ambient Temperature 40 °C
Approximate Weight (lbs) 847.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number EM4308T
Current @ Voltage 107.000 A @ 208.0 V, 49.800 A @ 460.0 V, 99.600 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.1 %
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 364T
Frame Material Cast Iron
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 49.8 a
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code G
Lifting Lugs Standard Lifting Lugs
Max Speed 1800 rpm
Motor Lead Quantity/Wire Size 3 @ 4 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A36062M
Mounting Arrangement F1
Number of Poles 6
Output 40.000 hp
Output @ Frequency 40.000 HP @ 60 HZ
Overall Length 33.48 IN
Phase 3
Power Factor 80
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 2.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1190 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ

Motor Curves
