Baldor EM4111T - 25 HP, 1180RPM, 3 Phase, 60HZ, 324T, 1072M, TEFC, F1 60HZ Three Phase Three Phase 25 HP 1072 M Cable

Save $2,406.25
BaldorSKU: EM4111T

Price:
Sale price$7,218.75 Regular price$9,625.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

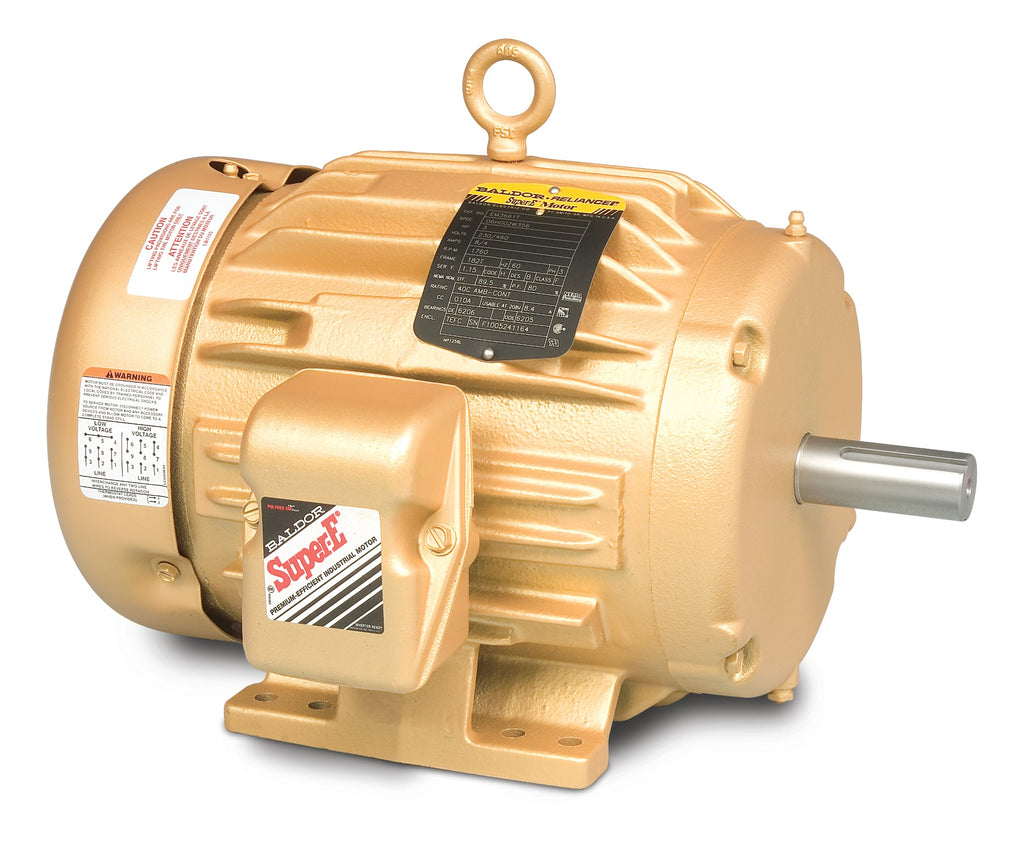

Baldor EM4111T - 25 HP Three Phase Enclosed Motor

The Baldor EM4111T is a robust and reliable three-phase enclosed motor designed for high-performance applications. With a power output of 25 HP and a speed of 1180 RPM, this motor is ideal for various industrial and commercial uses. Operating at 60Hz, it features a 324T frame and is built to last with a Totally Enclosed Fan Cooled (TEFC) design, ensuring durability and efficiency in demanding environments.

Key Specifications:

  • Power: 25 HP
  • Speed: 1180 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 324T
  • Enclosure Type: TEFC
  • Product Code: EM4111T

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EM4111T to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is here to help!

UPC 781568103258
Supplier Part Number EM4111T
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 493.999
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EM4111T
Current @ Voltage 64.000 A @ 230.0 V, 70.000 A @ 208.0 V, 32.000 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 324T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 32.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 10 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1072M
Mounting Arrangement F1
Number of Poles 6
Output 25.000 hp
Output @ Frequency 25.000 HP @ 60 HZ
Overall Length 30.44 IN
Phase 3
Power Factor 79
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 2.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1180 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
