Baldor EM4110T-58 - 40 HP, 1470RPM, 3 Phase, 50HZ, 324T, 1272M, TEFC, F1 50HZ Three Phase Three Phase 40 HP 1272 M Cable

Save $2,545.75
BaldorSKU: EM4110T-58

Price:
Sale price$7,637.25 Regular price$10,183.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

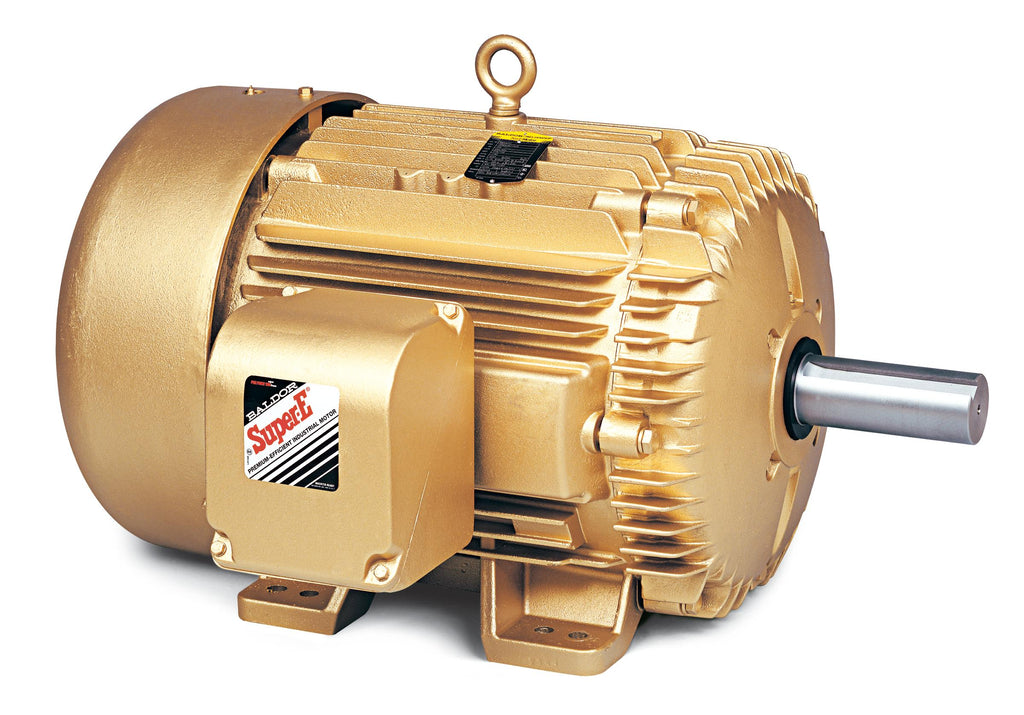

Baldor EM4110T-58 - 40 HP Three Phase Enclosed Motor

Upgrade your industrial applications with the Baldor EM4110T-58, a robust 40 HP, 1470 RPM three-phase motor designed for efficiency and reliability. Operating at 50HZ, this motor features a 324T frame and is built with a Totally Enclosed Fan Cooled (TEFC) design, ensuring optimal performance in various environments.

Key Specifications:

  • Power: 40 HP
  • Speed: 1470 RPM
  • Phase: 3 Phase
  • Frequency: 50HZ
  • Frame Size: 324T
  • Enclosure Type: TEFC
  • Product Code: EM4110T-58

This Baldor-Reliance motor is ideal for applications requiring a durable and efficient power source. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs. If you have questions or need assistance in locating the correct pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in finding the right item, our team is here to help!

UPC 781568773741
Supplier Part Number EM4110T-58
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Purpose
Agency Approvals CE, CSA, CURUS, UKCA, UR, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 650.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EM4110T-58
Current @ Voltage 52.000 A @ 400.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.6 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 324T
Frame Material Cast Iron
Frequency 50.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 52.0 a
Insulation Class F
Inverter Code Not Inverter
IP Rating NONE
KVA Code F
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 8 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1272M
Mounting Arrangement F1
Number of Poles 4
Output 40.000 hp
Output @ Frequency 40.000 HP @ 50 HZ
Overall Length 30.28 IN
Phase 3
Power Factor 86
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 2.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1470 rpm
Speed Code Single Speed
Starting Method Wye Start - Delta Run
Synchronous Speed 1,500 rpm
Synchronous Speed @ Frequency 1500 RPM @ 50 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 400 V
Voltage @ Frequency 400.0 V @ 50 HZ
Winding Thermal 1 None
Winding Thermal 2 None
