Baldor EM4106T-5 - 20 HP, 3520RPM, 3 Phase, 60HZ, 256T, 0936M, TEFC, F1 60HZ Three Phase Three Phase 20 HP 0936 M Cable

Save $1,138.75
BaldorSKU: EM4106T-5

Price:
Sale price$3,416.25 Regular price$4,555.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

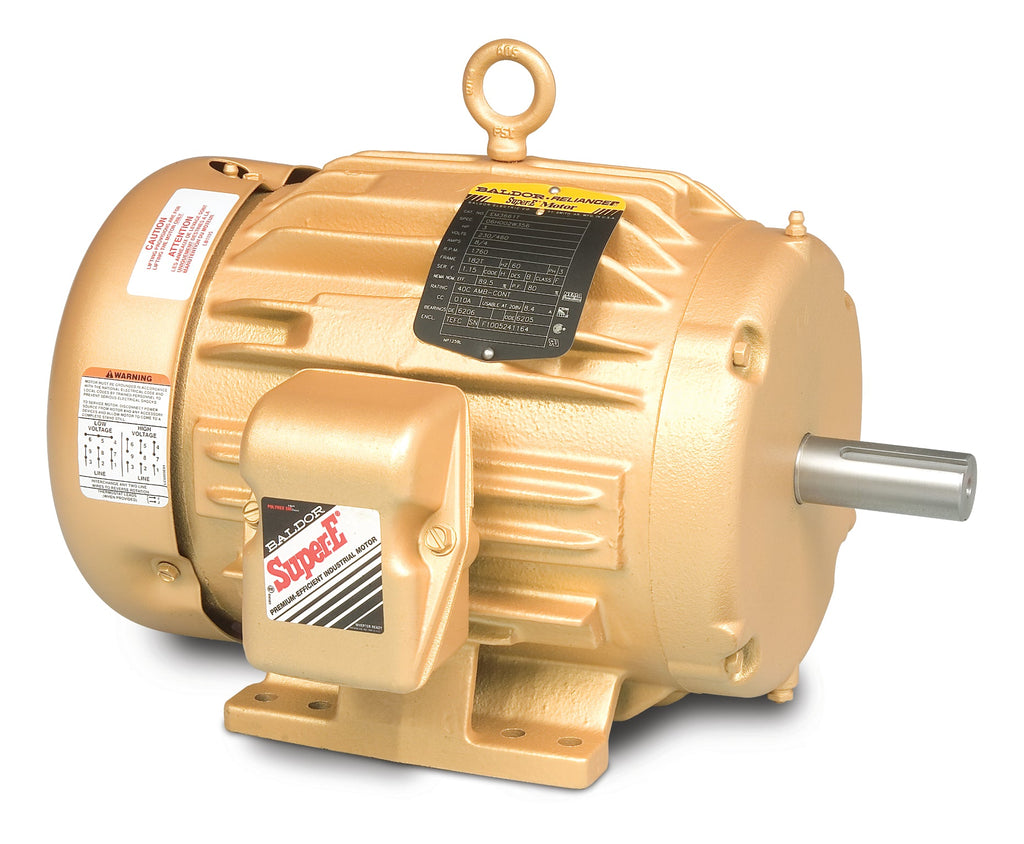

Baldor EM4106T-5 - 20 HP Three Phase Enclosed Motor

The Baldor EM4106T-5 is a high-performance three-phase enclosed motor designed for demanding applications. With a robust 20 HP power output and a speed of 3520 RPM, this motor is ideal for various industrial uses. Operating at 60Hz, it features a 256T frame and is built with a Totally Enclosed Fan Cooled (TEFC) design, ensuring durability and reliability in challenging environments.

Key Specifications:

  • Power: 20 HP
  • Speed: 3520 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 256T
  • Model: 0936M
  • Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: EM4106T-5

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EM4106T-5 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568139103
Supplier Part Number EM4106T-5
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Purpose
Agency Approvals NEMA_PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 252.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EM4106T-5
Current @ Voltage 18.000 A @ 575.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 256T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 18.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 3 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0936M
Mounting Arrangement F1
Number of Poles 2
Output 20.000 hp
Output @ Frequency 20.000 HP @ 60 HZ
Overall Length 23.36 IN
Phase 3
Power Factor 88
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3520 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 575 V
Voltage @ Frequency 575.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
