Baldor EM4104T-58 - 30 HP, 1470RPM, 3 Phase, 50HZ, 286T, 1064M, TEFC, F1 50HZ Three Phase Three Phase 30 HP 1064 M Cable

Save $1,946.75
BaldorSKU: EM4104T-58

Price:
Sale price$5,840.25 Regular price$7,787.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

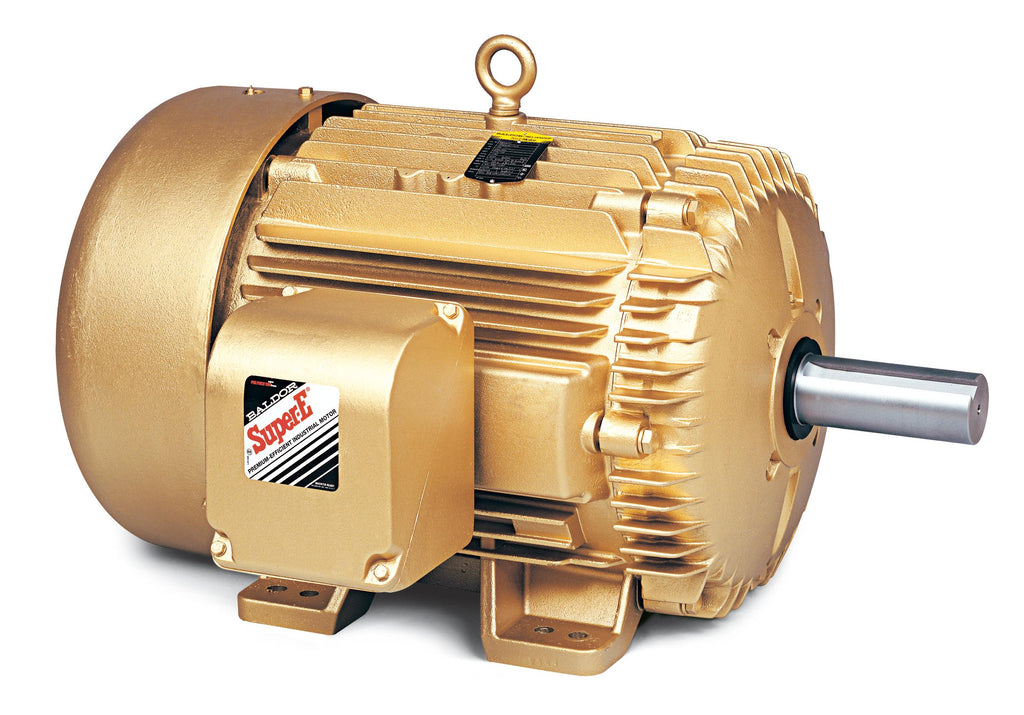

Baldor EM4104T-58 - 30 HP Three Phase Enclosed Motor

The Baldor EM4104T-58 is a high-performance three-phase enclosed motor designed for reliable operation in various industrial applications. With a robust 30 HP power rating and a speed of 1470 RPM, this motor is engineered to deliver exceptional efficiency and durability.

  • Power: 30 HP
  • Speed: 1470 RPM
  • Phase: 3 Phase
  • Frequency: 50 Hz
  • Frame Size: 286T
  • Insulation Class: 1064M
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Mounting: F1

This Baldor-Reliance motor is ideal for applications requiring a reliable and efficient power source. Its TEFC design ensures protection against dust and moisture, making it suitable for demanding environments.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EM4104T-58 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568773734
Supplier Part Number EM4104T-58
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Purpose
Agency Approvals CE, WEEE, UR, UKCA, IE3, CURUS, CSA
Ambient Temperature 40 °C
Approximate Weight (lbs) 541.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EM4104T-58
Current @ Voltage 43.000 A @ 400.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 286T
Frame Material Iron
Frequency 50.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 43.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 8 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1064M
Mounting Arrangement F1
Number of Poles 4
Output 30.000 hp
Output @ Frequency 30.000 HP @ 50 HZ
Overall Length 27.76 IN
Phase 3
Power Factor 81
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 1.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1470 rpm
Speed Code Single Speed
Starting Method Wye Start - Delta Run
Synchronous Speed 1,500 rpm
Synchronous Speed @ Frequency 1500 RPM @ 50 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 400 V
Voltage @ Frequency 400.0 V @ 50 HZ
Winding Thermal 1 None
Winding Thermal 2 None
