Baldor EM3711T-58 - 10 HP, 2900RPM, 3 Phase, 50HZ, 215T, 3740M, TEFC, F1 50HZ Three Phase Three Phase 10 HP 3740 M Cable

Save $706.75
BaldorSKU: EM3711T-58

Price:
Sale price$2,120.25 Regular price$2,827.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

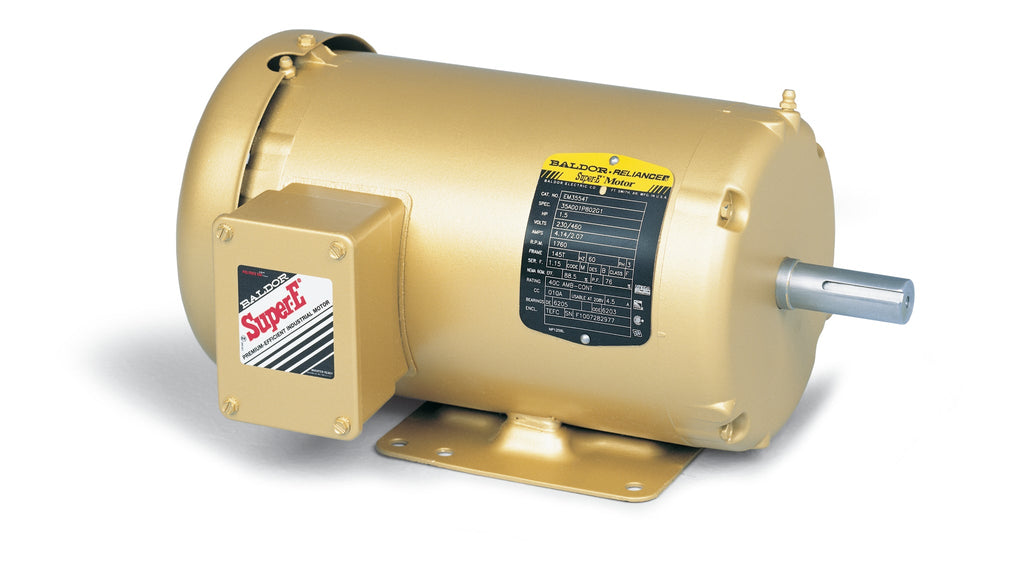

Baldor EM3711T-58 - 10 HP Three Phase Enclosed Motor

The Baldor EM3711T-58 is a high-performance 10 HP motor designed for three-phase applications. Operating at 2900 RPM and 50HZ, this motor is ideal for various industrial and commercial uses. With a robust TEFC (Totally Enclosed Fan Cooled) design, it ensures durability and reliability in demanding environments.

Specifications:

  • Power: 10 HP
  • Speed: 2900 RPM
  • Phase: 3 Phase
  • Frequency: 50HZ
  • Frame Size: 215T
  • Enclosure: TEFC
  • Product Code: EM3711T-58

As a trusted supplier, Pump-Stop is your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568774120
Supplier Part Number EM3711T-58
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Purpose
Agency Approvals CE, WEEE, UR, UKCA, IE3, CURUS, CSA
Ambient Temperature 40 °C
Approximate Weight (lbs) 140.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EM3711T-58
Current @ Voltage 13.100 A @ 400.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 90.2 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 215T
Frame Material Steel
Frequency 50.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 13.1 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3740M
Mounting Arrangement F1
Number of Poles 2
Output 10.000 hp
Output @ Frequency 10.000 HP @ 50 HZ
Overall Length 19.01 IN
Phase 3
Power Factor 89
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 2900 rpm
Speed Code Single Speed
Starting Method Wye Start - Delta Run
Synchronous Speed 3,000 rpm
Synchronous Speed @ Frequency 3000 RPM @ 50 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 400 V
Voltage @ Frequency 400.0 V @ 50 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
