Baldor EM3615T-G - 5 HP, 1755RPM, 3 Phase, 60HZ, 184T, 3642M, TEFC, F1 60HZ Three Phase 5 HP 3642 M Cable

Save $459.50
BaldorSKU: EM3615T-G

Price:
Sale price$1,378.50 Regular price$1,838.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

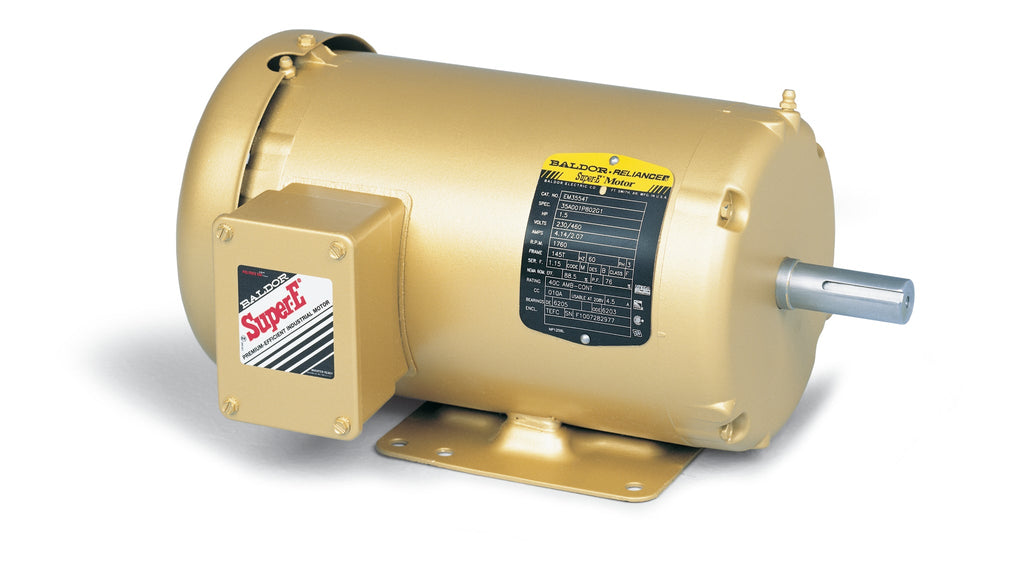

Baldor EM3615T-G Super-E Motor

Upgrade your pumping system with the Baldor EM3615T-G, a high-performance 5 HP, 1755 RPM, 3-phase motor designed for efficiency and reliability. This motor operates at 60Hz and features a 184T frame size, making it ideal for various industrial applications.

Equipped with a Baldor-Reliance shaft grounding brush, this TEFC (Totally Enclosed Fan Cooled) motor ensures optimal performance while protecting against electrical discharge. The F1 mounting configuration allows for versatile installation options, making it a perfect fit for your existing setup.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EM3615T-G to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

Product Specifications:

  • Power: 5 HP
  • Speed: 1755 RPM
  • Phase: 3
  • Frequency: 60Hz
  • Frame Size: 184T
  • Type: TEFC
  • Product Code: EM3615T-G
UPC 781568547755
Supplier Part Number EM3615T-G
Category AC Motors
Subcategory Super-E motor with Baldor-Reliance shaft grounding brush
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 92.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EM3615T-G
Current @ Voltage 14.000 A @ 208.0 V, 6.700 A @ 460.0 V, 13.400 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 89.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 184T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 6.7 a
Insulation Class H
Inverter Code Inverter Ready
IP Rating NONE
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3642M
Mounting Arrangement F1
Number of Poles 4
Output 5.000 hp
Output @ Frequency 5.000 HP @ 60 HZ
Overall Length 18.04 IN
Phase 3
Power Factor 78
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1755 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
