Baldor EM3545-G - 1 HP, 3450RPM, 3 Phase, 60HZ, 56, 3516M, TEFC, F1, N 60HZ Three Phase 1 HP 3516 M Cable

Save $327.75
BaldorSKU: EM3545-G

Price:
Sale price$983.25 Regular price$1,311.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

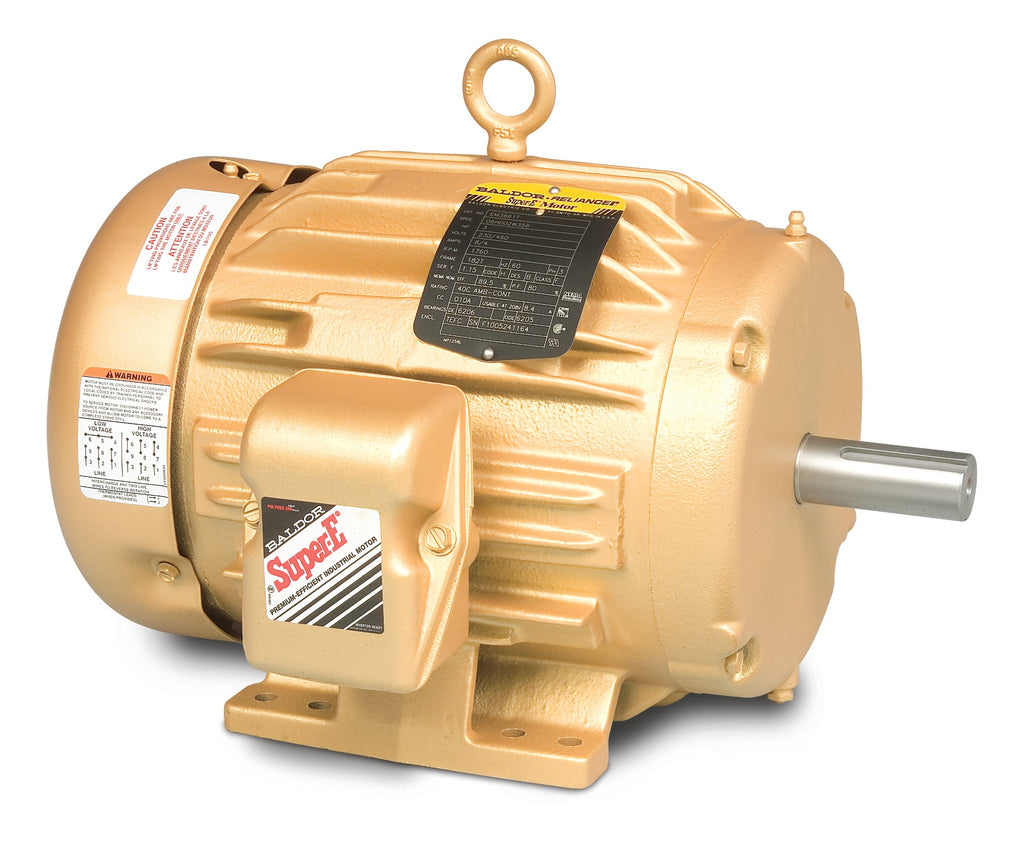

Baldor EM3545-G Super-E Motor

The Baldor EM3545-G is a high-performance 1 HP Super-E motor designed for efficiency and durability. Operating at 3450 RPM, this 3-phase motor is perfect for a variety of applications, including pump systems. With a frequency of 60HZ and a TEFC (Totally Enclosed Fan Cooled) design, it ensures reliable operation in demanding environments.

Specifications:

  • Power: 1 HP
  • Speed: 3450 RPM
  • Phase: 3
  • Frequency: 60HZ
  • Frame: 56
  • Model: 3516M
  • Type: Super-E motor with Baldor-Reliance shaft grounding brush
  • Product Code: EM3545-G

As a trusted source for replacement pumps and parts, Pump-Stop.com is here to help you find the right motor for your needs. If you have questions or need assistance locating the correct part, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. Don't hesitate to reach out if you're having trouble finding the right item!

UPC 781568663363
Supplier Part Number EM3545-G
Category AC Motors
Subcategory Super-E motor with Baldor-Reliance shaft grounding brush
Product Family General Purpose
Agency Approvals NEMA_PREMIUM, NEMA PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 32.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EM3545-G
Current @ Voltage 1.400 A @ 460.0 V, 2.800 A @ 230.0 V, 3.000 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 77.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 60.00 Hz
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.4 a
Insulation Class H
Inverter Code Inverter Ready
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3516M
Mounting Arrangement F1
Number of Poles 2
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 12.23 IN
Phase 3
Power Factor 87
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
