Baldor EM3309T-BG - 5 HP, 1160RPM, 3 Phase, 60HZ, 215T, 3744M, Opsb, F1 60HZ Three Phase 5 HP 3744 M Cable

Save $688.25
BaldorSKU: EM3309T-BG

Price:
Sale price$2,064.75 Regular price$2,753.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

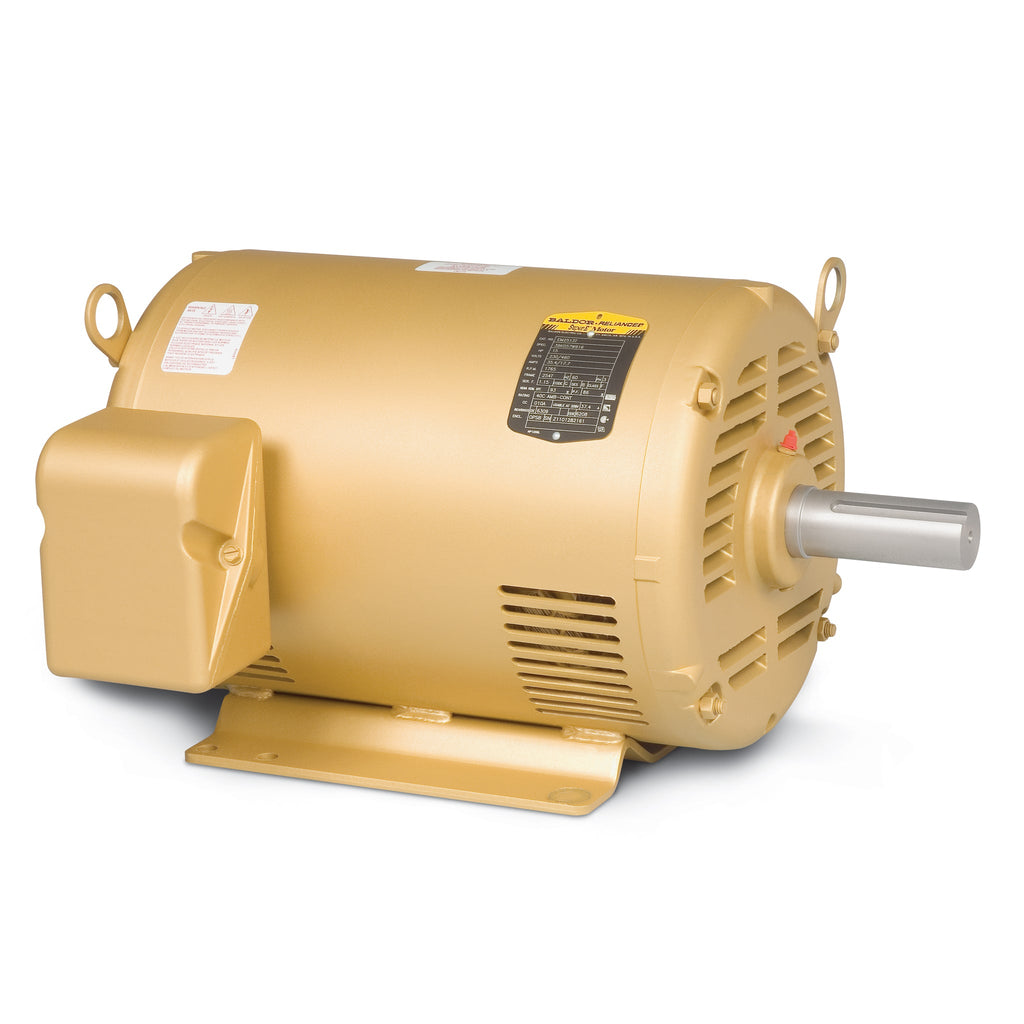

Baldor EM3309T-BG - 5 HP Super-E Motor

Upgrade your industrial applications with the Baldor EM3309T-BG, a high-performance 5 HP Super-E motor designed for efficiency and reliability. Operating at 1160 RPM, this 3-phase motor is optimized for 60Hz power supply, making it an ideal choice for various pump systems.

Key Features:

  • Power: 5 HP
  • Speed: 1160 RPM
  • Phase: 3
  • Frequency: 60Hz
  • Frame Size: 215T
  • Model: 3744M
  • Type: Super-E motor with Baldor-Reliance shaft grounding brush
  • Product Code: EM3309T-BG

This motor is part of the Baldor-Reliance family, known for its durability and performance in demanding environments. The integrated shaft grounding brush helps to protect against electrical discharge, ensuring longevity and reliability.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EM3309T-BG to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568721803
Supplier Part Number EM3309T-BG
Category AC Motors
Subcategory Super-E motor with Baldor-Reliance shaft grounding brush
Product Family General Purpose
Agency Approvals NEMA_PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 141.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EM3309T-BG
Current @ Voltage 14.800 A @ 230.0 V, 7.400 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 89.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 215T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 7.4 a
Insulation Class H
Inverter Code Inverter Ready
IP Rating NONE
KVA Code K
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3744M
Mounting Arrangement F1
Number of Poles 6
Output 5.000 hp
Output @ Frequency 5.000 HP @ 60 HZ
Overall Length 17.45 IN
Phase 3
Power Factor 71
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1160 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
