Baldor EM31159 - 1.5 HP, 1170RPM, 3 Phase, 60HZ, 56H, 3540M, ODP, F1 60HZ Three Phase Three Phase 1.5 HP 3540 M Cable

Save $333.50
BaldorSKU: EM31159

Price:
Sale price$1,000.50 Regular price$1,334.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

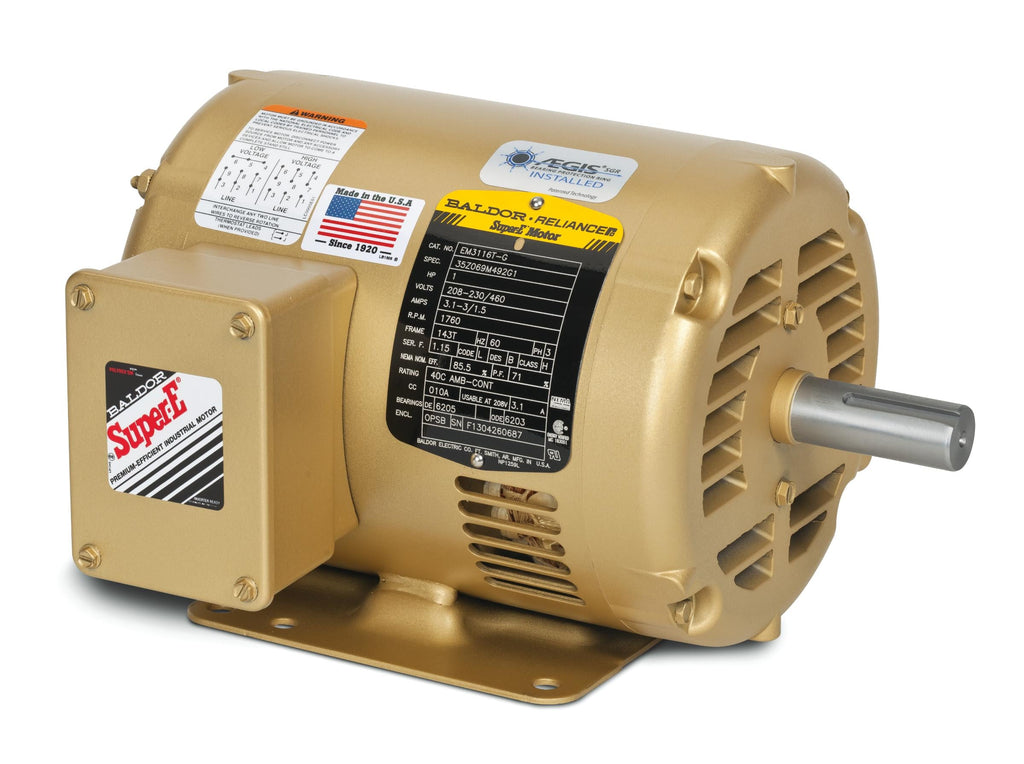

Baldor EM31159 - 1.5 HP Three Phase Open Motor

Upgrade your pumping system with the Baldor EM31159, a reliable and efficient 1.5 HP three-phase motor designed for optimal performance. Operating at 1170 RPM and 60HZ, this motor is perfect for various industrial applications requiring robust power and durability.

Specifications:

  • Power: 1.5 HP
  • Speed: 1170 RPM
  • Phase: 3 Phase
  • Frequency: 60HZ
  • Frame: 56H
  • Enclosure: Open Drip Proof (ODP)
  • Product Code: EM31159

As a trusted supplier, Pump-Stop is your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EM31159 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568732755
Supplier Part Number EM31159
Category AC Motors
Subcategory Three Phase Open
Product Family General Purpose
Agency Approvals CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 54.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EM31159
Current @ Voltage 2.500 A @ 460.0 V, 5.000 A @ 230.0 V, 5.200 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 84.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 56H
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.5 a
Insulation Class F
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3540M
Mounting Arrangement F1
Number of Poles 6
Output 1.500 hp
Output @ Frequency 1.500 HP @ 60 HZ
Overall Length 14.00 IN
Phase 3
Power Factor 66
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1170 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
