Baldor EM31154A - 1.5 HP, 1760RPM, 3 Phase, 60HZ, 56, 3526M, Open, F1 60HZ Three Phase Three Phase 1.5 HP 3526 M Cable

Save $287.25
BaldorSKU: EM31154A

Price:
Sale price$861.75 Regular price$1,149.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

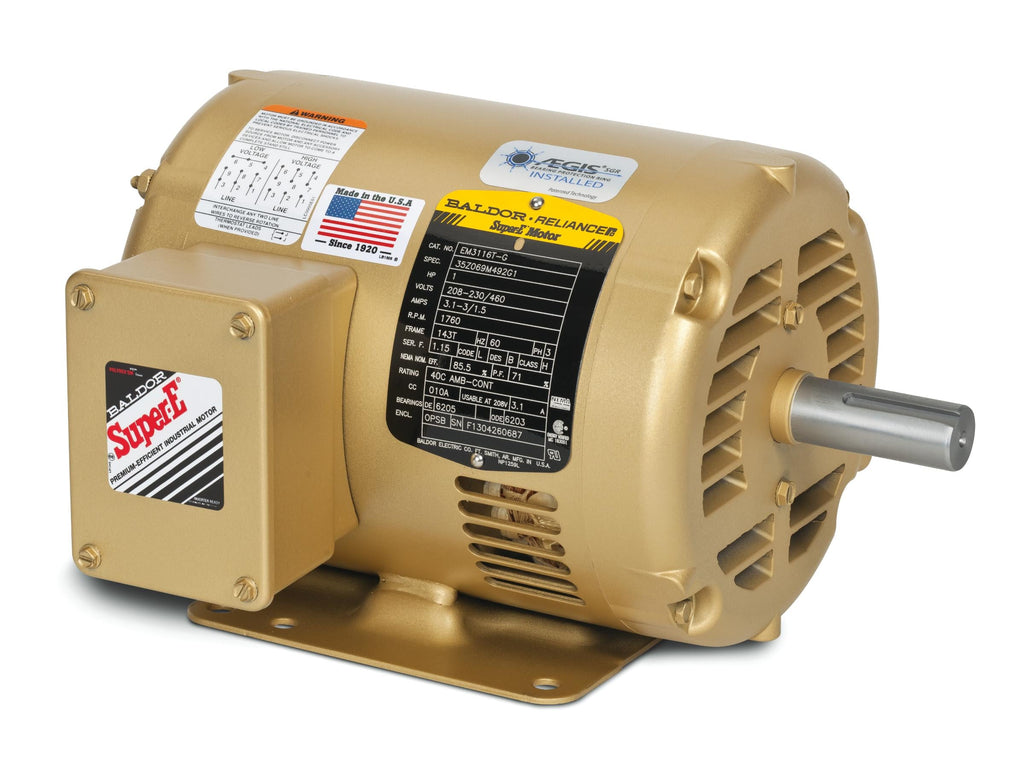

Baldor EM31154A - 1.5 HP Three Phase Open Motor

Upgrade your pumping system with the Baldor EM31154A, a reliable and efficient 1.5 HP three-phase open motor designed for optimal performance. Operating at 1760 RPM and 60Hz, this motor is perfect for a variety of industrial applications. With a frame size of 56 and a robust design, the Baldor EM31154A ensures durability and longevity in demanding environments.

Key Features:

  • Power: 1.5 HP
  • Speed: 1760 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 56
  • Open design for efficient cooling

As the preferred source for replacement pumps and parts, Pump-Stop.com is here to help you find the right motor for your needs. If you have questions or need assistance, feel free to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our team is ready to assist you!

Enhance your operations with the Baldor EM31154A motor—your reliable choice for three-phase power solutions.

UPC 781568764794
Supplier Part Number EM31154A
Category AC Motors
Subcategory Three Phase Open
Product Family General Purpose
Agency Approvals CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 41.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EM31154A
Current @ Voltage 2.200 A @ 460.0 V, 4.400 A @ 230.0 V, 4.600 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 86.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPEN
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.2 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code M
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 12 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3526M
Mounting Arrangement F1
Number of Poles 4
Output 1.500 hp
Output @ Frequency 1.500 HP @ 60 HZ
Overall Length 12.07 IN
Phase 3
Power Factor 72
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1750 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location SB
Winding Thermal 2 None
