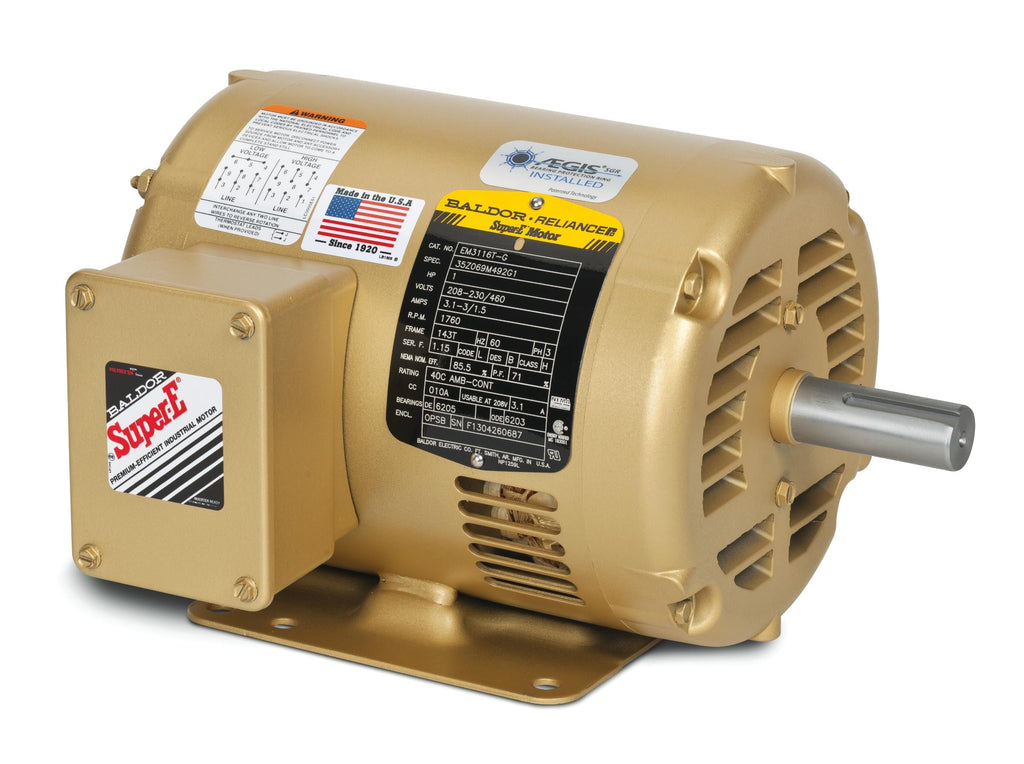

Baldor EM31153 - .75 HP, 1180RPM, 3 Phase, 60HZ, 56, 3524M, ODP, F1, N 60HZ Three Phase Three Phase 75 HP 3524 M Cable

Save $275.00
BaldorSKU: EM31153

Price:
Sale price$825.00 Regular price$1,100.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor Replacement Part — Cable
Cable

The Baldor EM31153 is a replacement cable for Baldor pump systems. An electrical power cord for submersible pump motors, rated for continuous submerged operation.

Part Specifications
Part Number EM31153
Part Type Cable
Brand Baldor
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
UPC 781568732717
Supplier Part Number EM31153
Category AC Motors
Subcategory Three Phase Open
Product Family General Purpose
Agency Approvals CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 39.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EM31153
Current @ Voltage 1.550 A @ 460.0 V, 2.900 A @ 208.0 V, 3.100 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 81.7 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.6 a
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code M
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3524M
Mounting Arrangement F1
Number of Poles 6
Output 0.750 hp
Output @ Frequency .750 HP @ 60 HZ
Overall Length 12.07 IN
Phase 3
Power Factor 55
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1180 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
