Baldor EM31116-5 - 1 HP, 1774RPM, 3 Phase, 60HZ, 56, 3522M, Open, F1, N 60HZ Three Phase Three Phase 1 HP 3522 M Cable

Save $237.00
BaldorSKU: EM31116-5

Price:
Sale price$711.00 Regular price$948.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

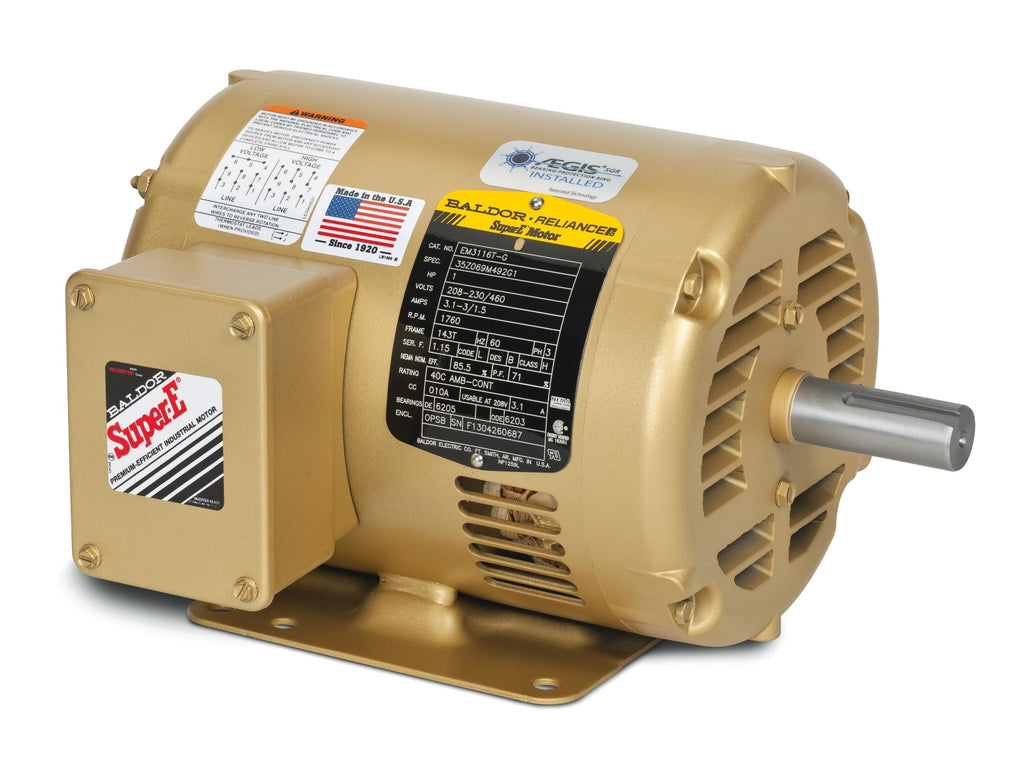

Baldor EM31116-5 - 1 HP Three Phase Open Motor

The Baldor EM31116-5 is a high-performance 1 HP, 1774 RPM three-phase open motor designed for a variety of industrial applications. Operating at 60Hz, this motor features a robust construction with a frame size of 56 and a service factor of 1.0, ensuring reliability and efficiency in demanding environments.

Key Specifications:

  • Power: 1 HP
  • Speed: 1774 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 56
  • Enclosure: Open
  • Product Code: EM31116-5

This Baldor-Reliance motor is ideal for applications requiring a durable and efficient power source. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EM31116-5 to ensure compatibility. Don't hesitate to reach out if you need help locating the right item!

UPC 781568776407
Supplier Part Number EM31116-5
Category AC Motors
Subcategory Three Phase Open
Product Family General Purpose
Agency Approvals CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 38.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EM31116-5
Current @ Voltage 1.300 A @ 575.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 85.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPEN
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.3 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code M
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 3 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3522M
Mounting Arrangement F1
Number of Poles 4
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 12.07 IN
Phase 3
Power Factor 70
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1775 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 575 V
Voltage @ Frequency 575.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
