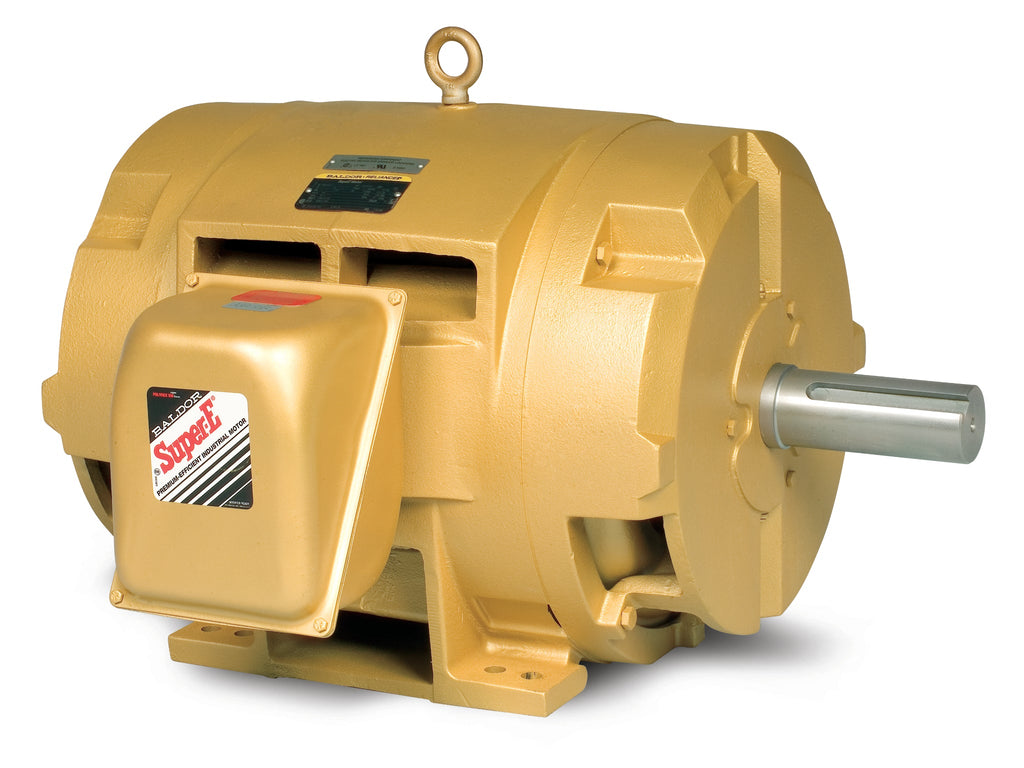

Baldor EM2562T-4 - 200HP, 3560RPM, 3PH, 60HZ, 444TS, 1860M, OPEN - Three Phase Open
Roll over image to zoom in Click on image to zoom
Baldor EM2562T-4 - 200HP, 3560RPM, 3PH, 60HZ, 444TS, 1860M, OPEN - Three Phase Open
Baldor Electric Motors

Baldor EM2562T-4 - 200 HP, 3560RPM, 3 Phase, 60HZ, 444TS, 1860M, Open 60HZ Three Phase Three Phase 200 HP 1860 M Cable

BaldorSKU: EM2562T-4
Price:
$18,357.00

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

Baldor Replacement Part — Cable
Cable

The Baldor EM2562T-4 is a replacement cable for Baldor pump systems. An electrical power cord for submersible pump motors, rated for continuous submerged operation.

Part Specifications
Part Number EM2562T-4
Part Type Cable
Brand Baldor
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
Need help confirming compatibility or finding the right part? Contact PumpStop — chat or call (781) 281-8905.
UPC
781568222096
Supplier Part Number
EM2562T-4
Category
AC Motors
Subcategory
Three Phase Open
Agency Approvals
CCSA US, CURUSEEV
Ambient Temperature
40 °C
Approximate Weight (lbs)
1364.0
Auxillary Box
No Auxillary Box
Base Indicator
Rigid
Bearing Grease Type
Polyrex EM (-20F +300F)
Catalog Number
EM2562T-4
Current @ Voltage
221.000 A @ 460.0 V
Design Code
B
Drip Cover
No Drip Cover
Duty Rating
CONT
Efficiency @ 100% Load
95.4 %
Enclosure
ODP
Feedback Device
NO FEEDBACK
Frame
444TS
Frame Material
Cast Iron
Frequency
60.00 Hz
Haz Area Class and Group
NONE
Haz Area Division
Not Applicable
Heater Indicator
No Heater
High Voltage Full Load Amps
221.0 a
Insulation Class
B
Inverter Code
Inverter Ready
KVA Code
F
Lifting Lugs
No Lifting Lugs
Motor Lead Quantity/Wire Size
6 @ 1 AWG
Motor Letter Type
Three Phase
Motor Standards
NEMA
Motor Type
A44056M
Mounting Arrangement
F1
Number of Poles
2
Output
200.000 hp
Output @ Frequency
200.000 HP @ 60 HZ
Overall Length
35.88 IN
Phase
3
Power Factor
88
Pulley End Bearing Type
Ball
Pulley Face Code
Standard
Service Factor
1.15
Shaft Diameter
2.375 IN
Shaft Ground Indicator
No Shaft Grounding
Shaft Rotation
Reversible
Shaft Slinger Indicator
No Slinger
Speed
3565 rpm
Speed Code
Single Speed
Starting Method
Wye Start - Delta Run
Synchronous Speed
3,600 rpm
Synchronous Speed @ Frequency
3600 RPM @ 60 HZ
Thermal Device - Bearing
None
Thermal Device - Winding
None
Voltage
460 V
Voltage @ Frequency
460.0 V @ 60 HZ
