Baldor EM2558T-4 - 150 HP, 1780RPM, 3 Phase, 60HZ, 444T, 1868M, Open 60HZ Three Phase Three Phase 150 HP 1868 M Cable

Save $5,025.75
BaldorSKU: EM2558T-4

Price:
Sale price$15,077.25 Regular price$20,103.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

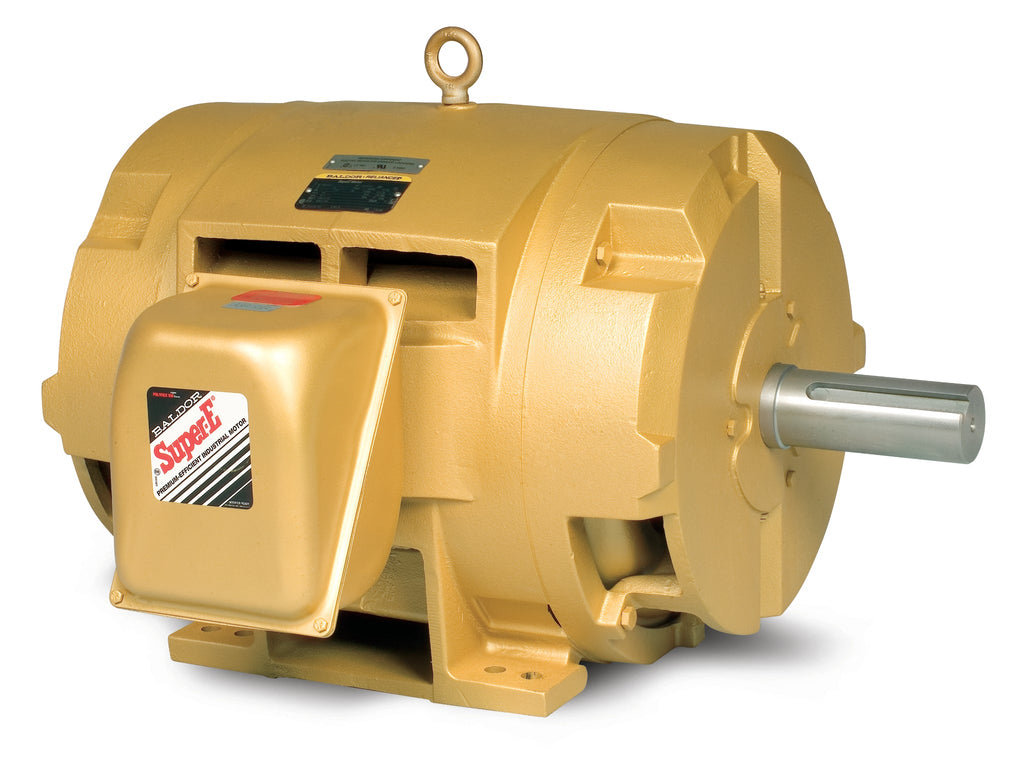

Baldor EM2558T-4 - 150 HP Three Phase Open Motor

The Baldor EM2558T-4 is a high-performance three-phase open motor designed for demanding applications. With a robust power output of 150 HP and a speed of 1780 RPM, this motor is ideal for various industrial uses. Operating at 60Hz, it features a 444T frame and is built to deliver reliable performance in challenging environments.

Key Specifications:

  • Power: 150 HP
  • Speed: 1780 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 444T
  • Product Code: EM2558T-4

As a trusted supplier, Pump-Stop is your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568138731
Supplier Part Number EM2558T-4
Category AC Motors
Subcategory Three Phase Open
Agency Approvals CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 1528.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number EM2558T-4
Current @ Voltage 170.000 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 96.2 %
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 444T
Frame Material Cast Iron
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 170.0 a
Insulation Class B
Inverter Code Inverter Ready
KVA Code G
Lifting Lugs No Lifting Lugs
Motor Lead Quantity/Wire Size 6 @ 2 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A44062M
Mounting Arrangement F1
Number of Poles 4
Output 150.000 hp
Output @ Frequency 150.000 HP @ 60 HZ
Overall Length 39.71 IN
Phase 3
Power Factor 86
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Service Factor 1.15
Shaft Diameter 3.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1785 rpm
Speed Code Single Speed
Starting Method Wye Start - Delta Run
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ
