Baldor EM2554T-4CI - 125 HP, 3565RPM, 3 Phase, 60HZ, 404TS, ODP, Foot, 60HZ Three Phase Three Phase 125 HP

Save $5,222.75
BaldorSKU: EM2554T-4CI

Price:
Sale price$15,668.25 Regular price$20,891.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

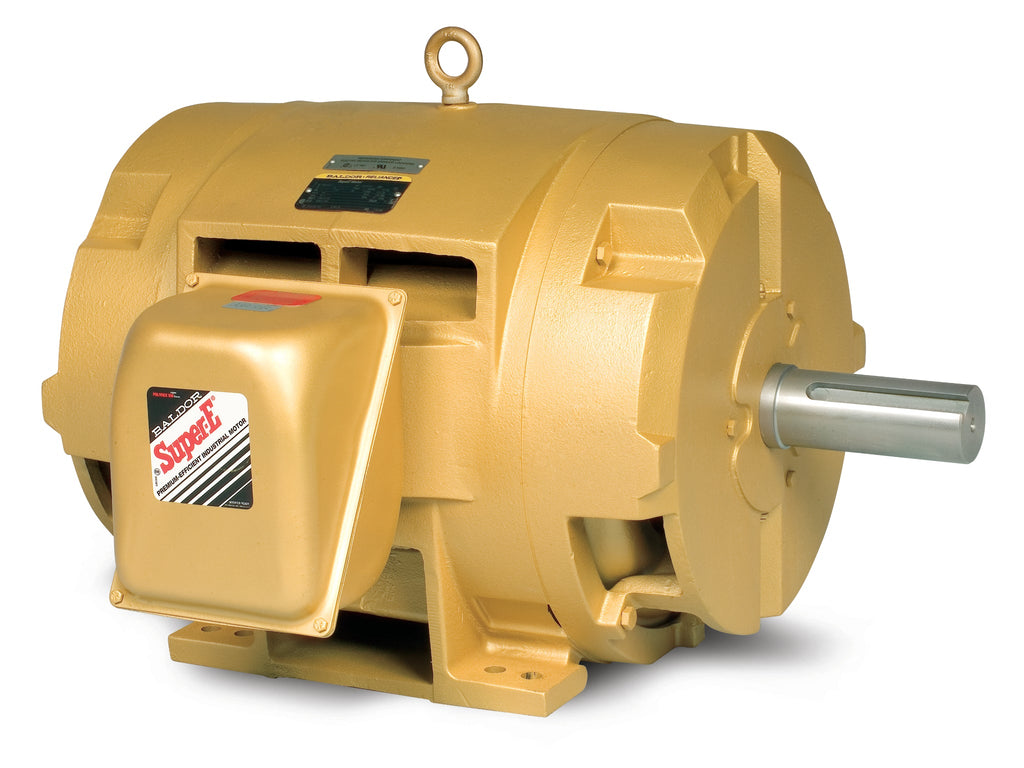

Baldor EM2554T-4CI - 125 HP Three Phase Open Motor

Discover the power and reliability of the Baldor EM2554T-4CI, a high-performance 125 HP motor designed for demanding applications. Operating at 3565 RPM, this three-phase motor is engineered for efficiency and durability, making it an ideal choice for various industrial settings.

  • Power: 125 HP
  • Speed: 3565 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 404TS
  • Enclosure Type: Open Drip Proof (ODP)
  • Mounting Type: Foot Mounted

This Baldor-Reliance motor is perfect for applications requiring robust performance and reliability. As a trusted source for replacement pumps and parts, Pump-Stop.com is here to help you find the right solution for your needs. If you have questions or need assistance locating the correct pump, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, our team is ready to assist you in finding the right item.

UPC 781568524992
Supplier Part Number EM2554T-4CI
Category AC Motors
Subcategory Three Phase Open
Agency Approvals CCSA US, CCSAUSEEV, CSA EEV, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 997.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number EM2554T-4CI
Current @ Voltage 143.000 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 95.0 %
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 404TS
Frame Material Cast Iron
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 143.0 a
Insulation Class B
Inverter Code Inverter Ready
KVA Code F
Lifting Lugs No Lifting Lugs
Motor Lead Quantity/Wire Size 3 @ 2 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A40048M
Mounting Arrangement F1
Number of Poles 2
Output 125.000 hp
Output @ Frequency 125.000 HP @ 60 HZ
Phase 3
Power Factor 86
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Service Factor 1.15
Shaft Diameter 2.125 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3565 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ

Motor Curves
