Baldor EM2551T-CI - 75 HP, 1780RPM, 3 Phase, 60HZ, 365T, ODP, Foot, 60HZ Three Phase Three Phase 75 HP

Save $3,454.75
BaldorSKU: EM2551T-CI

Price:
Sale price$10,364.25 Regular price$13,819.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

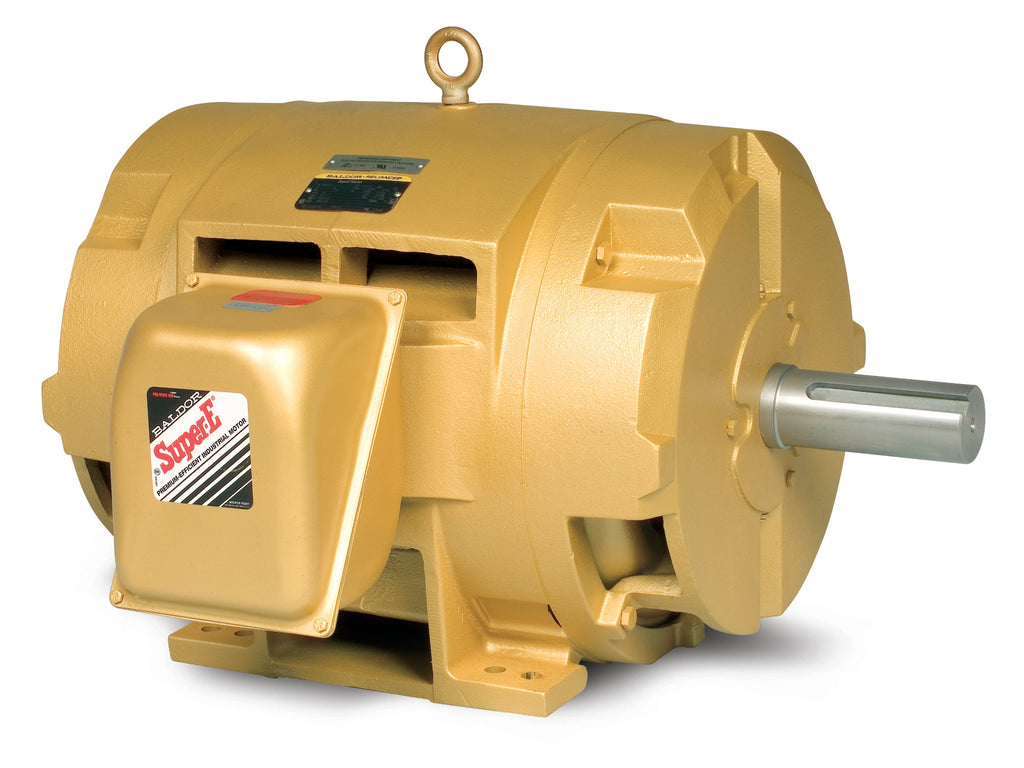

Baldor EM2551T-CI - 75 HP Three Phase Open Motor

Introducing the Baldor EM2551T-CI, a high-performance 75 HP motor designed for three-phase applications. Operating at 1780 RPM and 60Hz, this robust motor is ideal for various industrial and commercial uses. With a 365T frame size and open drip-proof (ODP) design, it ensures efficient cooling and reliable operation in demanding environments.

Key Features:

  • Power: 75 HP
  • Speed: 1780 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 365T
  • Design: Open Drip Proof (ODP)
  • Mounting: Foot-mounted

As a trusted supplier of quality motors, Pump-Stop is your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EM2551T-CI to ensure compatibility. If you encounter any difficulties, our knowledgeable team is here to help you find the perfect solution.

UPC 781568524985
Supplier Part Number EM2551T-CI
Category AC Motors
Subcategory Three Phase Open
Agency Approvals CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 762.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number EM2551T-CI
Current @ Voltage 173.000 A @ 230.0 V, 86.500 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 95.0 %
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 365T
Frame Material Cast Iron
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 86.5 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code G
Lifting Lugs No Lifting Lugs
Motor Lead Quantity/Wire Size 3 @ 4 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A36056M
Mounting Arrangement F1
Number of Poles 4
Output 75.000 hp
Output @ Frequency 75.000 HP @ 60 HZ
Overall Length 29.70 IN
Phase 3
Power Factor 86
Pulley End Bearing Type Ball
Pulley Face Code P-Base
Service Factor 1.15
Shaft Diameter 2.374 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1780 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
