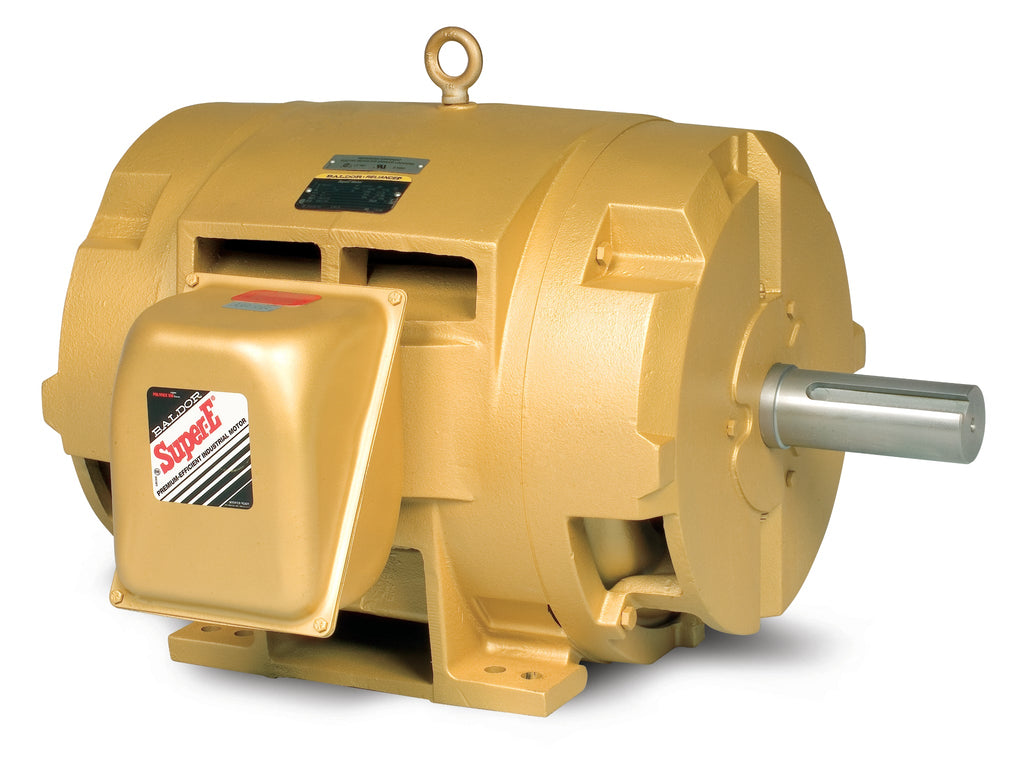

Baldor EM2548T-4CI - 60HP, 1185RPM, 3PH, 60HZ, 404T, M400MAG, OPEN, - Three Phase Open
Roll over image to zoom in Click on image to zoom
Baldor EM2548T-4CI - 60HP, 1185RPM, 3PH, 60HZ, 404T, M400MAG, OPEN, - Three Phase Open
Baldor Electric Motors

Baldor EM2548T-4CI - 60 HP, 1185RPM, 3 Phase, 60HZ, 404T, M400MAG, Open, 60HZ Three Phase Three Phase 60 HP

BaldorSKU: EM2548T-4CI
Price:
$12,648.75

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

Baldor Replacement Part — Component

The Baldor EM2548T-4CI for Baldor pump systems.

Part Specifications
Part Number EM2548T-4CI
Brand Baldor
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
Need help confirming compatibility or finding the right part? Contact PumpStop — chat or call (781) 281-8905.
UPC
781568530689
Supplier Part Number
EM2548T-4CI
Category
AC Motors
Subcategory
Three Phase Open
Agency Approvals
CURUSEEV, CSA EEV, CCSA US
Ambient Temperature
40 °C
Approximate Weight (lbs)
1009.0
Auxillary Box
No Auxillary Box
Base Indicator
Rigid
Bearing Grease Type
Polyrex EM (-20F +300F)
Catalog Number
EM2548T-4CI
Current @ Voltage
70.400 A @ 460.0 V
Design Code
B
Drip Cover
No Drip Cover
Duty Rating
CONT
Efficiency @ 100% Load
95.0 %
Enclosure
DP
Feedback Device
NO FEEDBACK
Frame
404T
Frame Material
Iron
Frequency
60.00 Hz
Haz Area Class and Group
NONE
Haz Area Division
Not Applicable
Heater Indicator
No Heater
High Voltage Full Load Amps
70.4 a
Insulation Class
F
Inverter Code
Inverter Ready
KVA Code
G
Lifting Lugs
No Lifting Lugs
Motor Lead Quantity/Wire Size
6 @ 6 AWG
Motor Letter Type
Three Phase
Motor Standards
NEMA
Motor Type
A40052M
Mounting Arrangement
F1
Number of Poles
6
Output
60.000 hp
Output @ Frequency
60.000 HP @ 60 HZ
Overall Length
33.95 IN
Phase
3
Power Factor
84
Pulley End Bearing Type
Ball
Pulley Face Code
C-Face
Service Factor
1.15
Shaft Diameter
2.875 IN
Shaft Ground Indicator
No Shaft Grounding
Shaft Rotation
Reversible
Shaft Slinger Indicator
No Slinger
Speed
1185 rpm
Speed Code
Single Speed
Starting Method
Wye Start - Delta Run
Synchronous Speed
1,200 rpm
Synchronous Speed @ Frequency
1200 RPM @ 60 HZ
Thermal Device - Bearing
None
Thermal Device - Winding
None
Voltage
460 V
Voltage @ Frequency
460.0 V @ 60 HZ
