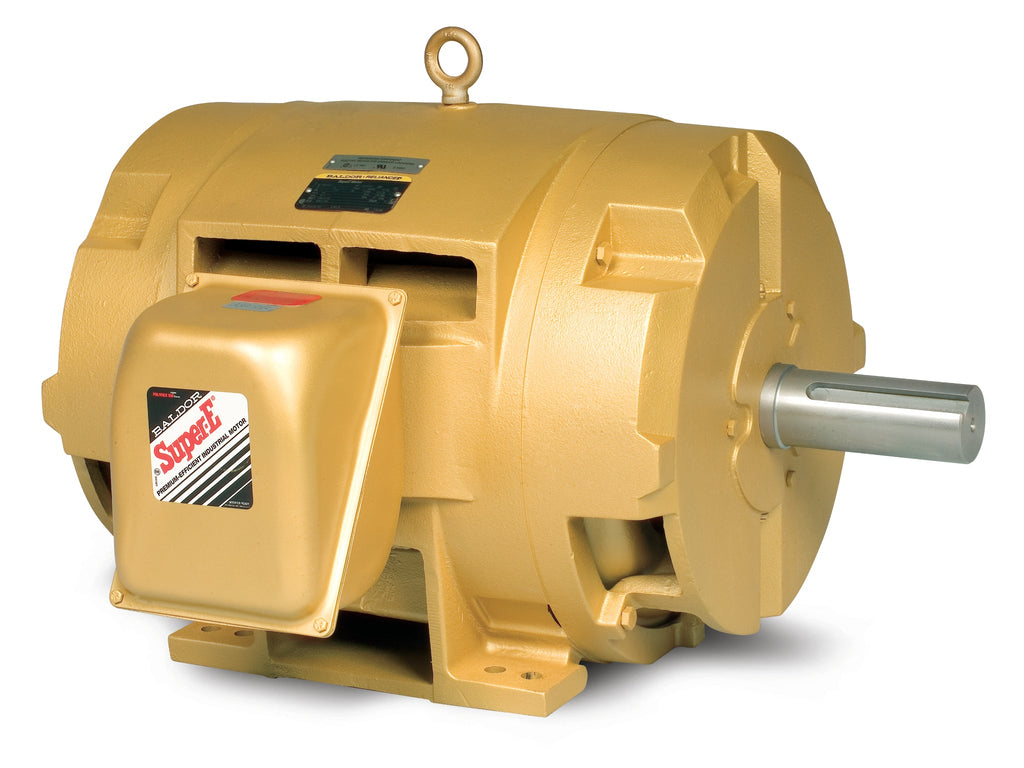

Image shown may not be actual product
Baldor EM2547T-CI - 60HP, 1780RPM, 3PH, 60HZ, 364T, ODP, FOOT, - Three Phase Open
Roll over image to zoom in Click on image to zoom
Baldor EM2547T-CI - 60HP, 1780RPM, 3PH, 60HZ, 364T, ODP, FOOT, - Three Phase Open
Baldor Electric Motors

Baldor EM2547T-CI - 60 HP, 1780RPM, 3 Phase, 60HZ, 364T, ODP, Foot, 60HZ Three Phase Three Phase 60 HP

BaldorSKU: EM2547T-CI
Price:
$8,445.00

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

Baldor Replacement Part — Component

The Baldor EM2547T-CI for Baldor pump systems.

Part Specifications
Part Number EM2547T-CI
Brand Baldor
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
Need help confirming compatibility or finding the right part? Contact PumpStop — chat or call (781) 281-8905.
UPC
781568524978
Supplier Part Number
EM2547T-CI
Category
AC Motors
Subcategory
Three Phase Open
Agency Approvals
CSA EEV, CURUSEEV, CCSAUSEEV, CCSA US
Ambient Temperature
40 °C
Approximate Weight (lbs)
745.0
Auxillary Box
No Auxillary Box
Base Indicator
Rigid
Bearing Grease Type
Polyrex EM (-20F +300F)
Catalog Number
EM2547T-CI
Current @ Voltage
139.000 A @ 230.0 V, 69.500 A @ 460.0 V
Design Code
B
Drip Cover
No Drip Cover
Duty Rating
CONT
Efficiency @ 100% Load
95.0 %
Enclosure
ODP
Feedback Device
NO FEEDBACK
Frame
364T
Frame Material
Cast Iron
Frequency
60.00 Hz
Haz Area Class and Group
NONE
Haz Area Division
Not Applicable
Heater Indicator
No Heater
High Voltage Full Load Amps
69.5 a
Insulation Class
F
Inverter Code
Inverter Ready
IP Rating
NONE
KVA Code
G
Lifting Lugs
Standard Lifting Lugs
Motor Lead Quantity/Wire Size
3 @ 4 AWG
Motor Letter Type
Three Phase
Motor Standards
NEMA
Motor Type
A36050M
Mounting Arrangement
F1
Number of Poles
4
Output
60.000 hp
Output @ Frequency
60.000 HP @ 60 HZ
Overall Length
29.70 IN
Phase
3
Power Factor
86
Pulley End Bearing Type
Ball
Pulley Face Code
Standard
Service Factor
1.15
Shaft Diameter
2.374 IN
Shaft Ground Indicator
No Shaft Grounding
Shaft Rotation
Reversible
Shaft Slinger Indicator
No Slinger
Speed
1780 rpm
Speed Code
Single Speed
Starting Method
Direct on line
Synchronous Speed
1,800 rpm
Synchronous Speed @ Frequency
1800 RPM @ 60 HZ
Thermal Device - Bearing
None
Thermal Device - Winding
None
Voltage
230 V, 460 V
Voltage @ Frequency
230.0 V @ 60 HZ, 460.0 V @ 60 HZ
