Baldor EM2542T-CI - 50 HP, 3540RPM, 3 Phase, 60HZ, 324TS, 1250M, Open, F 60HZ Three Phase Three Phase 50 HP 1250 M Cable

Save $2,229.50
BaldorSKU: EM2542T-CI

Price:
Sale price$6,688.50 Regular price$8,918.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

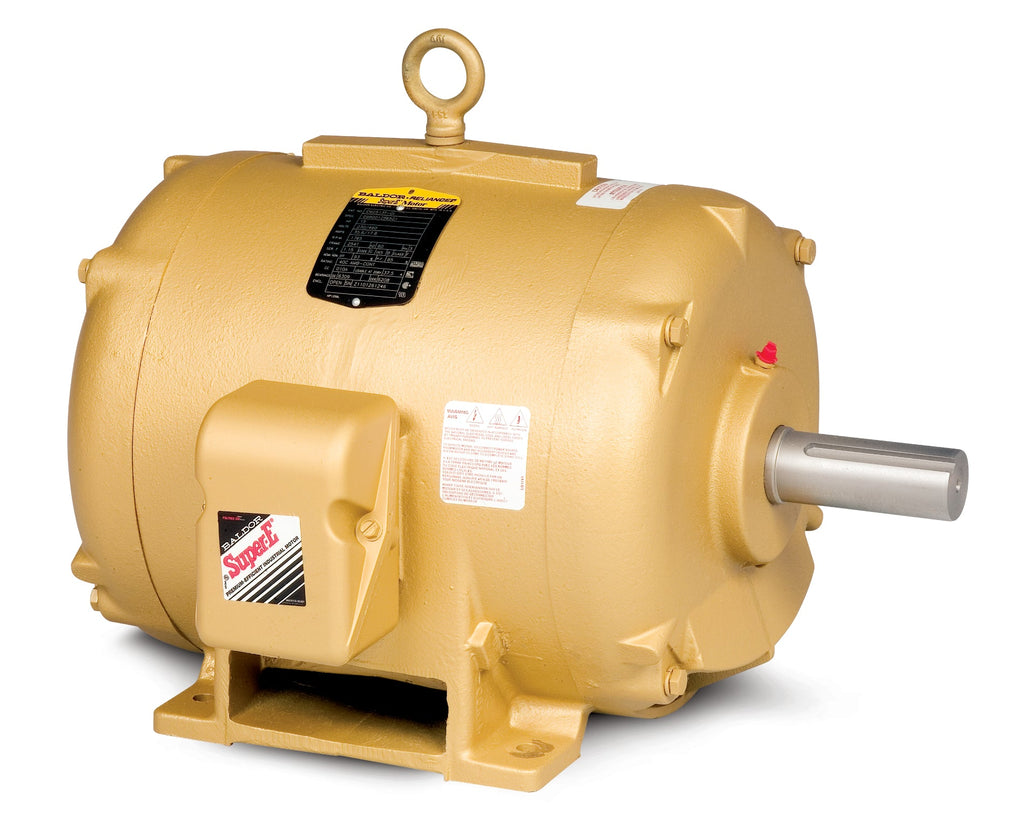

Baldor EM2542T-CI - 50 HP Three Phase Open Motor

The Baldor EM2542T-CI is a high-performance three-phase open motor designed for demanding applications. With a robust 50 HP power output and a speed of 3540 RPM, this motor is ideal for various industrial and commercial uses. It operates at 60Hz and features a 324TS frame size, ensuring compatibility with a wide range of equipment.

Key Specifications:

  • Power: 50 HP
  • Speed: 3540 RPM
  • Phase: 3 Phase
  • Frequency: 60HZ
  • Frame Size: 324TS
  • Insulation Class: 1250M
  • Type: Open

As a trusted vendor, Baldor provides reliable motors that meet the highest industry standards. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs. If you have questions or need assistance in locating the correct pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor EM2542T-CI. If you encounter any difficulties in finding the right item, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568521892
Supplier Part Number EM2542T-CI
Category AC Motors
Subcategory Three Phase Open
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 548.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EM2542T-CI
Current @ Voltage 124.000 A @ 208.0 V, 56.000 A @ 460.0 V, 112.000 A @ 230.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 324TS
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 56.0 a
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code G
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 6 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1250M
Mounting Arrangement F1
Number of Poles 2
Output 50.000 hp
Output @ Frequency 50.000 HP @ 60 HZ
Overall Length 24.63 IN
Phase 3
Power Factor 89
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3540 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
