Baldor EM2539T-CI - 40 HP, 1770RPM, 3 Phase, 60HZ, 324T, 1250M, Open, F1 60HZ Three Phase Three Phase 40 HP 1250 M Cable

Save $2,026.75
BaldorSKU: EM2539T-CI

Price:
Sale price$6,080.25 Regular price$8,107.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

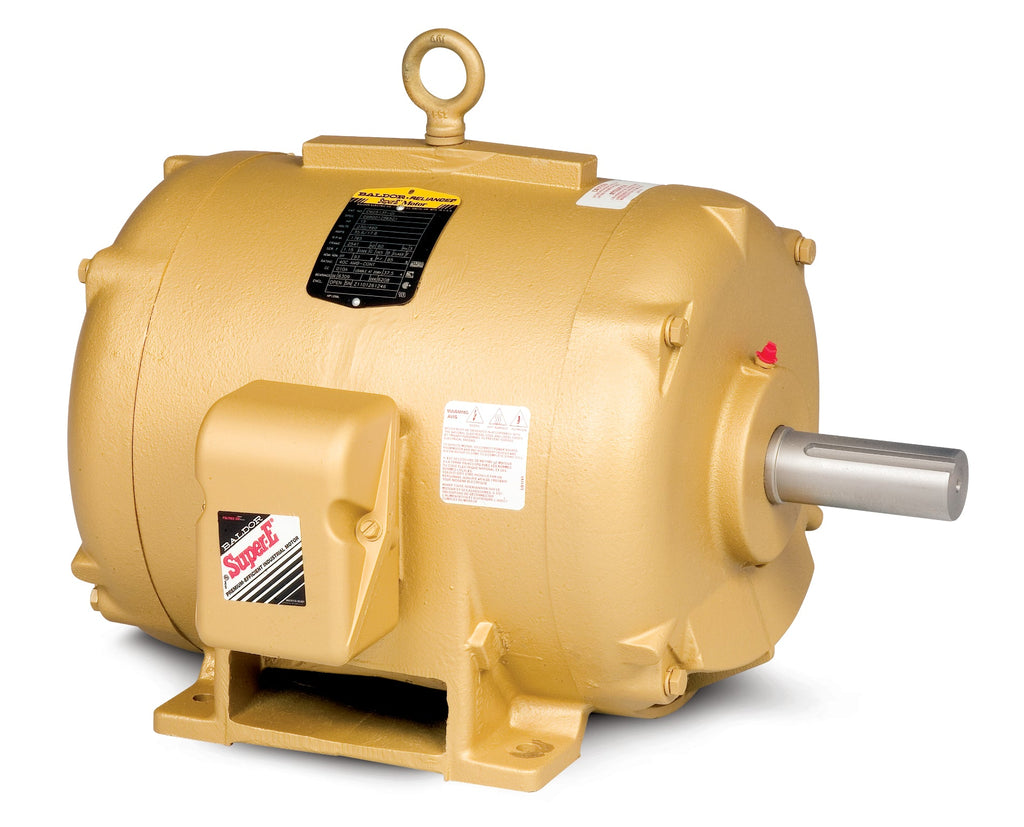

Baldor EM2539T-CI - 40 HP Three Phase Open Motor

Introducing the Baldor EM2539T-CI, a powerful and reliable 40 HP three-phase open motor designed for optimal performance in various industrial applications. Operating at 1770 RPM and powered by a 60Hz supply, this motor is engineered to meet the demands of heavy-duty tasks while ensuring efficiency and durability.

Specifications:

  • Power: 40 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 324T
  • Insulation Class: 1250M
  • Type: Open
  • Product Code: EM2539T-CI

This Baldor-Reliance motor is ideal for applications requiring robust performance and reliability. Whether you are replacing an existing motor or upgrading your equipment, the EM2539T-CI is a top choice for industrial settings.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. Don’t hesitate to reach out if you need help finding the right item!

UPC 781568521885
Supplier Part Number EM2539T-CI
Category AC Motors
Subcategory Three Phase Open
Product Family General Purpose
Agency Approvals NEMA_PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 538.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EM2539T-CI
Current @ Voltage 48.000 A @ 460.0 V, 96.000 A @ 230.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.1 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 324T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 48.0 a
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 8 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1250M
Mounting Arrangement F1
Number of Poles 4
Output 40.000 hp
Output @ Frequency 40.000 HP @ 60 HZ
Overall Length 26.13 IN
Phase 3
Power Factor 82
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 2.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1775 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
