Baldor EM2535T-CI - 30 HP, 1775RPM, 3 Phase, 60HZ, 286T, 1052M, Open, F1 60HZ Three Phase Three Phase 30 HP 1052 M Cable

Save $1,553.25
BaldorSKU: EM2535T-CI

Price:
Sale price$4,659.75 Regular price$6,213.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

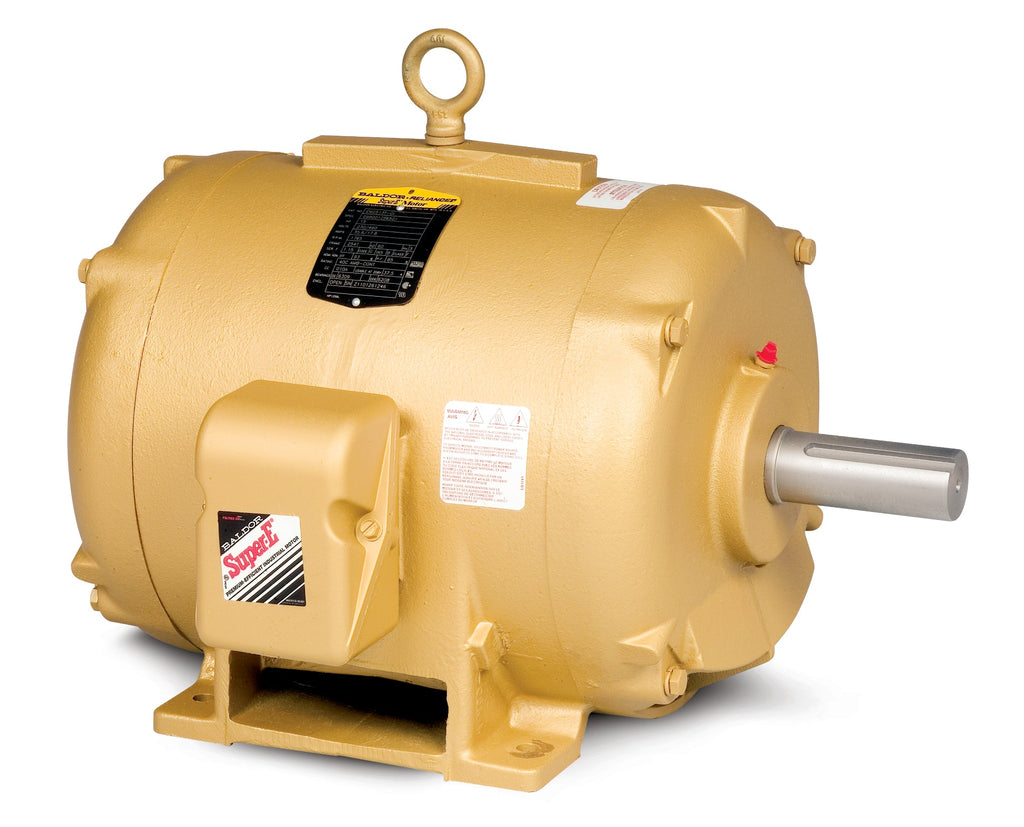

Baldor EM2535T-CI - 30 HP Three Phase Open Motor

The Baldor EM2535T-CI is a high-performance 30 HP motor designed for three-phase applications. Operating at 1775 RPM and 60HZ, this robust motor is ideal for various industrial and commercial uses. With a frame size of 286T and a 1052M cable configuration, it ensures reliable performance and durability in demanding environments.

Key Features:

  • Power: 30 HP
  • Speed: 1775 RPM
  • Phase: 3 Phase
  • Frequency: 60HZ
  • Frame Size: 286T
  • Enclosure: Open
  • Product Code: EM2535T-CI

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EM2535T-CI to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568521816
Supplier Part Number EM2535T-CI
Category AC Motors
Subcategory Three Phase Open
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 405.001
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EM2535T-CI
Current @ Voltage 76.000 A @ 208.0 V, 76.000 A @ 230.0 V, 38.000 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.1 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 286T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 38.0 a
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 10 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1052M
Mounting Arrangement F1
Number of Poles 4
Output 30.000 hp
Output @ Frequency 30.000 HP @ 60 HZ
Overall Length 24.94 IN
Phase 3
Power Factor 77
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1775 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
