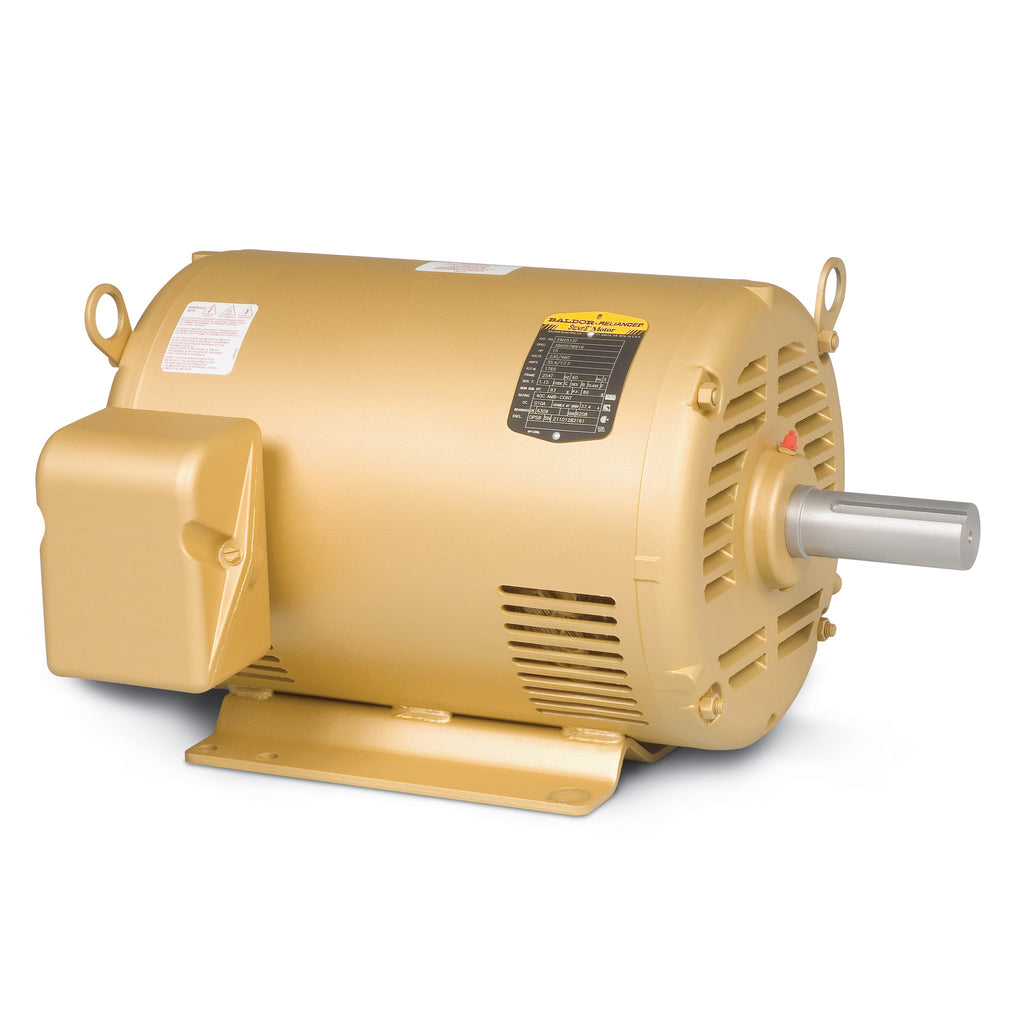

Image shown may not be actual product
Baldor EM2515T-G - 20HP, 1765RPM, 3PH, 60HZ, 256T, 3948M, OPSB, F1 - Super-E motor with Baldor-Reliance shaft grounding brush
Roll over image to zoom in Click on image to zoom
Baldor EM2515T-G - 20HP, 1765RPM, 3PH, 60HZ, 256T, 3948M, OPSB, F1 - Super-E motor with Baldor-Reliance shaft grounding brush
Baldor Electric Motors

Baldor EM2515T-G - 20 HP, 1765RPM, 3 Phase, 60HZ, 256T, 3948M, Opsb, F1 60HZ Three Phase 20 HP 3948 M Cable

BaldorSKU: EM2515T-G
Price:
$3,569.25

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

Baldor Replacement Part — Cable
Cable

The Baldor EM2515T-G is a replacement cable for Baldor pump systems. An electrical power cord for submersible pump motors, rated for continuous submerged operation.

Part Specifications
Part Number EM2515T-G
Part Type Cable
Brand Baldor
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
Need help confirming compatibility or finding the right part? Contact PumpStop — chat or call (781) 281-8905.
UPC
781568547939
Supplier Part Number
EM2515T-G
Category
AC Motors
Subcategory
Super-E motor with Baldor-Reliance shaft grounding brush
Product Family
General Purpose
Agency Approvals
CURUSEEV, NEMA_PREMIUM
Ambient Temperature
40 °C
Approximate Weight (lbs)
227.0
Auxillary Box
No Auxillary Box
Auxillary Box Lead Termination
None
Base Indicator
Rigid
Bearing Grease Type
Polyrex EM (-20F +300F)
Blower
None
Catalog Number
EM2515T-G
Current @ Voltage
48.000 A @ 230.0 V, 52.000 A @ 208.0 V, 24.000 A @ 460.0 V
Design Code
A
Drip Cover
No Drip Cover
Duty Rating
CONT
Efficiency @ 100% Load
93.0 %
Electrically Isolated Bearing
Not Electrically Isolated
Enclosure
ODP
Feedback Device
NO FEEDBACK
Frame
256T
Frame Material
Steel
Frequency
60.00 Hz
Front Face Code
Standard
Front Shaft Indicator
None
Haz Area Class and Group
NONE
Haz Area Division
Not Applicable
Heater Indicator
No Heater
High Voltage Full Load Amps
24.0 a
Insulation Class
H
Inverter Code
Inverter Ready
KVA Code
G
Lifting Lugs
Standard Lifting Lugs
Locked Bearing Indicator
No Locked Bearing
Motor Lead Exit
Ko Box
Motor Lead Quantity/Wire Size
9 @ 10 AWG
Motor Lead Termination
Flying Leads
Motor Letter Type
Three Phase
Motor Standards
NEMA
Motor Type
3948M
Mounting Arrangement
F1
Number of Poles
4
Output
20.000 hp
Output @ Frequency
20.000 HP @ 60 HZ
Overall Length
23.19 IN
Phase
3
Power Factor
85
Pulley End Bearing Type
Ball
Pulley Face Code
Standard
Pulley Shaft Indicator
Standard
Rodent Screen
None
RoHS Status
ROHS COMPLIANT
Service Factor
1.15
Shaft Diameter
1.625 IN
Shaft Extension Location
Pulley End
Shaft Ground Indicator
Shaft Grounding
Shaft Rotation
Reversible
Shaft Slinger Indicator
No Slinger
Speed
1765 rpm
Speed Code
Single Speed
Starting Method
Direct on line
Synchronous Speed
1,800 rpm
Synchronous Speed @ Frequency
1800 RPM @ 60 HZ
Thermal Device - Bearing
None
Thermal Device - Winding
None
Vibration Sensor Indicator
No Vibration Sensor
Voltage
230 V, 460 V
Voltage @ Frequency
460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1
None
Winding Thermal 2
None
