Baldor EM2333T - 15 HP, 1765RPM, 3 Phase, 60HZ, 254T, 0944M, TEFC, F1 60HZ Three Phase Three Phase 15 HP 0944 M Cable

Save $842.75
BaldorSKU: EM2333T

Price:
Sale price$2,528.25 Regular price$3,371.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

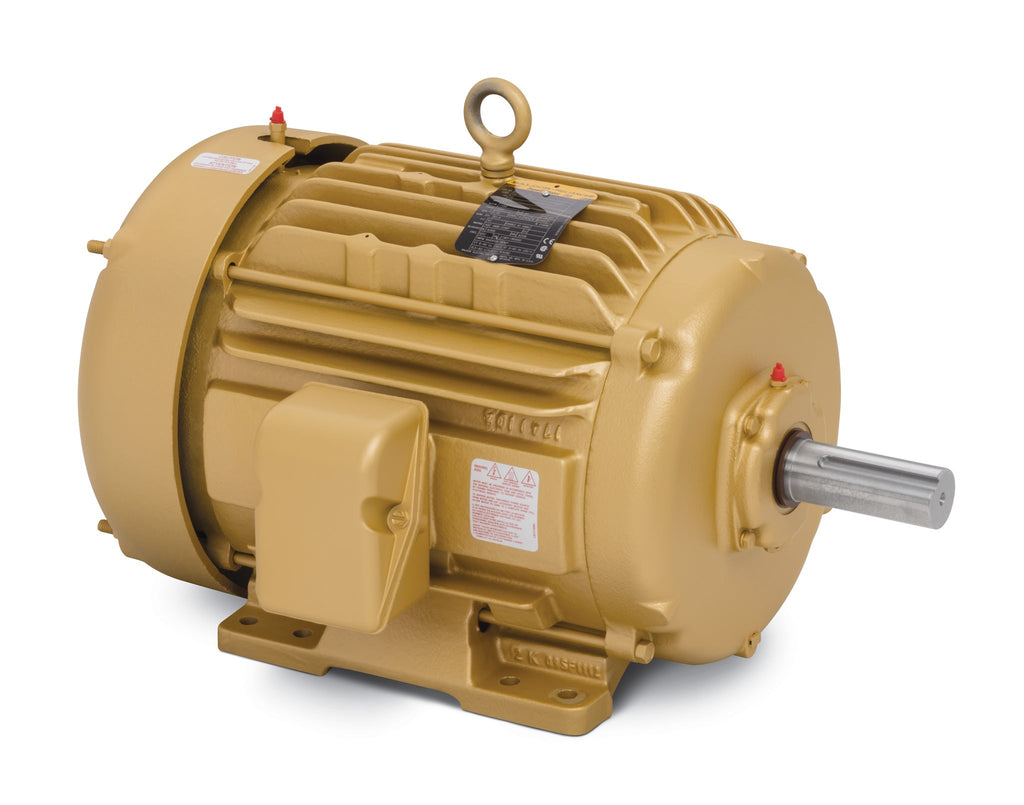

Baldor EM2333T - 15 HP Three Phase Enclosed Motor

Upgrade your industrial applications with the Baldor EM2333T, a robust 15 HP, 1765 RPM three-phase motor designed for efficiency and reliability. This motor operates at 60Hz and features a 254T frame size, making it ideal for various heavy-duty applications.

Key Features:

  • Power: 15 HP
  • Speed: 1765 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 254T
  • Enclosure: Totally Enclosed Fan Cooled (TEFC)
  • Product Code: EM2333T

This Baldor-Reliance motor is engineered for durability and performance, making it a perfect choice for pump applications and other industrial uses. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

Before purchasing, please check your current pump for the exact part number or SKU that matches the Baldor EM2333T. If you have any questions or need assistance in finding the right item, feel free to call us at (781) 281-8905. Our team is here to help you with all your pump and motor needs!

UPC 781568102985
Supplier Part Number EM2333T
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 267.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EM2333T
Current @ Voltage 36.200 A @ 230.0 V, 38.000 A @ 208.0 V, 18.100 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 92.4 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 254T
Frame Material Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 18.1 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0944M
Mounting Arrangement F1
Number of Poles 4
Output 15.000 hp
Output @ Frequency 15.000 HP @ 60 HZ
Overall Length 23.36 IN
Phase 3
Power Factor 84
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
