Baldor EL3606T - 3 HP, 3450RPM, 1 Phase, 60HZ, 182T, 3634LC, TEFC, F1 60HZ Single Phase Single Phase 3 HP

Save $492.25
BaldorSKU: EL3606T

Price:
Sale price$1,476.75 Regular price$1,969.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

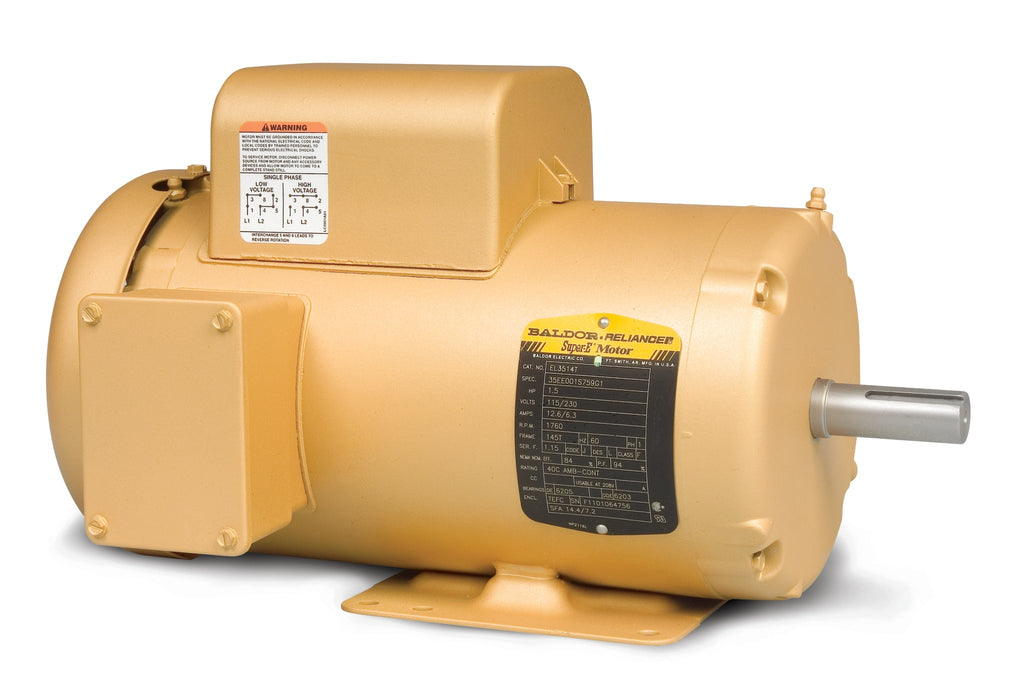

Baldor EL3606T - 3 HP Single Phase Enclosed Motor

The Baldor EL3606T is a high-performance single phase enclosed motor designed for reliable operation in various applications. With a powerful 3 HP output and a speed of 3450 RPM, this motor is ideal for driving pumps and other machinery that require robust performance.

  • Power: 3 HP
  • Speed: 3450 RPM
  • Phase: Single Phase
  • Frequency: 60 Hz
  • Frame Size: 182T
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: EL3606T

This Baldor-Reliance motor is built to withstand harsh conditions, making it a reliable choice for your pumping needs. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your application.

If you have questions or need assistance in finding the right pump, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EL3606T to ensure compatibility. Don't hesitate to reach out if you need help locating the right item!

UPC 781568484661
Supplier Part Number EL3606T
Category AC Motors
Subcategory Single Phase Enclosed
Product Family General Purpose
Agency Approvals CURUS, CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 79.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EL3606T
Current @ Voltage 12.400 A @ 230.0 V, 24.800 A @ 115.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 82.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 182T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 12.4 a
Insulation Class F
Inverter Code Not Inverter
KVA Code H
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 4 @ 14 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3634LC
Mounting Arrangement F1
Number of Poles 2
Output 3.000 hp
Output @ Frequency 3.000 HP @ 60 HZ
Overall Length 16.56 IN
Phase 1
Power Factor 98
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 115 V
Voltage @ Frequency 230.0 V @ 60 HZ, 115.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
