Baldor EL1319T - 1.5 HP, 1725RPM, 1 Phase, 60HZ, 145T, 3536LC, Open 60HZ Single Phase Single Phase 1.5 HP

Save $371.25
BaldorSKU: EL1319T

Price:
Sale price$1,113.75 Regular price$1,485.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

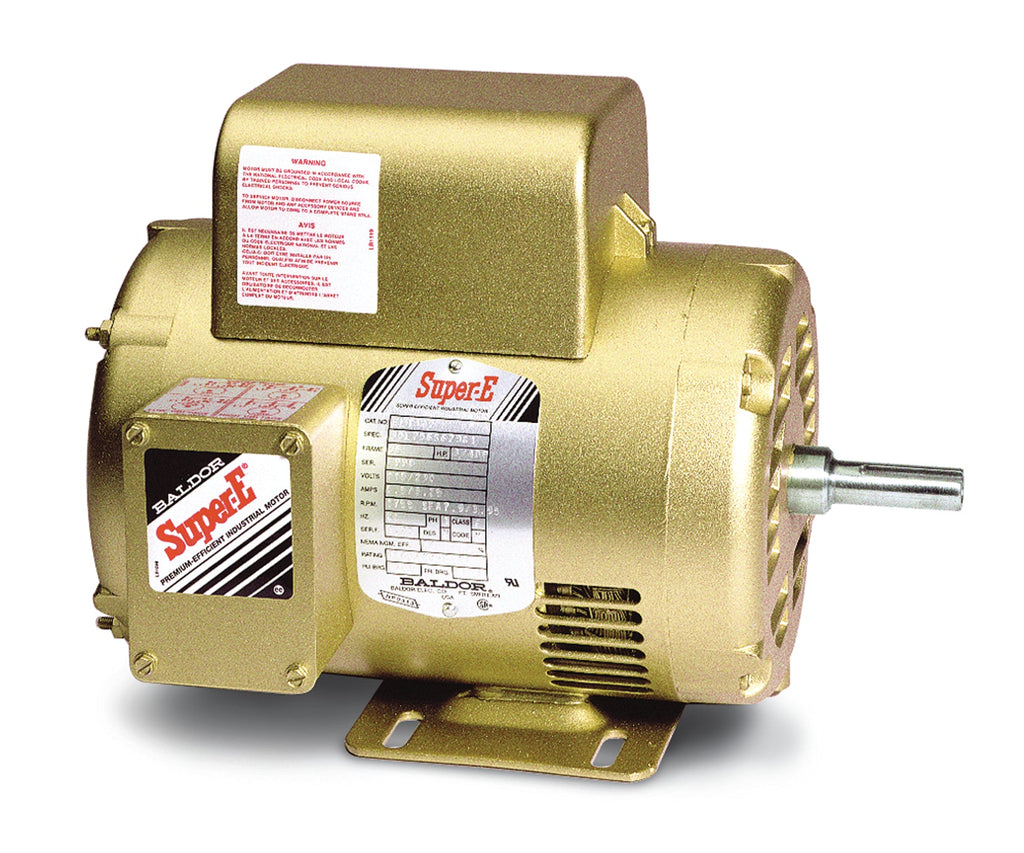

Baldor EL1319T - 1.5 HP Single Phase Open Motor

The Baldor EL1319T is a high-performance single-phase motor designed for a variety of applications. With a power output of 1.5 horsepower and a speed of 1725 RPM, this motor is ideal for driving pumps and other machinery that require reliable and efficient operation. It operates at 60Hz and features a 145T frame size, making it a versatile choice for both residential and commercial use.

Key Features:

  • Power: 1.5 HP
  • Speed: 1725 RPM
  • Phase: Single Phase
  • Frequency: 60Hz
  • Frame Size: 145T
  • Type: Open

As a trusted supplier, Pump-Stop is your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EL1319T to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568219683
Supplier Part Number EL1319T
Category AC Motors
Subcategory Single Phase Open
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 54.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EL1319T
Current @ Voltage 12.800 A @ 115.0 V, 5.800 A @ 230.0 V, 6.300 A @ 208.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 83.8 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPEN
Feedback Device NO FEEDBACK
Frame 145T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 5.8 a
Insulation Class F
Inverter Code Not Inverter
IP Rating NONE
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 7 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3536LC
Mounting Arrangement F1
Number of Poles 4
Output 1.500 hp
Output @ Frequency 1.500 HP @ 60 HZ
Overall Length 13.00 IN
Phase 1
Power Factor 90
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1750 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 208 V, 115 V, 230 V
Voltage @ Frequency 115.0 V @ 60 HZ, 208.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
