Baldor EL11319 - 1.5 HP, 1750RPM, 1 Phase, 60HZ, 56H, 3536LC, ODP, F1 60HZ Single Phase Single Phase 1.5 HP

Save $334.25
BaldorSKU: EL11319

Price:
Sale price$1,002.75 Regular price$1,337.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

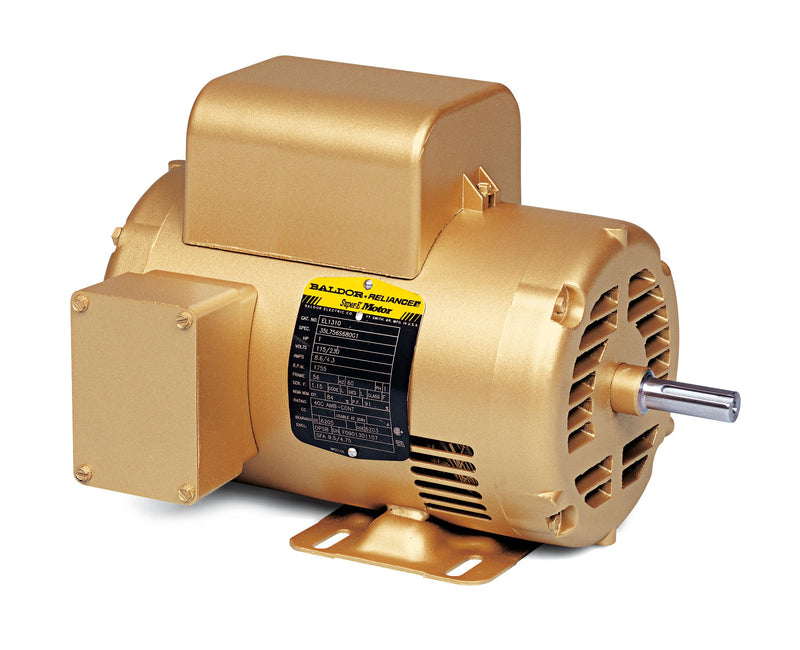

Baldor EL11319 - 1.5 HP Single Phase Open Motor

Upgrade your pumping system with the Baldor EL11319, a reliable and efficient 1.5 HP single phase open motor. Operating at 1750 RPM and designed for 60HZ applications, this motor is perfect for various pumping needs. With a 56H frame and ODP (Open Drip Proof) design, it ensures durability and performance in demanding environments.

Key Features:

  • Power: 1.5 HP
  • Speed: 1750 RPM
  • Phase: Single Phase
  • Frequency: 60HZ
  • Frame: 56H
  • Type: Open Drip Proof (ODP)
  • Product Code: EL11319

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, feel free to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EL11319 to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568735237
Supplier Part Number EL11319
Category AC Motors
Subcategory Single Phase Open
Product Family General Purpose
Agency Approvals CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 59.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EL11319
Current @ Voltage 12.800 A @ 115.0 V, 5.800 A @ 230.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 83.8 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 56H
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 5.8 a
Insulation Class F
Inverter Code Not Inverter
IP Rating NONE
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 7 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3536LC
Mounting Arrangement F1
Number of Poles 4
Output 1.500 hp
Output @ Frequency 1.500 HP @ 60 HZ
Overall Length 14.00 IN
Phase 1
Power Factor 90
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1750 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 115 V, 230 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
