Baldor EL11313A - 1.5 HP, 3480RPM, 1 Phase, 60HZ, 56H, 3532LC, Open, F 60HZ Single Phase Single Phase 1.5 HP

Save $276.75
BaldorSKU: EL11313A

Price:
Sale price$830.25 Regular price$1,107.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

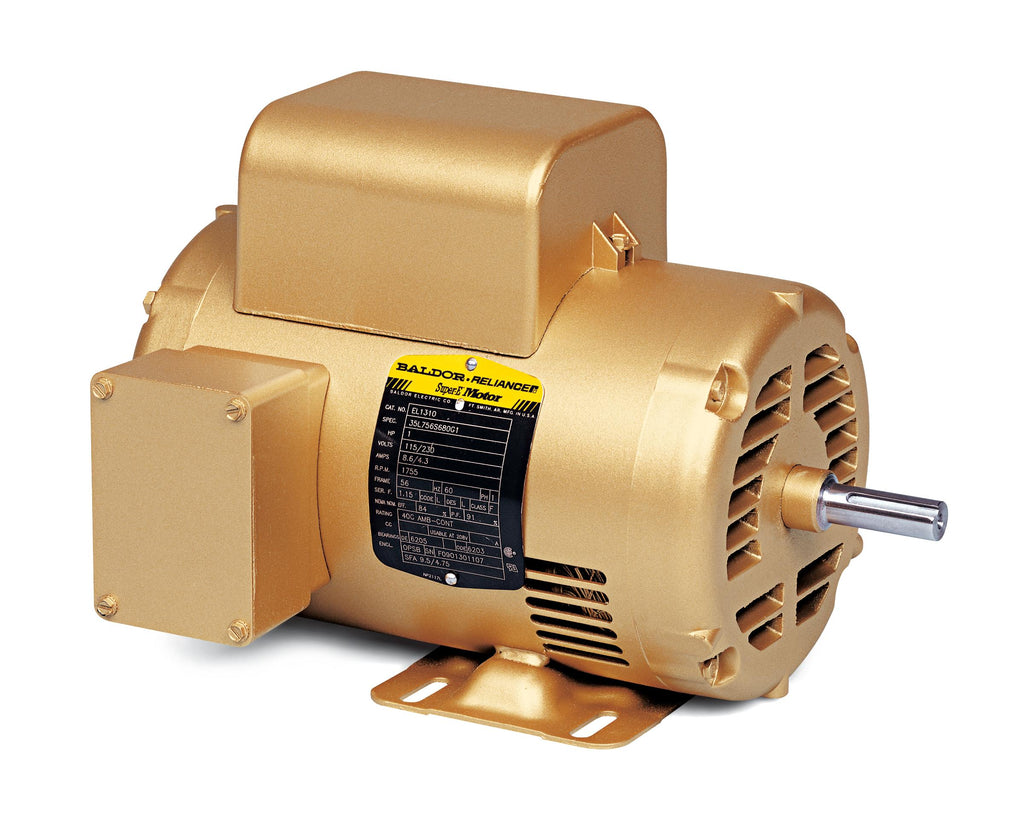

Baldor EL11313A - 1.5 HP Single Phase Open Motor

The Baldor EL11313A is a high-performance single-phase open motor designed for a variety of applications. With a robust 1.5 horsepower and a speed of 3480 RPM, this motor is ideal for powering pumps and other machinery that require reliable and efficient operation.

Specifications:

  • Power: 1.5 HP
  • Speed: 3480 RPM
  • Phase: Single Phase
  • Frequency: 60 Hz
  • Frame: 56H
  • Type: Open
  • Product Code: EL11313A

As a trusted vendor, Baldor ensures that this motor meets high standards of quality and performance, making it a reliable choice for your needs. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right components for your applications.

If you have questions or need assistance in finding the right pump, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EL11313A to ensure compatibility. Our team is here to help you with any inquiries or challenges you may face in selecting the right item.

UPC 781568775523
Supplier Part Number EL11313A
Category AC Motors
Subcategory Single Phase Open
Product Family General Purpose
Agency Approvals CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 52.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number EL11313A
Current @ Voltage 11.800 A @ 115.0 V, 5.900 A @ 230.0 V, 7.800 A @ 208.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 82.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPEN
Feedback Device NO FEEDBACK
Frame 56H
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 5.9 a
Insulation Class B
Inverter Code Not Inverter
KVA Code G
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3532LC
Mounting Arrangement F1
Number of Poles 2
Output 1.500 hp
Output @ Frequency 1.500 HP @ 60 HZ
Overall Length 12.63 IN
Phase 1
Power Factor 99
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3480 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Do Not Use Eve-Not Valiid
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 115 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location SB
Winding Thermal 2 None
