Baldor EL11313 - 1.5 HP, 3480RPM, 1 Phase, 60HZ, 56H, 3532LC, ODP, F1 60HZ Single Phase Single Phase 1.5 HP

Save $265.50
BaldorSKU: EL11313

Price:
Sale price$796.50 Regular price$1,062.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

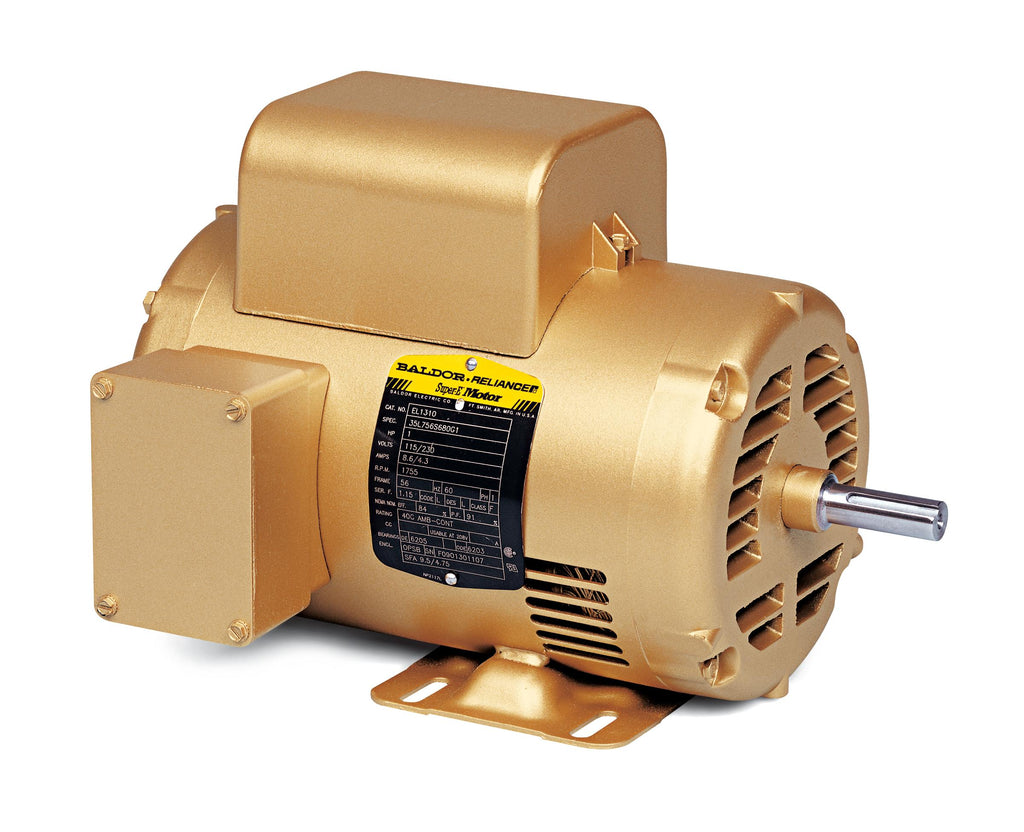

Baldor EL11313 - 1.5 HP Single Phase Open Motor

The Baldor EL11313 is a high-performance single-phase motor designed for a variety of applications. With a robust 1.5 horsepower and a speed of 3480 RPM, this motor is ideal for powering pumps and other equipment requiring reliable performance. It operates at 60Hz and features a 56H frame size, making it a versatile choice for both residential and commercial use.

Key Features:

  • Power: 1.5 HP
  • Speed: 3480 RPM
  • Phase: Single Phase
  • Frequency: 60Hz
  • Frame Size: 56H
  • Type: Open Drip Proof (ODP)
  • Product Code: EL11313

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EL11313 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568733806
Supplier Part Number EL11313
Category AC Motors
Subcategory Single Phase Open
Product Family General Purpose
Agency Approvals CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 52.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EL11313
Current @ Voltage 11.800 A @ 115.0 V, 5.900 A @ 230.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 82.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPEN
Feedback Device NO FEEDBACK
Frame 56H
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 5.9 a
Insulation Class F
Inverter Code Not Inverter
KVA Code G
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3532LC
Mounting Arrangement F1
Number of Poles 2
Output 1.500 hp
Output @ Frequency 1.500 HP @ 60 HZ
Overall Length 12.62 IN
Phase 1
Power Factor 99
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3480 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 115 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
