Baldor EL11303 - .5 HP, 3450RPM, 1 Phase, 60HZ, 56, 3413LC, ODP, F1, N 60HZ Single Phase Single Phase 5 HP

Save $190.50
BaldorSKU: EL11303

Price:
Sale price$571.50 Regular price$762.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

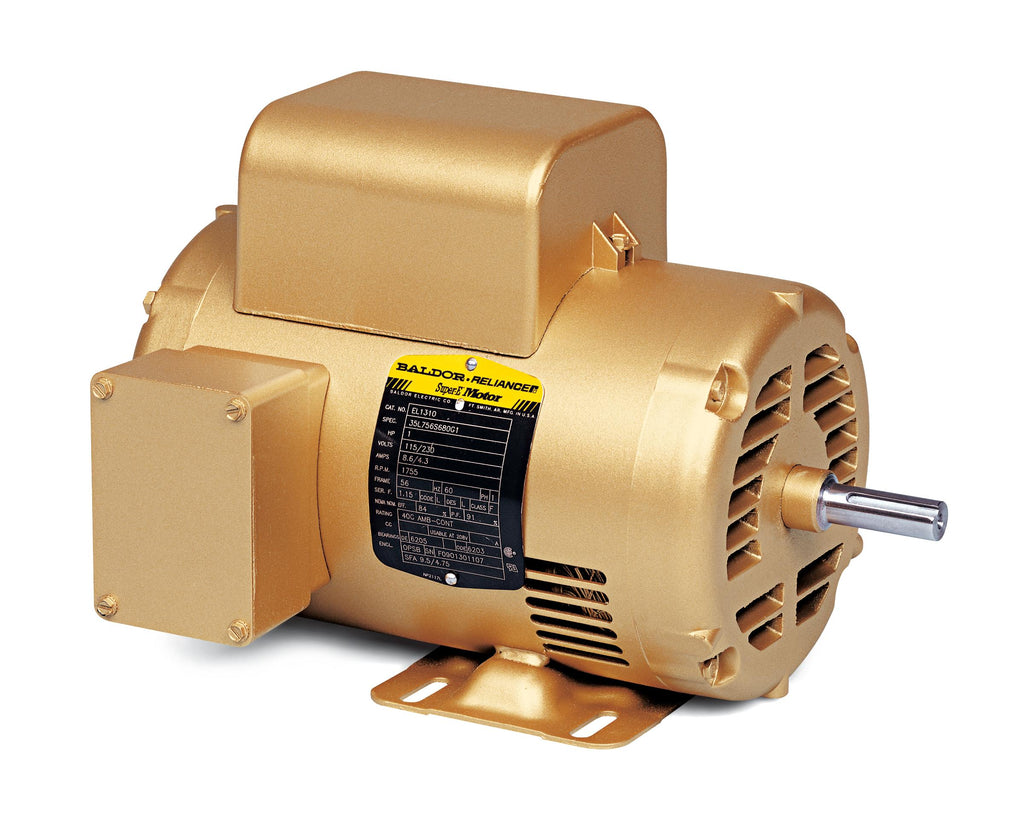

Baldor EL11303 - .5 HP Single Phase Open Motor

The Baldor EL11303 is a high-performance .5 HP single phase open motor designed for reliable operation in various applications. With a robust speed of 3450 RPM and a frequency of 60Hz, this motor is ideal for powering pumps and other equipment that require efficient and consistent performance.

Specifications:

  • Power: .5 HP
  • Speed: 3450 RPM
  • Phase: 1 Phase
  • Frequency: 60Hz
  • Frame: 56
  • Enclosure: Open Drip Proof (ODP)
  • Product Code: EL11303

As a trusted vendor, Baldor ensures that this motor meets high standards of quality and durability, making it a preferred choice for both residential and commercial applications. At Pump-Stop, we are your go-to source for replacement pumps and parts, ensuring you find the right solution for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EL11303 to ensure compatibility. Don't hesitate to reach out if you need help locating the right item!

UPC 781568733639
Supplier Part Number EL11303
Category AC Motors
Subcategory Single Phase Open
Product Family General Purpose
Agency Approvals CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 24.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EL11303
Current @ Voltage 2.500 A @ 230.0 V, 4.900 A @ 115.0 V
Design Code N
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 72.4 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.5 a
Insulation Class F
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3413LC
Mounting Arrangement F1
Number of Poles 2
Output 0.500 hp
Output @ Frequency .500 HP @ 60 HZ
Overall Length 10.13 IN
Phase 1
Power Factor 91
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 115 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
