Baldor EL11205 - .33 HP, 3475RPM, 1 Phase, 60HZ, 48, 3413LC, ODP, F1 60HZ Single Phase Single Phase 33 HP

Save $179.00
BaldorSKU: EL11205

Price:
Sale price$537.00 Regular price$716.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

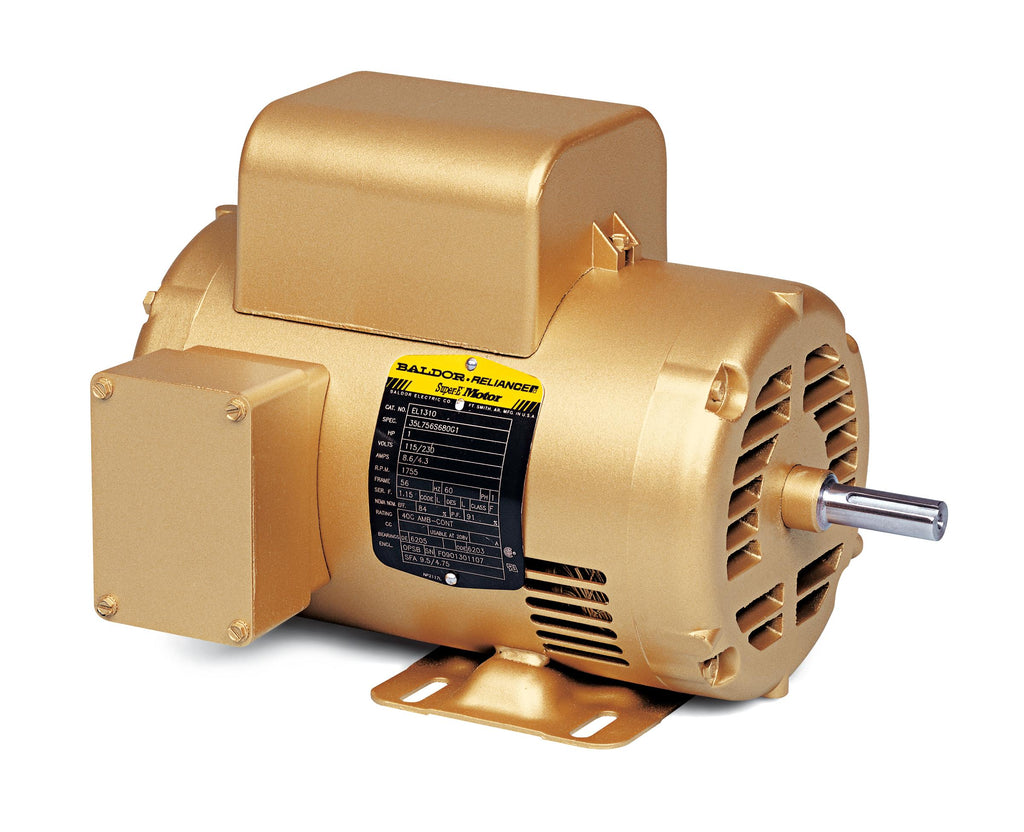

Baldor EL11205 - .33 HP Single Phase Open Motor

Discover the reliability and performance of the Baldor EL11205 motor, designed for a variety of applications. This .33 HP motor operates at 3475 RPM and is perfect for single-phase setups, making it an ideal choice for your pumping needs.

  • Power: .33 HP
  • Speed: 3475 RPM
  • Phase: 1 Phase
  • Frequency: 60 Hz
  • Frame Size: 48
  • Enclosure Type: Open Drip Proof (ODP)
  • Product Code: EL11205

This motor is categorized under AC Motors, specifically Baldor-Reliance Motors & Drives, and is suitable for various pump applications. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right fit for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EL11205 to ensure compatibility. Don’t hesitate to reach out if you need help!

UPC 781568737200
Supplier Part Number EL11205
Category AC Motors
Subcategory Single Phase Open
Product Family General Purpose
Agency Approvals CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 24.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EL11205
Current @ Voltage 1.500 A @ 230.0 V, 3.000 A @ 115.0 V
Design Code N
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 70.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 48
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.5 a
Insulation Class F
Inverter Code Not Inverter
KVA Code H
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3413LC
Mounting Arrangement F1
Number of Poles 2
Output 0.330 hp
Output @ Frequency .330 HP @ 60 HZ
Overall Length 9.76 IN
Phase 1
Power Factor 97
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.35
Shaft Diameter 0.500 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3475 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 115 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
