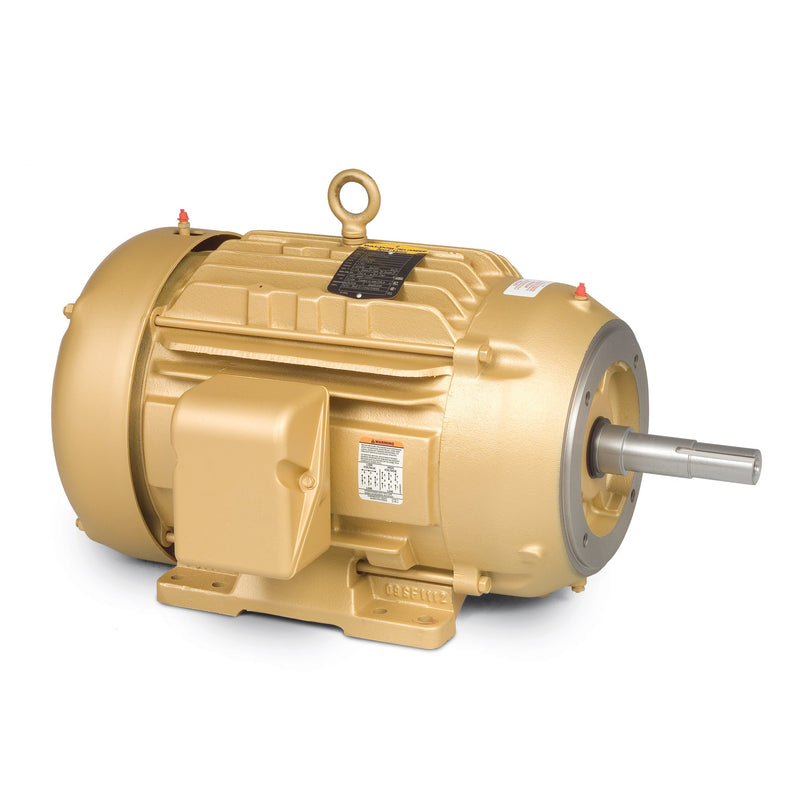

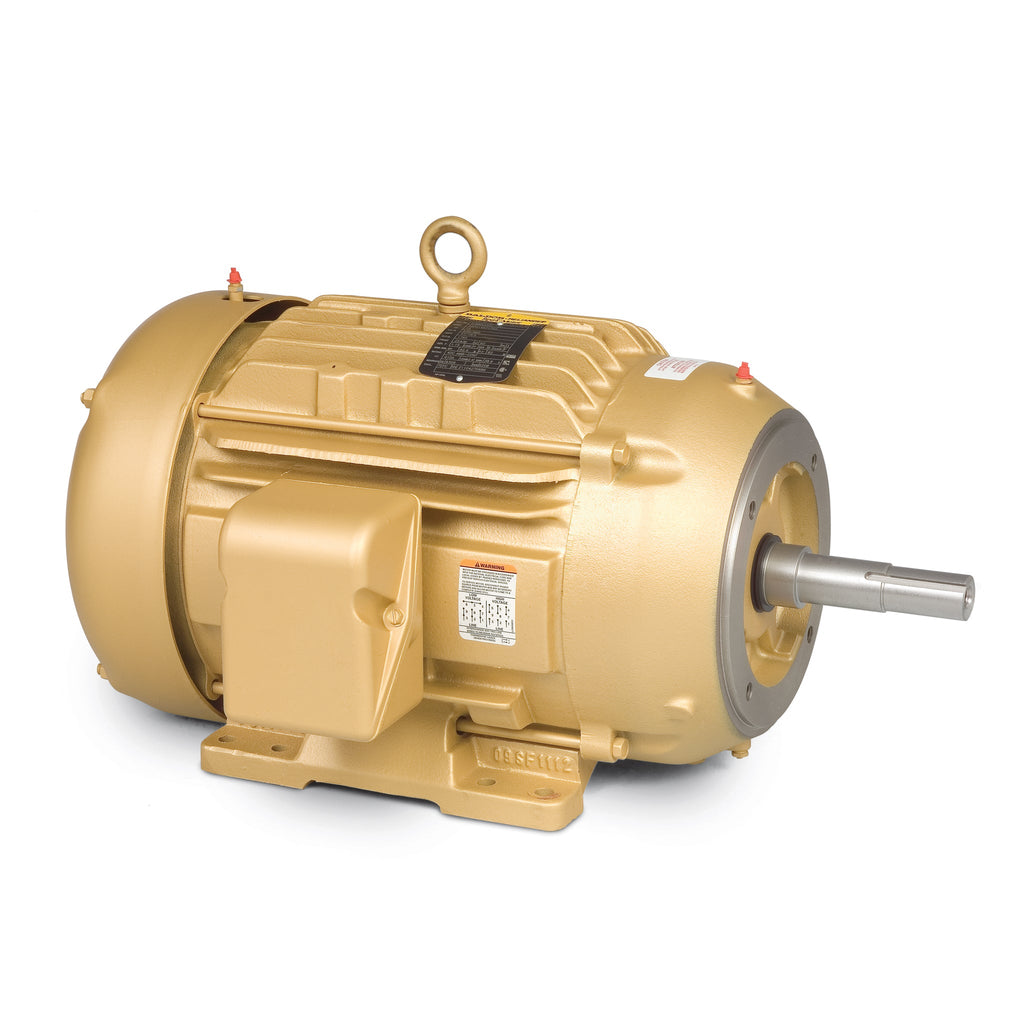

Baldor EJPM4109T - 40 HP, 3530RPM, 3 Phase, 60HZ, 324JP, 1058M, TEFC, F 60HZ Three Phase 40 HP 1058 M Cable

Save $2,535.50
BaldorSKU: EJPM4109T

Price:
Sale price$7,606.50 Regular price$10,142.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor EJPM4109T - 40 HP Close Coupled Motor

Introducing the Baldor EJPM4109T, a high-performance 40 HP, 3530 RPM, 3-phase motor designed for reliability and efficiency in various industrial applications. This TEFC (Totally Enclosed Fan Cooled) motor is built to withstand harsh environments while delivering optimal performance. With a frequency of 60Hz and a frame size of 324JP, this motor is ideal for close-coupled pump applications.

Key Features:

  • Power: 40 HP
  • Speed: 3530 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 324JP
  • TEFC Design for enhanced durability
  • Product Code: EJPM4109T

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EJPM4109T to ensure compatibility. If you encounter any difficulties, our knowledgeable team is here to help you find the perfect solution.

UPC 781568479834
Supplier Part Number EJPM4109T
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 498.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EJPM4109T
Current @ Voltage 45.000 A @ 460.0 V, 90.000 A @ 230.0 V, 100.000 A @ 208.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 92.4 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 324JP
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 45.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 8 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1058M
Mounting Arrangement F1
Number of Poles 2
Output 40.000 hp
Output @ Frequency 40.000 HP @ 60 HZ
Overall Length 33.56 IN
Phase 3
Power Factor 90
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.250 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3530 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
