Baldor EJPM3313T - 10 HP, 1770RPM, 3 Phase, 60HZ, 215JP, 3742M, Opsb, F 60HZ Three Phase 10 HP 3742 M Cable

Save $699.00
BaldorSKU: EJPM3313T

Price:
Sale price$2,097.00 Regular price$2,796.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

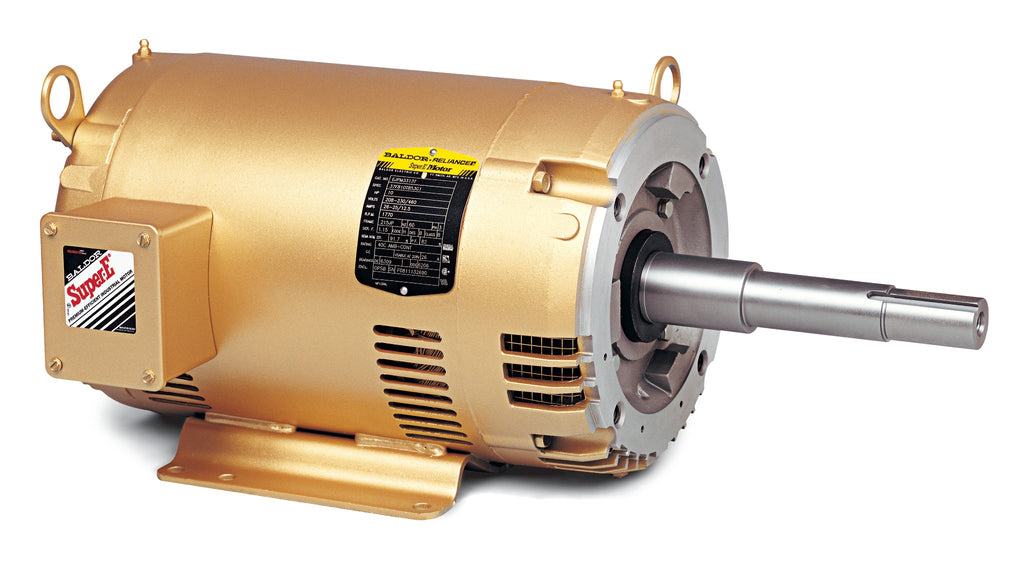

Baldor EJPM3313T - 10 HP Close Coupled Motor

Introducing the Baldor EJPM3313T, a high-performance 10 HP, 1770 RPM, 3-phase motor designed for reliable operation in various industrial applications. This motor operates at 60Hz and features a 215JP frame, making it an ideal choice for close-coupled pump systems.

Key Features:

  • Power: 10 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 215JP
  • Product Code: EJPM3313T

The Baldor EJPM3313T is part of the JM, JP, and WCP Close Coupled Motors series, known for their durability and efficiency. Whether you are replacing an existing motor or upgrading your system, this motor is engineered to meet your needs.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EJPM3313T. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568479186
Supplier Part Number EJPM3313T
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 138.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EJPM3313T
Current @ Voltage 25.000 A @ 230.0 V, 26.000 A @ 208.0 V, 12.500 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.7 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 215JP
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 12.5 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3742M
Mounting Arrangement F1
Number of Poles 4
Output 10.000 hp
Output @ Frequency 10.000 HP @ 60 HZ
Overall Length 23.20 IN
Phase 3
Power Factor 82
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen Included
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 1.250 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
