Baldor EJPM2538T - 40 HP, 3510RPM, 3 Phase, 60HZ, 286JP, 3956M, Opsb, F 60HZ Three Phase 40 HP 3956 M Cable

Save $2,157.50
BaldorSKU: EJPM2538T

Price:
Sale price$6,472.50 Regular price$8,630.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

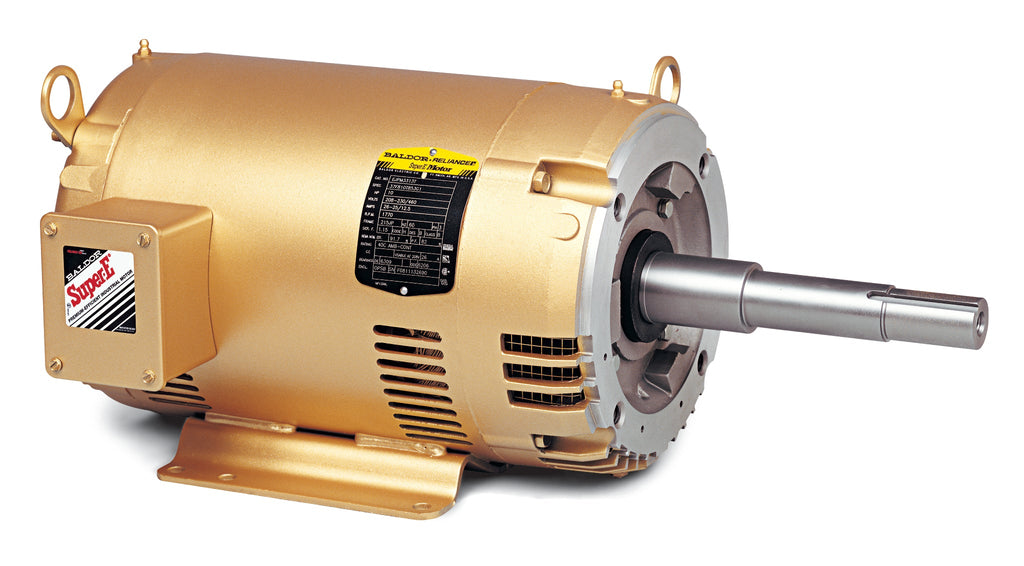

Baldor EJPM2538T - 40 HP Close Coupled Motor

Introducing the Baldor EJPM2538T, a high-performance 40 HP, 3510 RPM, 3-phase motor designed for reliable operation in various industrial applications. This motor operates at 60Hz and features a 286JP frame, making it an ideal choice for close-coupled pump systems.

Key Features:

  • Power: 40 HP
  • Speed: 3510 RPM
  • Phase: 3-Phase
  • Frequency: 60Hz
  • Frame Size: 286JP
  • Product Code: EJPM2538T

The Baldor EJPM2538T is part of the JM, JP, and WCP Close Coupled Motors series, known for their durability and efficiency. Whether you are replacing an existing motor or upgrading your system, this motor is engineered to meet your needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EJPM2538T. Our team is here to help you find the perfect solution for your pumping needs.

UPC 781568485873
Supplier Part Number EJPM2538T
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 329.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EJPM2538T
Current @ Voltage 90.000 A @ 230.0 V, 99.000 A @ 208.0 V, 45.000 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 92.4 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 286JP
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 45.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 8 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3956M
Mounting Arrangement F1
Number of Poles 2
Output 40.000 hp
Output @ Frequency 40.000 HP @ 60 HZ
Overall Length 29.44 IN
Phase 3
Power Factor 90
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen Included
Service Factor 1.15
Shaft Diameter 1.750 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3510 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
