Baldor EJPM2535T - 30 HP, 1775RPM, 3 Phase, 60HZ, 286JP, 4060M, Opsb, F 60HZ Three Phase 30 HP 4060 M Cable

Save $1,777.50
BaldorSKU: EJPM2535T

Price:
Sale price$5,332.50 Regular price$7,110.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

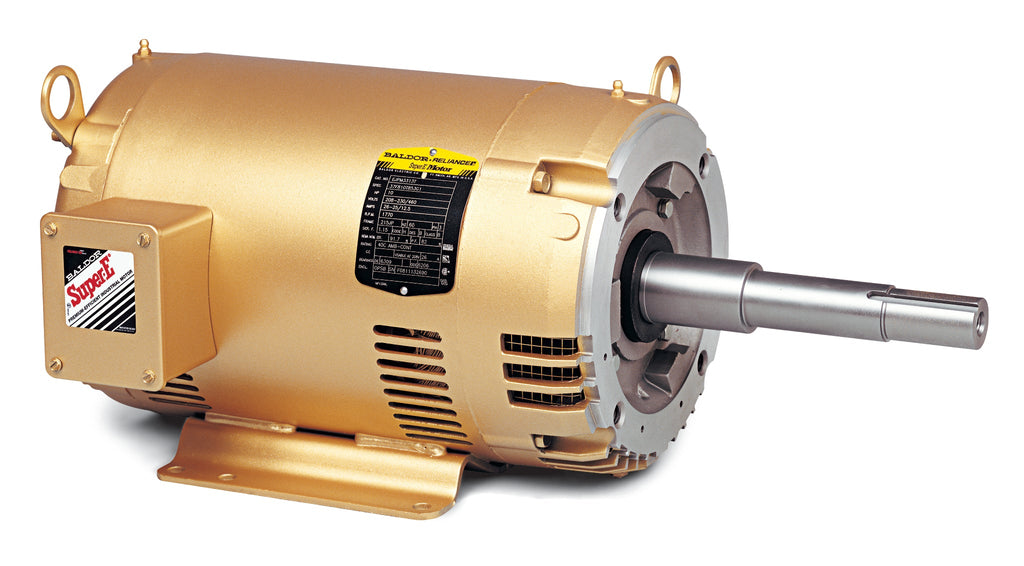

Baldor EJPM2535T - 30 HP Close Coupled Motor

Introducing the Baldor EJPM2535T, a high-performance 30 HP, 1775 RPM, 3-phase motor designed for reliable operation in various industrial applications. This motor operates at 60Hz and features a robust 286JP frame, making it an ideal choice for close-coupled pump systems.

Key Features:

  • Power: 30 HP
  • Speed: 1775 RPM
  • Phase: 3-Phase
  • Frequency: 60Hz
  • Frame: 286JP
  • Type: JM, JP, WCP Close Coupled Motors

As a trusted vendor, Baldor ensures that this motor meets high standards of quality and performance, making it a reliable choice for your pumping needs. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your application.

If you have questions or need assistance in finding the right pump, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EJPM2535T to ensure compatibility. Our team is here to help you with any inquiries you may have.

UPC 781568479421
Supplier Part Number EJPM2535T
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals NEMA_PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 370.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EJPM2535T
Current @ Voltage 37.000 A @ 460.0 V, 74.000 A @ 230.0 V, 77.000 A @ 208.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.1 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 286JP
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
High Voltage Full Load Amps 37.0 a
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 8 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 4060M
Mounting Arrangement F1
Number of Poles 4
Output 30.000 hp
Output @ Frequency 30.000 HP @ 60 HZ
Overall Length 29.81 IN
Phase 3
Power Factor 80
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen Included
Service Factor 1.15
Shaft Diameter 1.750 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1775 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
