Baldor EJPM2531T - 25 HP, 1775RPM, 3 Phase, 60HZ, 284JP, 4050M, Opsb, F 60HZ Three Phase 25 HP 4050 M Cable

Save $1,473.00
BaldorSKU: EJPM2531T

Price:
Sale price$4,419.00 Regular price$5,892.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

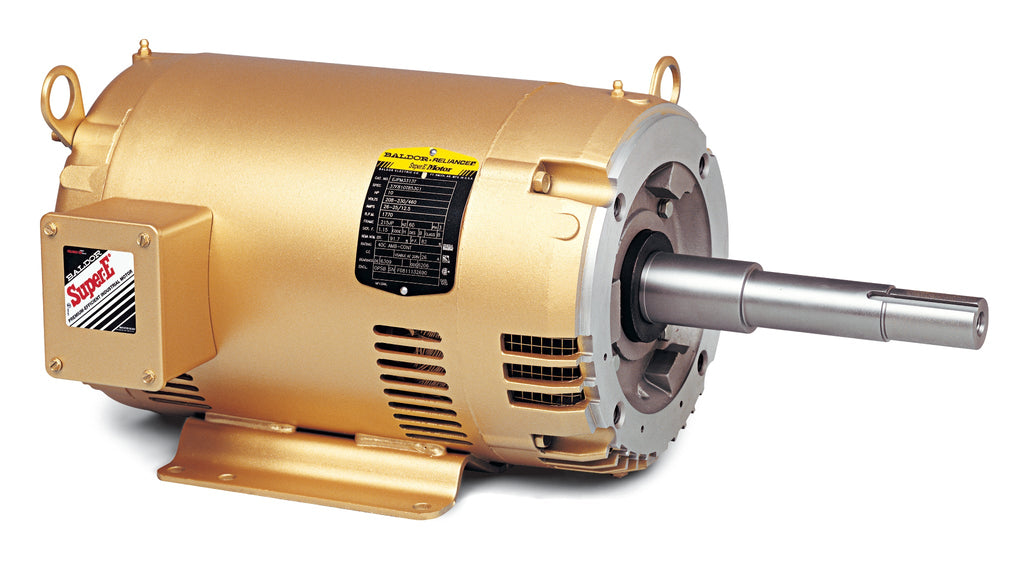

Baldor EJPM2531T - 25 HP Close Coupled Motor

Introducing the Baldor EJPM2531T, a high-performance 25 HP, 1775 RPM, 3-phase motor designed for reliable operation in various industrial applications. This motor operates at 60Hz and features a 284JP frame, making it an ideal choice for close-coupled pump systems.

Key Features:

  • Power: 25 HP
  • Speed: 1775 RPM
  • Phase: 3-Phase
  • Frequency: 60Hz
  • Frame Size: 284JP
  • Model: EJPM2531T

The Baldor EJPM2531T is part of the JM, JP, and WCP Close Coupled Motors series, known for their durability and efficiency. Whether you are replacing an existing motor or upgrading your system, this motor is engineered to meet your needs.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EJPM2531T to ensure compatibility. Don’t hesitate to reach out if you need help finding the right item!

UPC 781568479797
Supplier Part Number EJPM2531T
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals NEMA_PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 335.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EJPM2531T
Current @ Voltage 30.000 A @ 460.0 V, 60.000 A @ 230.0 V, 64.000 A @ 208.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.6 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 284JP
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
High Voltage Full Load Amps 30.0 a
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code G
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 10 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 4050M
Mounting Arrangement F1
Number of Poles 4
Output 25.000 hp
Output @ Frequency 25.000 HP @ 60 HZ
Overall Length 28.81 IN
Phase 3
Power Factor 82
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen Included
Service Factor 1.15
Shaft Diameter 1.750 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1775 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
