Baldor EJPM2514T - 20 HP, 3510RPM, 3 Phase, 60HZ, 254JP, 3928M, Opsb, F 60HZ Three Phase 20 HP 3928 M Cable

Save $1,149.75
BaldorSKU: EJPM2514T

Price:
Sale price$3,449.25 Regular price$4,599.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

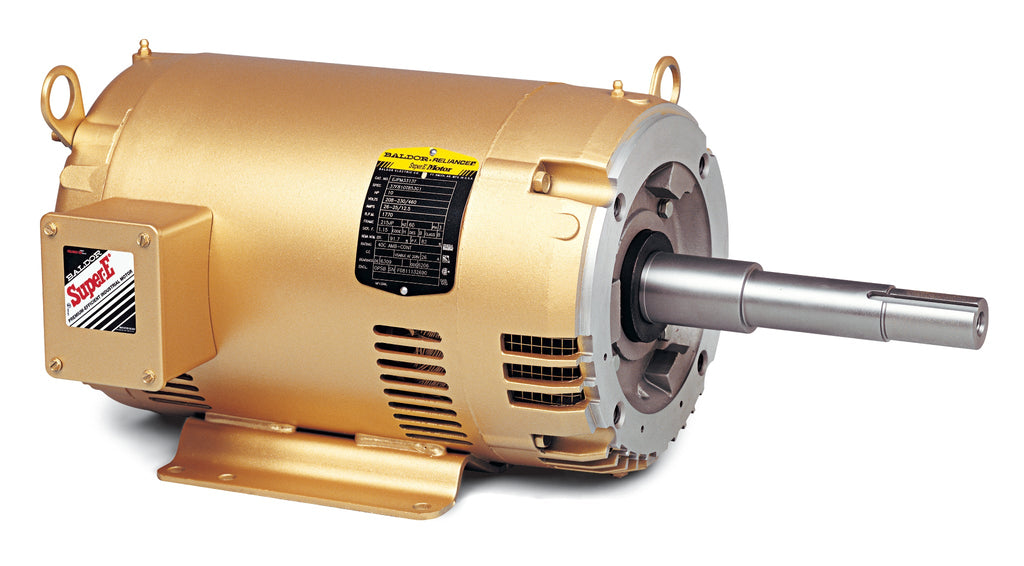

Baldor EJPM2514T - 20 HP Close Coupled Motor

Introducing the Baldor EJPM2514T, a high-performance 20 HP close coupled motor designed for reliable operation in various industrial applications. With a robust speed of 3510 RPM and a three-phase power supply at 60Hz, this motor is engineered to deliver exceptional efficiency and durability.

Specifications:

  • Power: 20 HP
  • Speed: 3510 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame: 254JP
  • Enclosure: 3928M
  • Type: JM, JP, WCP Close Coupled Motors
  • Product Code: EJPM2514T

This Baldor-Reliance motor is ideal for applications requiring a compact and efficient solution, making it a perfect fit for pump systems. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right components for your needs.

For assistance, please check your current pump for the exact part number or SKU that matches the Baldor EJPM2514T. If you have any questions or need help finding the right item, don’t hesitate to call us at (781) 281-8905.

UPC 781568479773
Supplier Part Number EJPM2514T
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 185.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EJPM2514T
Current @ Voltage 47.000 A @ 230.0 V, 50.000 A @ 208.0 V, 23.500 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 254JP
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 23.5 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code G
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 10 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3928M
Mounting Arrangement F1
Number of Poles 2
Output 20.000 hp
Output @ Frequency 20.000 HP @ 60 HZ
Overall Length 26.06 IN
Phase 3
Power Factor 88
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen Included
Service Factor 1.15
Shaft Diameter 1.750 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3510 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
