Baldor EJPM2394T - 15 HP, 3525RPM, 3 Phase, 60HZ, 254JP, 0930M, TEFC, F 60HZ Three Phase 15 HP 0930 M Cable

Save $1,331.25
BaldorSKU: EJPM2394T

Price:
Sale price$3,993.75 Regular price$5,325.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

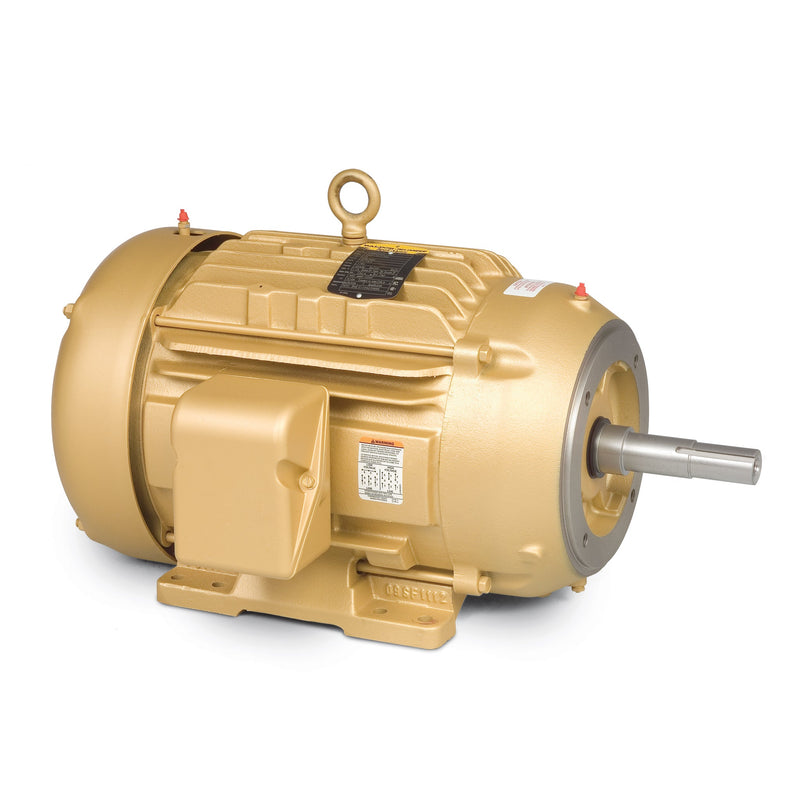

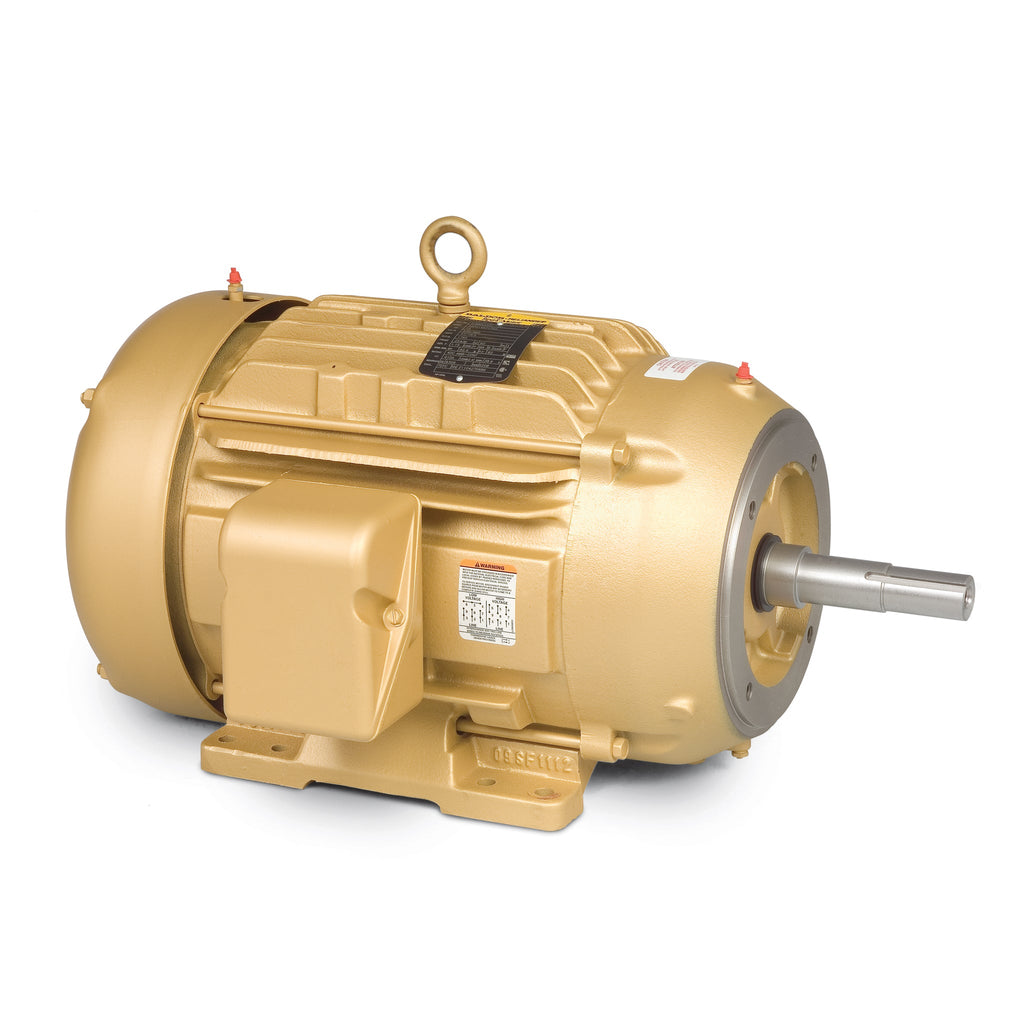

Baldor EJPM2394T - 15 HP Close Coupled Motor

Introducing the Baldor EJPM2394T, a high-performance 15 HP close coupled motor designed for reliable operation in various industrial applications. With a robust speed of 3525 RPM and a three-phase power supply at 60Hz, this motor is engineered to deliver exceptional efficiency and durability.

Key Features:

  • Power: 15 HP
  • Speed: 3525 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 254JP
  • TEFC (Totally Enclosed Fan Cooled) design for enhanced protection
  • Product Code: EJPM2394T

This Baldor-Reliance motor is ideal for applications requiring a reliable and efficient power source, making it a perfect choice for pump systems and other machinery. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EJPM2394T to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568479766
Supplier Part Number EJPM2394T
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 260.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EJPM2394T
Current @ Voltage 36.000 A @ 230.0 V, 38.000 A @ 208.0 V, 18.000 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 254JP
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 18.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0930M
Mounting Arrangement F1
Number of Poles 2
Output 15.000 hp
Output @ Frequency 15.000 HP @ 60 HZ
Overall Length 28.24 IN
Phase 3
Power Factor 86
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 1.750 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3525 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
