Baldor EJPM2334T - 20 HP, 1770RPM, 3 Phase, 60HZ, 256JP, 0960M, TEFC, F 60HZ Three Phase 20 HP 0960 M Cable

Save $1,445.00
BaldorSKU: EJPM2334T

Price:
Sale price$4,335.00 Regular price$5,780.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

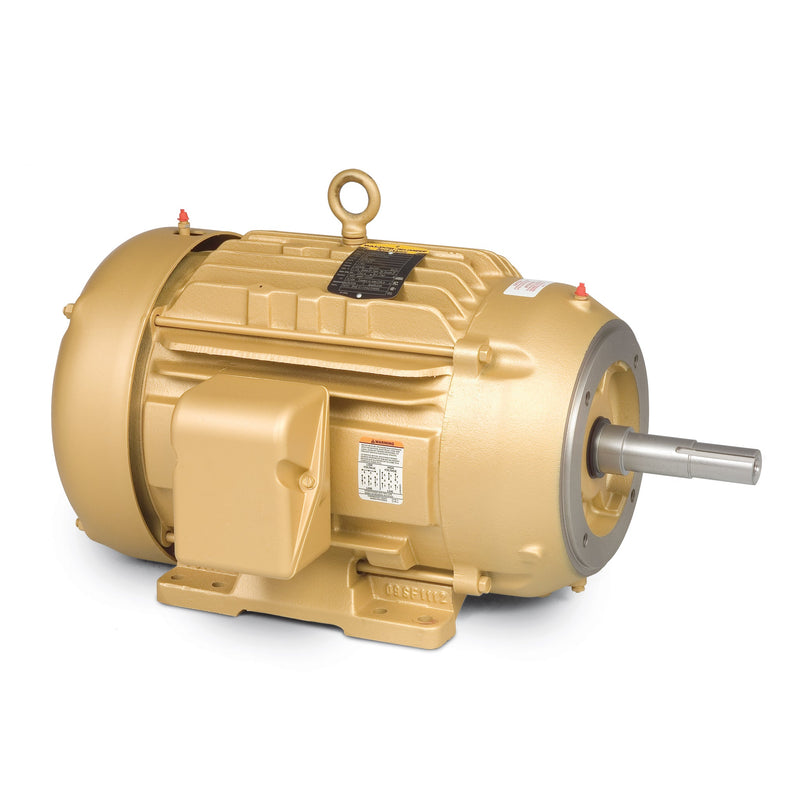

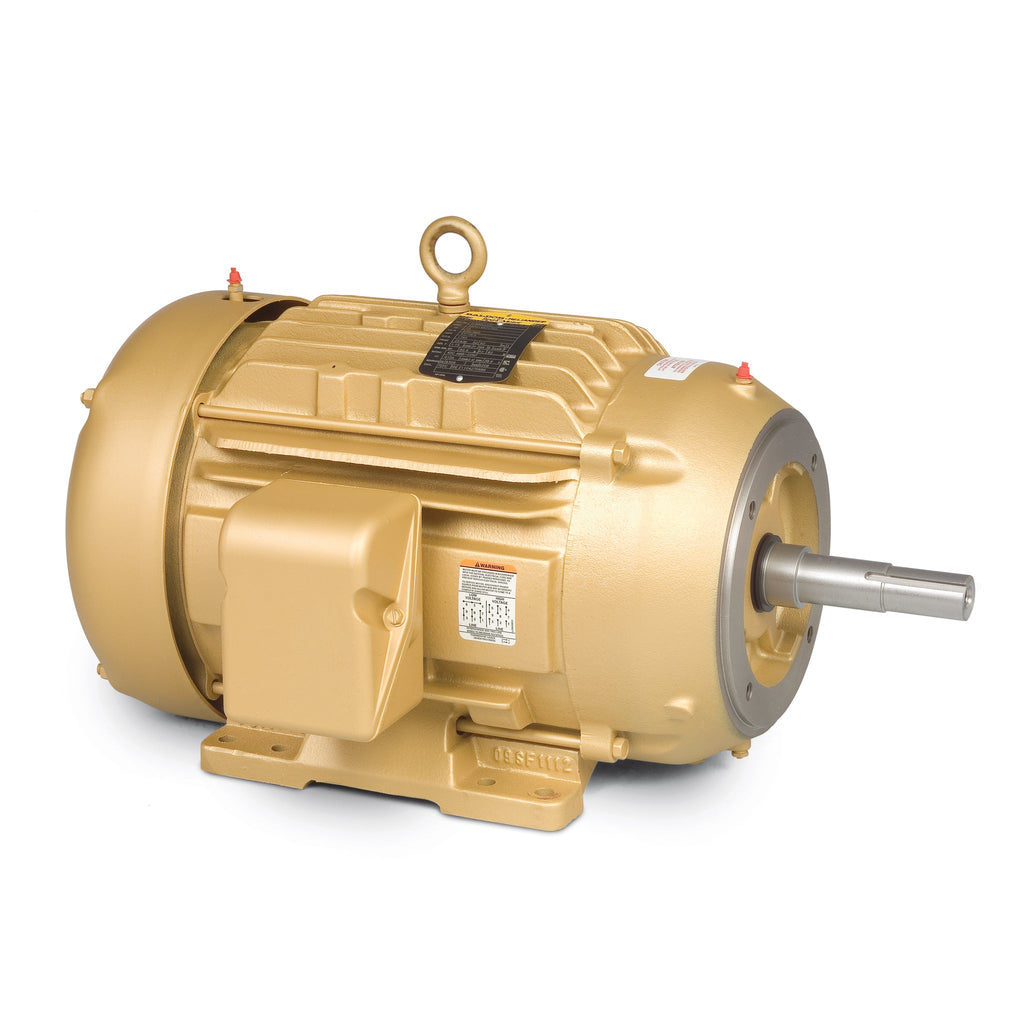

Baldor EJPM2334T - 20 HP Close Coupled Motor

Introducing the Baldor EJPM2334T, a high-performance 20 HP, 1770 RPM, 3-phase motor designed for reliable operation in various industrial applications. This TEFC (Totally Enclosed Fan Cooled) motor is engineered to withstand harsh environments while delivering optimal efficiency and durability.

Specifications:

  • Power: 20 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame: 256JP
  • Model: 0960M
  • Type: JM, JP, WCP Close Coupled Motors

This Baldor-Reliance motor is ideal for pump applications, ensuring efficient performance and longevity. At Pump-Stop, we are your preferred source for replacement pumps and parts, providing you with the best solutions for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EJPM2334T to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568479391
Supplier Part Number EJPM2334T
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA PREMIUM, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 300.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EJPM2334T
Current @ Voltage 52.000 A @ 208.0 V, 48.000 A @ 230.0 V, 24.000 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 256JP
Frame Material Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 24.0 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 10 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0960M
Mounting Arrangement F1
Number of Poles 4
Output 20.000 hp
Output @ Frequency 20.000 HP @ 60 HZ
Overall Length 28.24 IN
Phase 3
Power Factor 83
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 1.250 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
